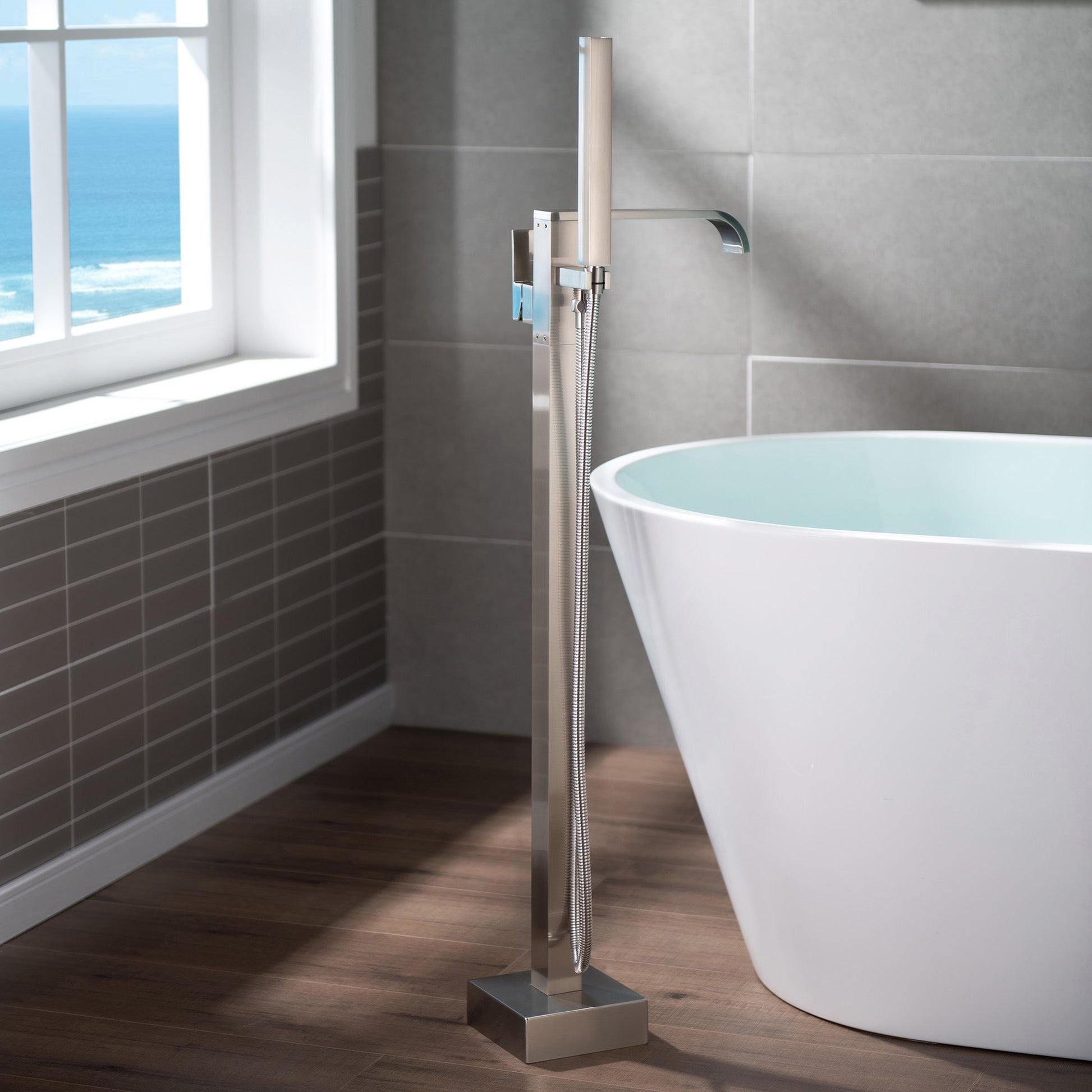

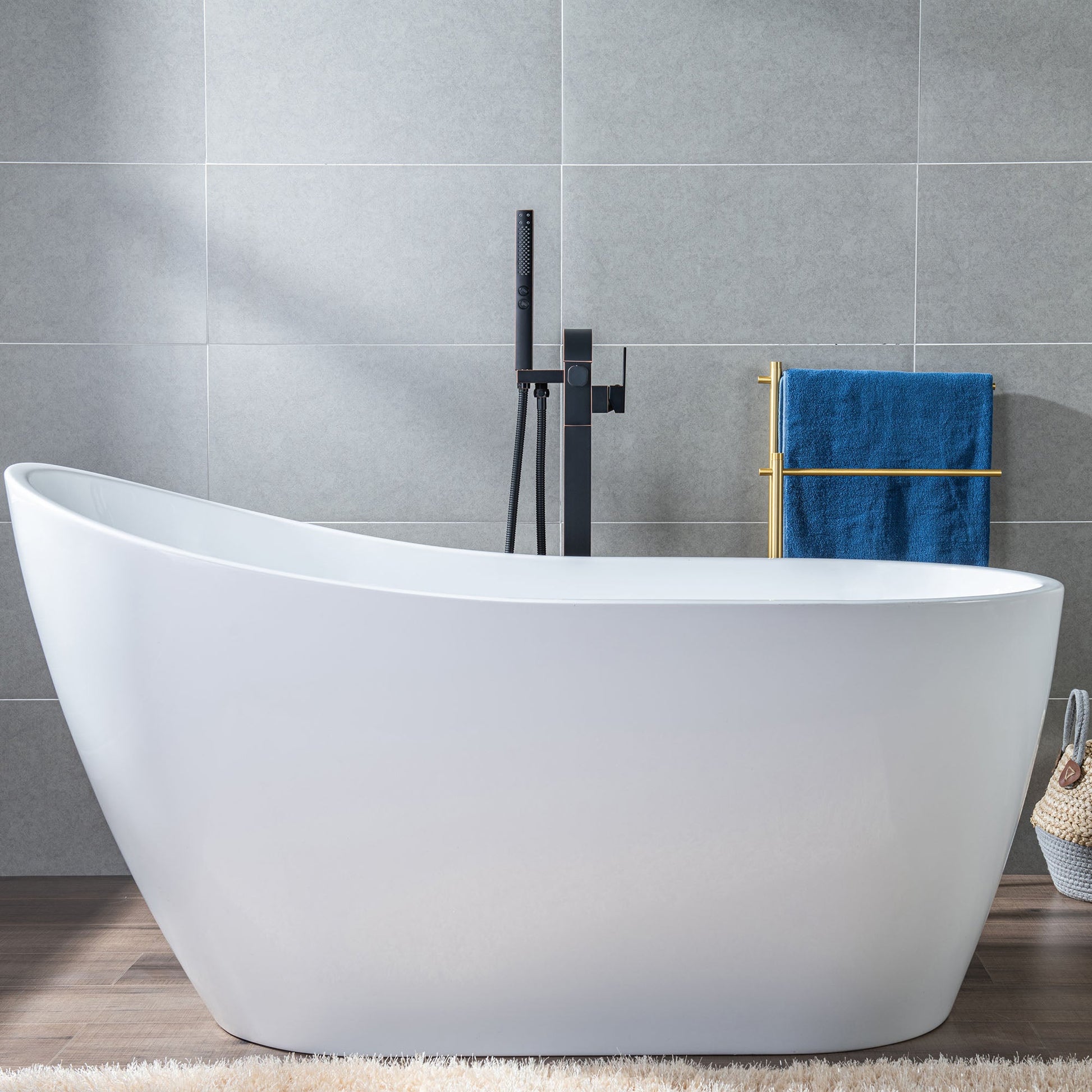

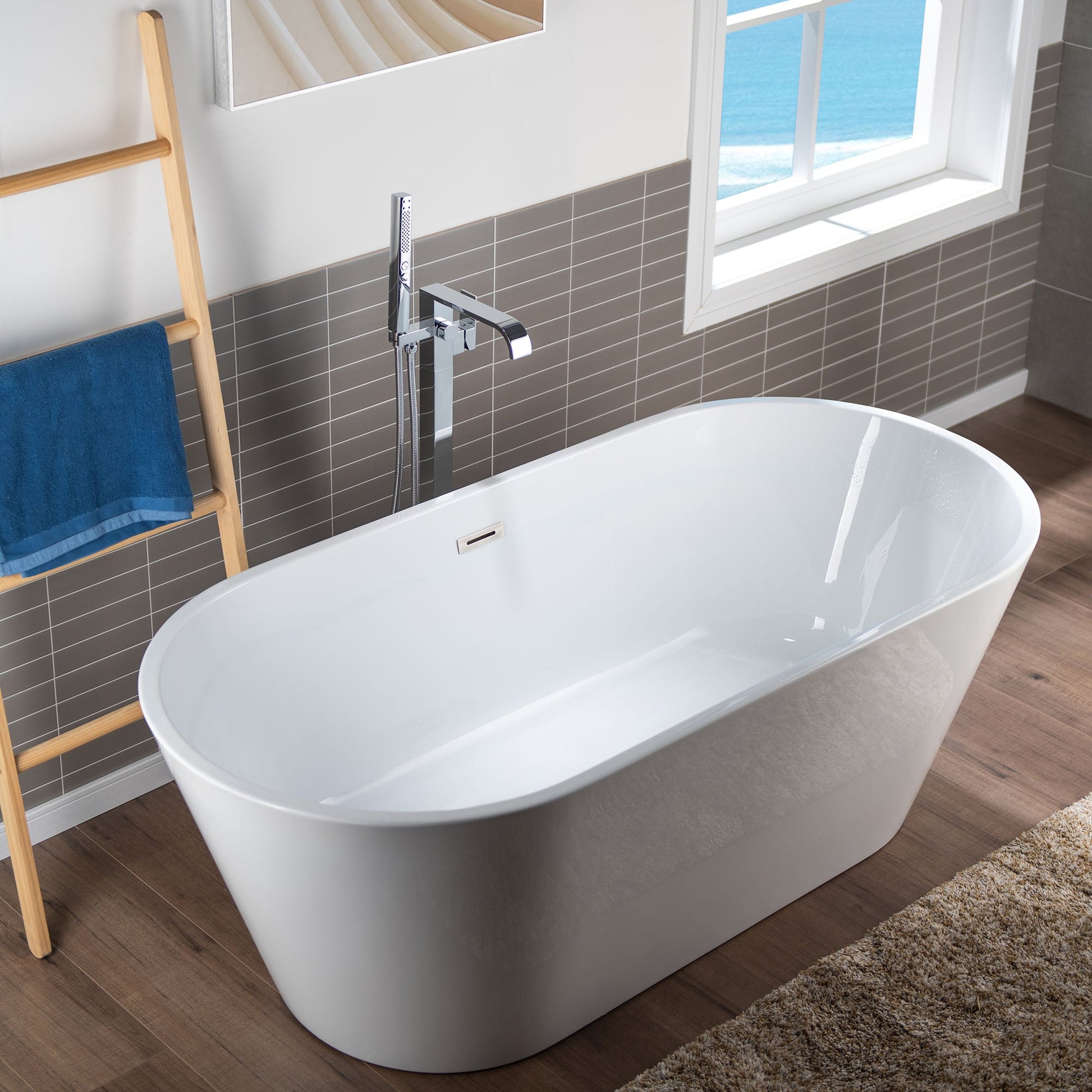

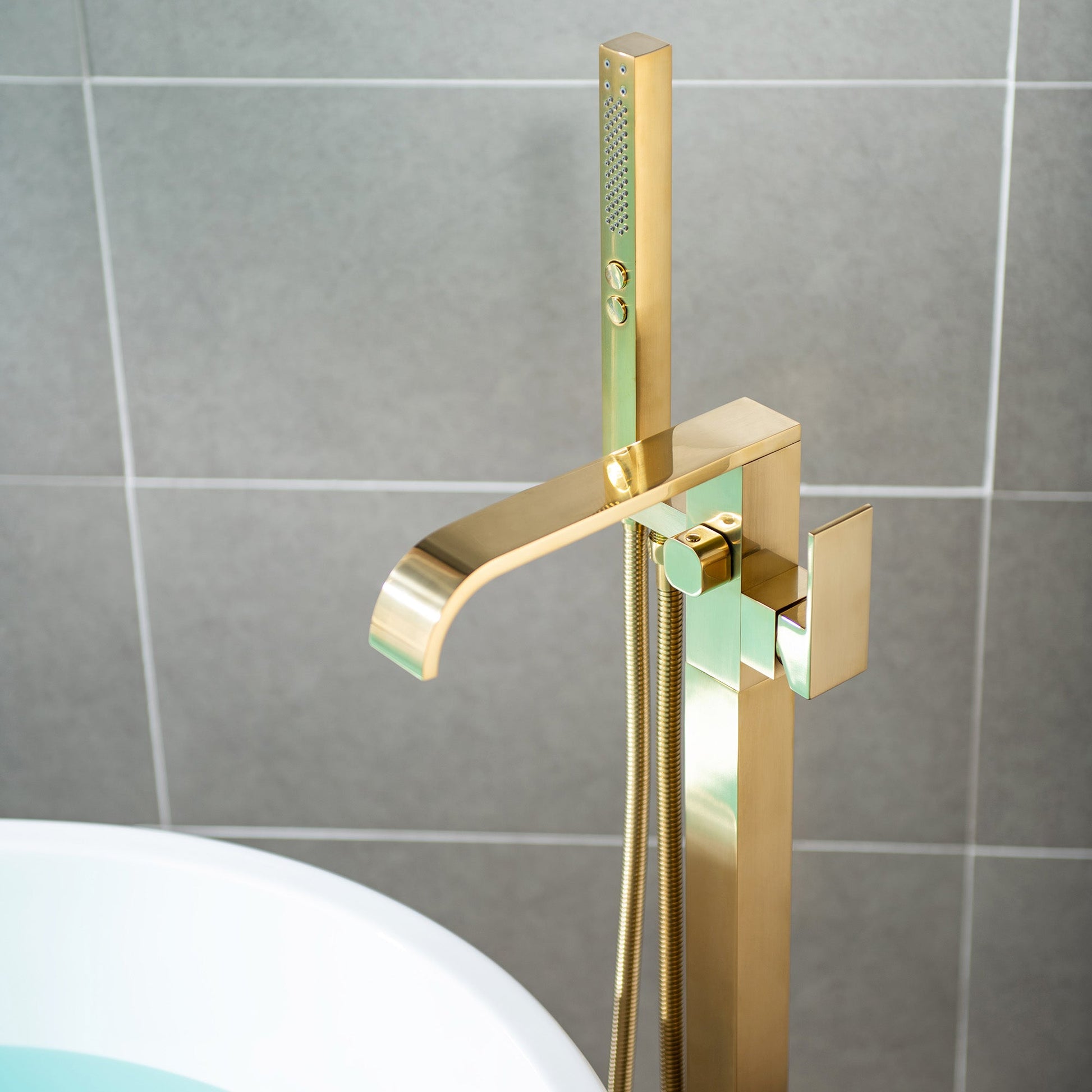

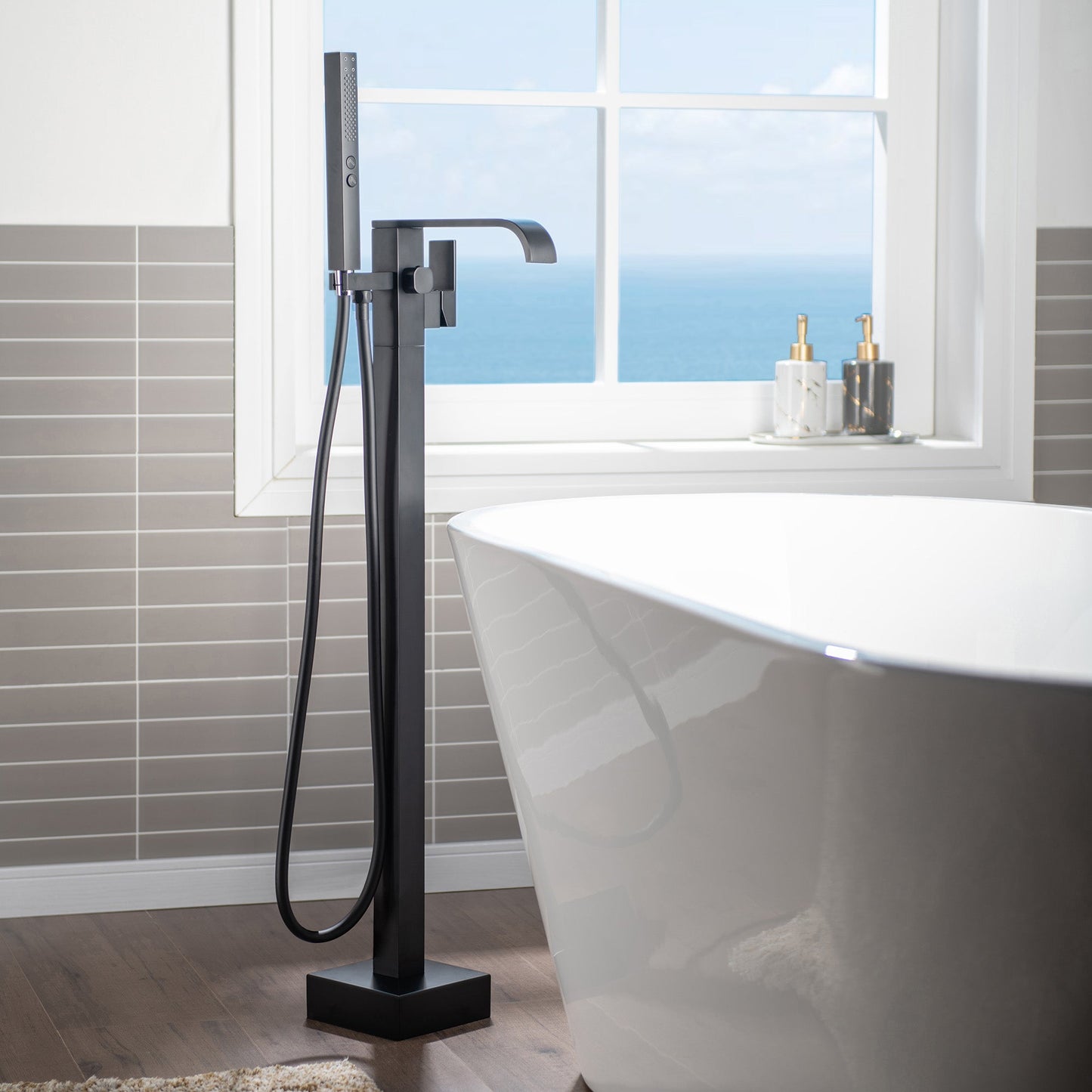

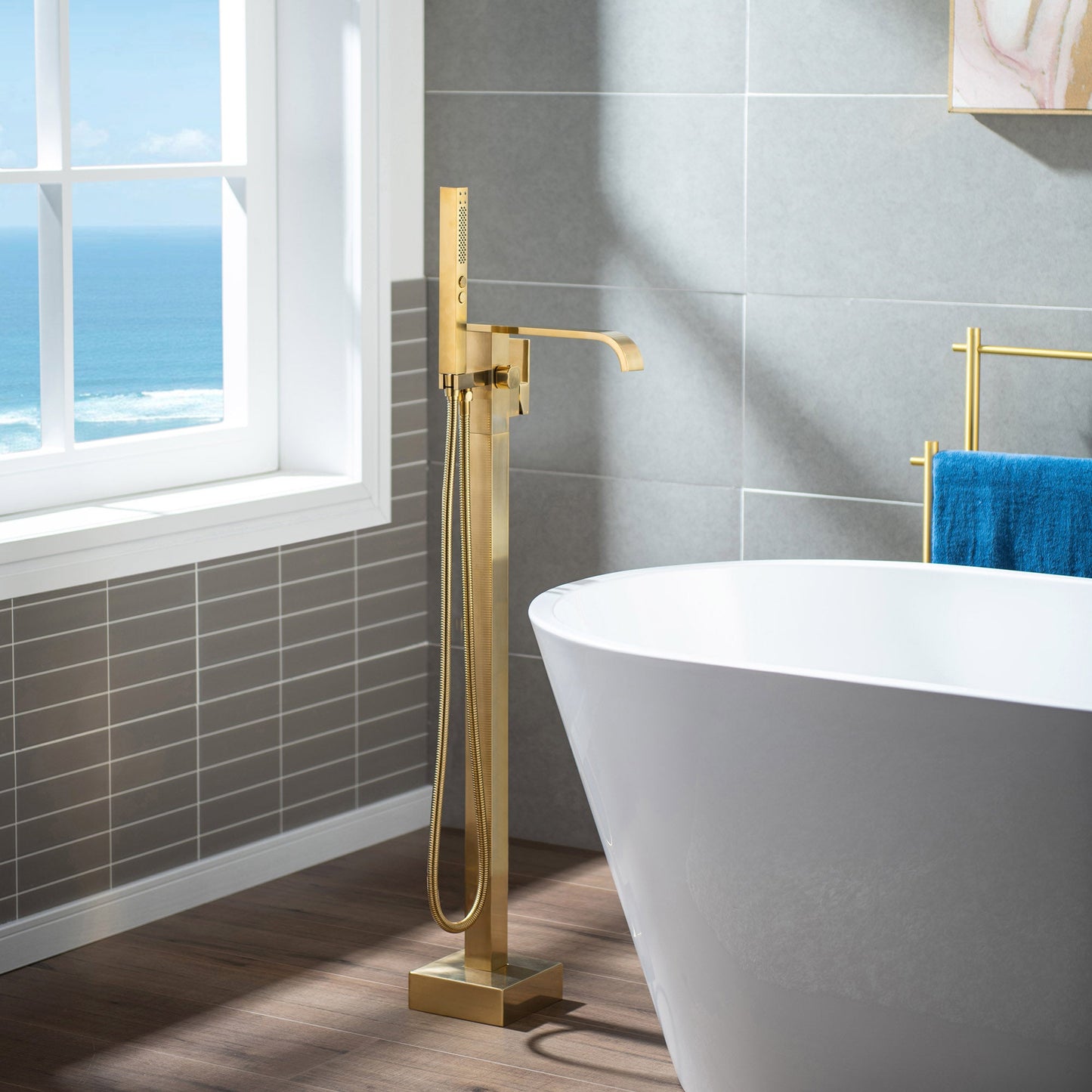

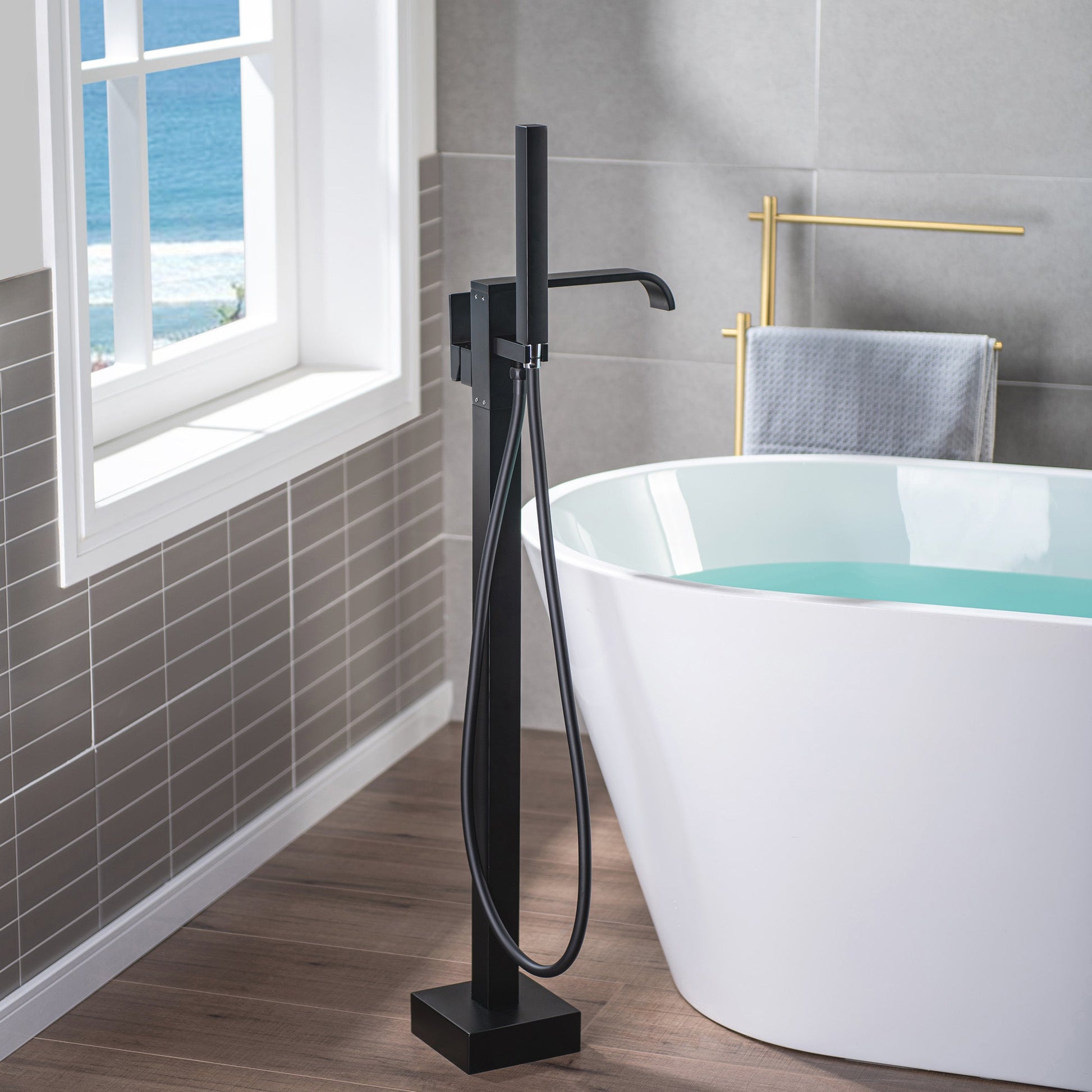

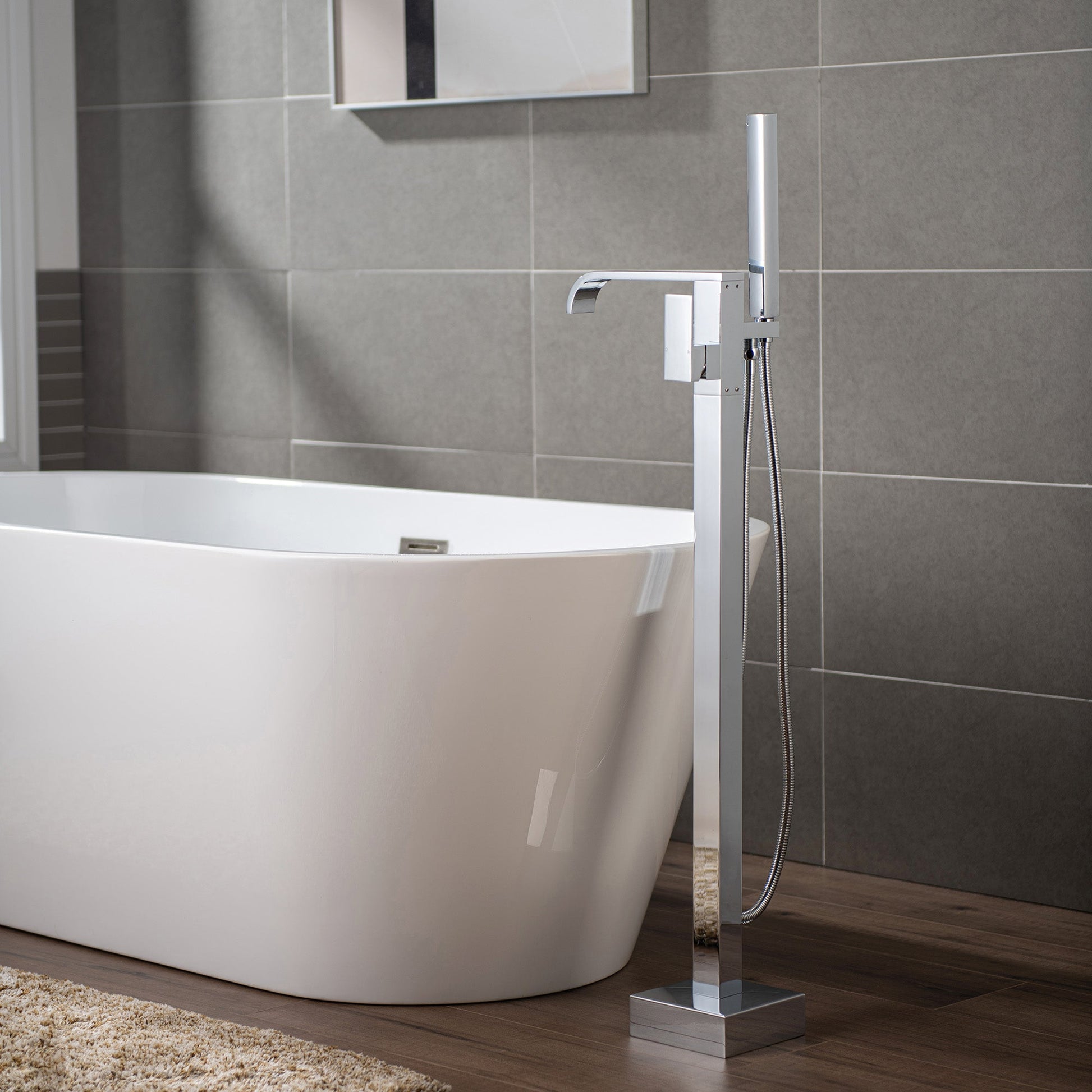

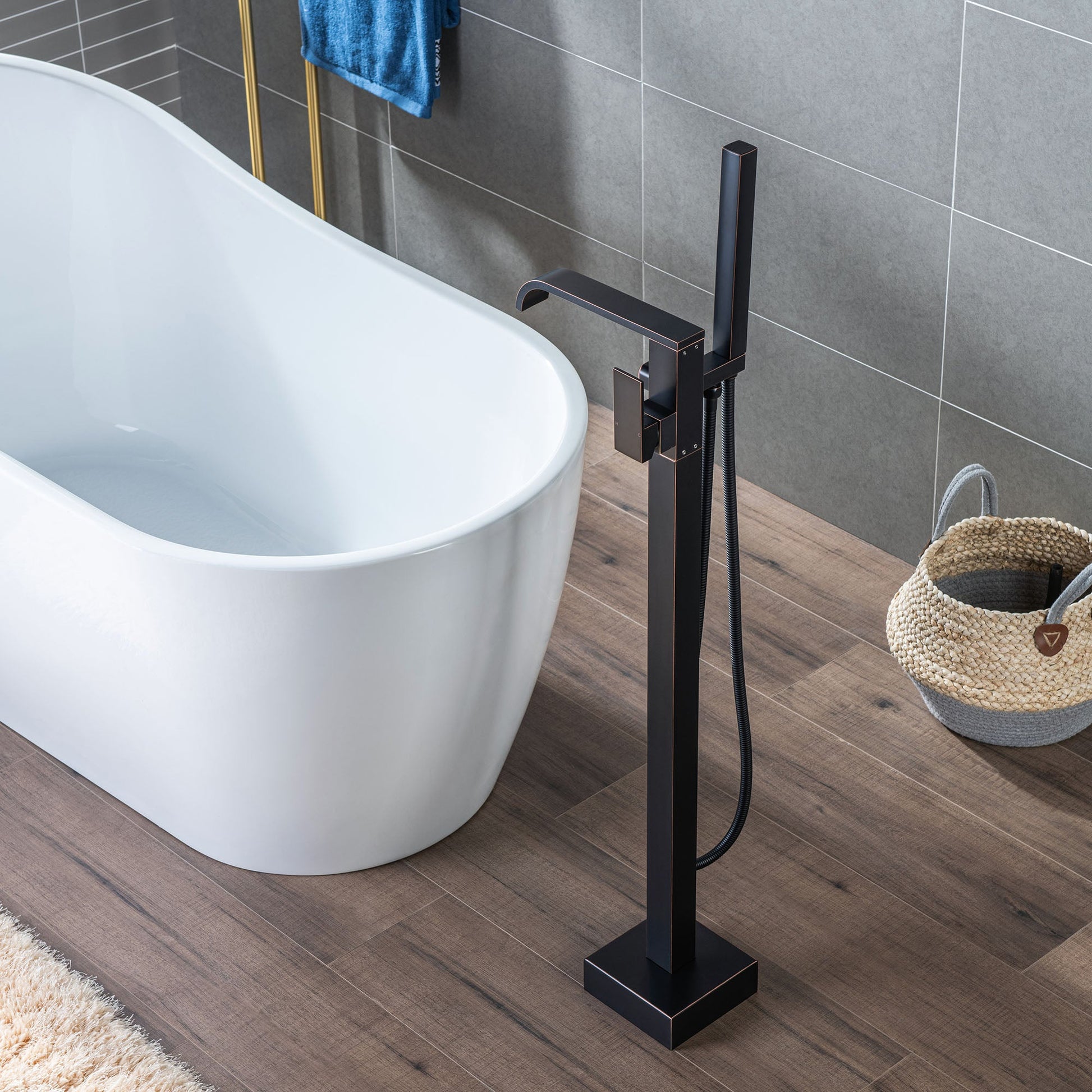

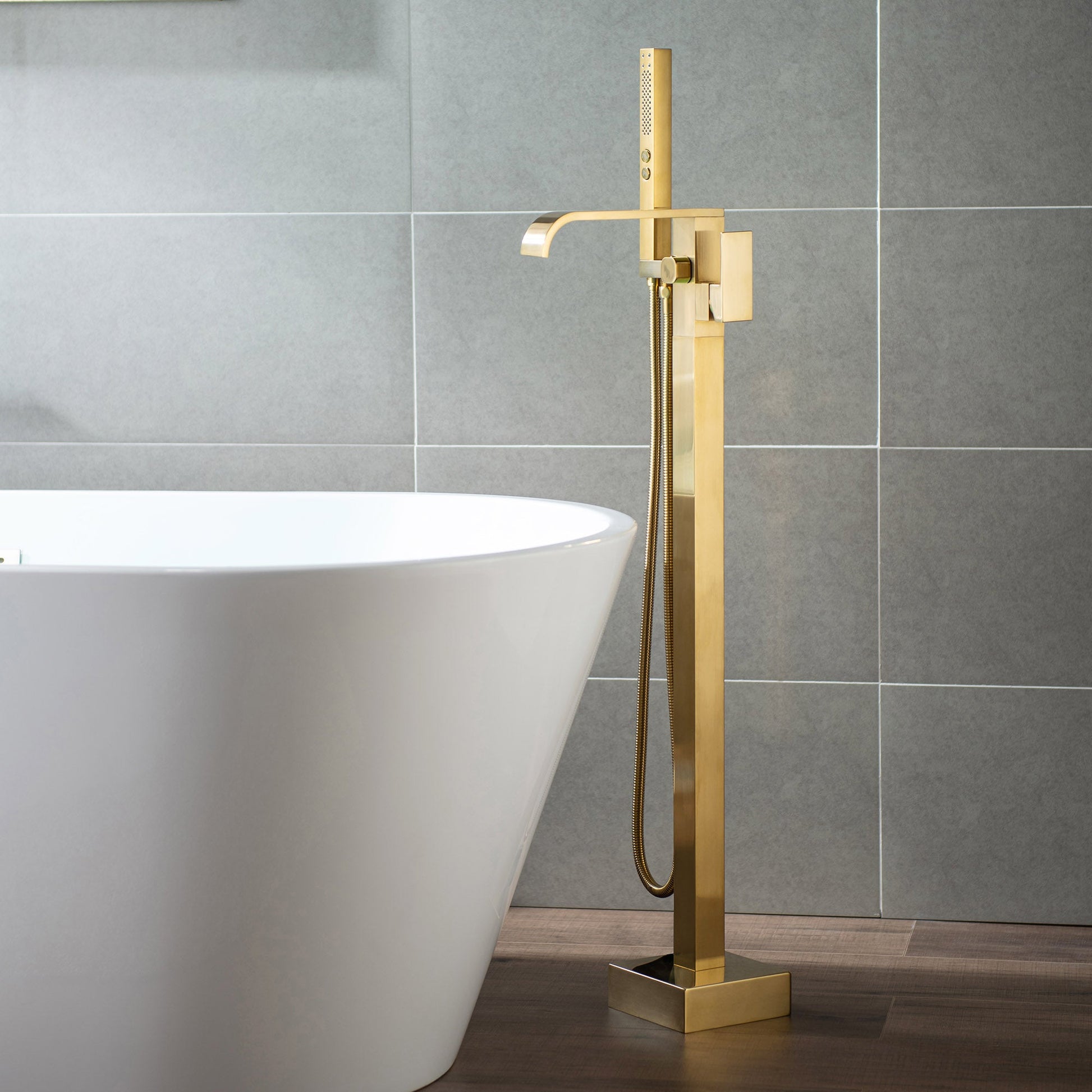

WOODBRIDGE F0040BN Contemporary Single Handle Floor Mount Freestanding Tub Filler Faucet with Hand shower

Overview

• Faucet Shape: Square
• Faucets style: Tub Faucet
• Handle Shape: Square
• Mounting Type: Freestanding
• Height: Others

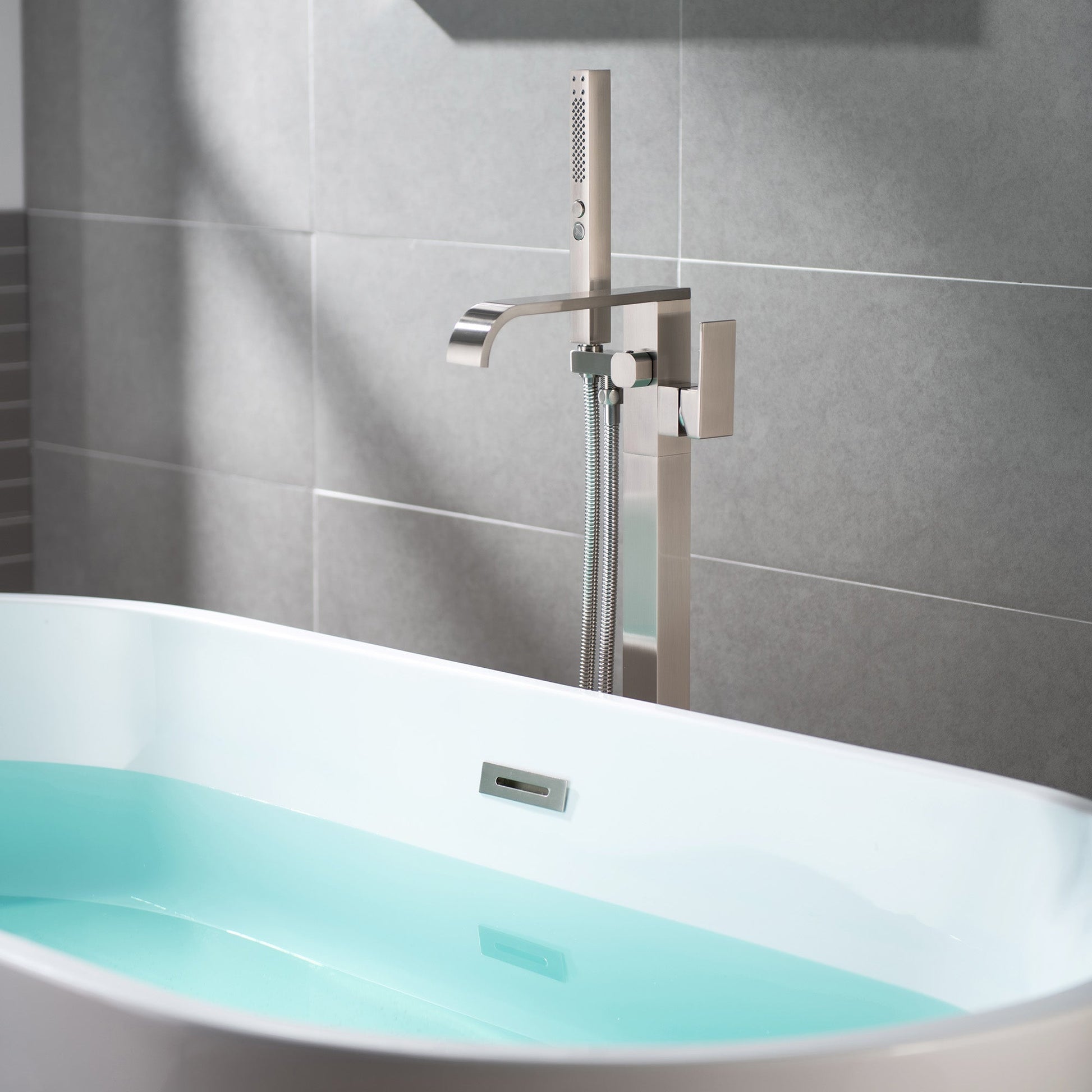

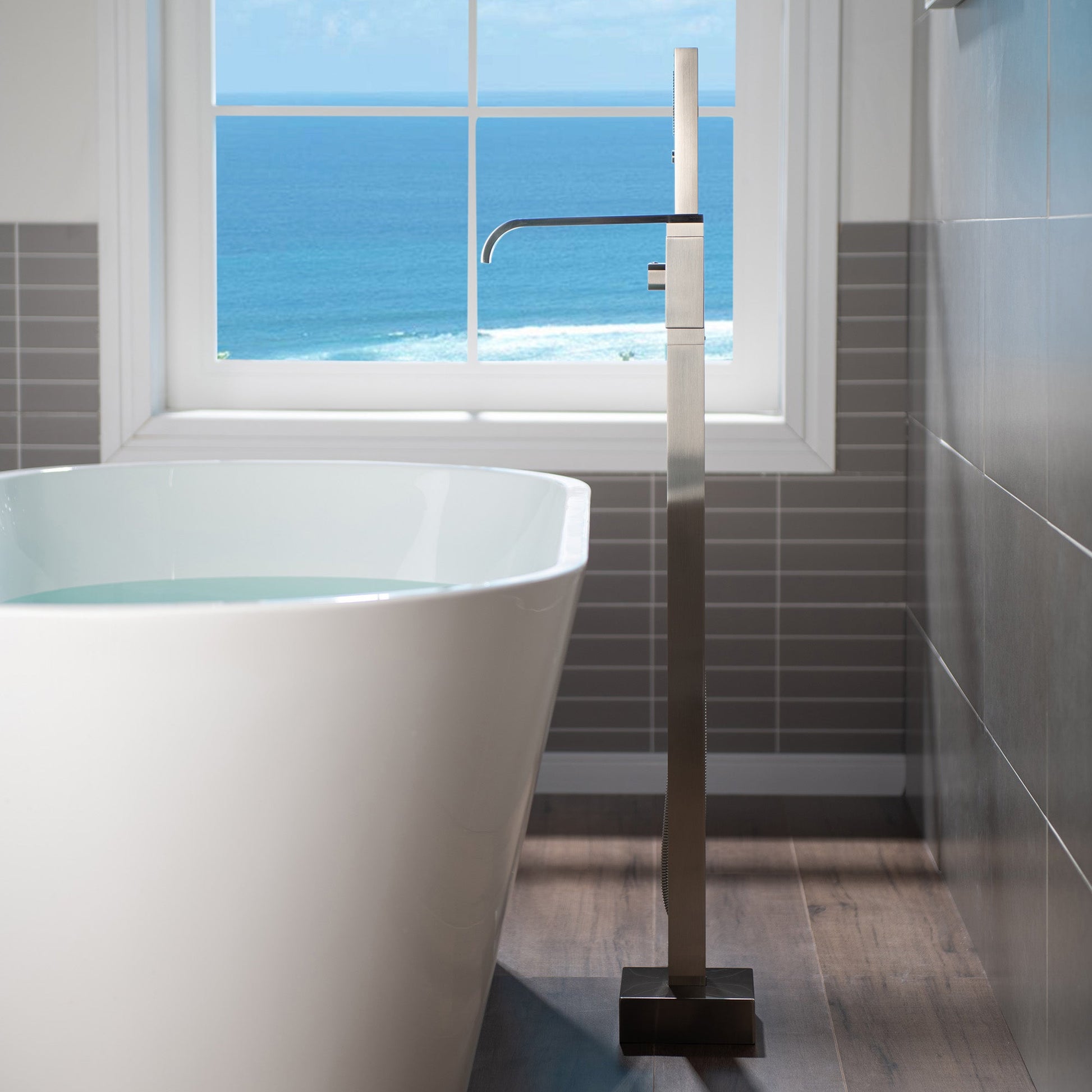

• Color: Brushed Nickel

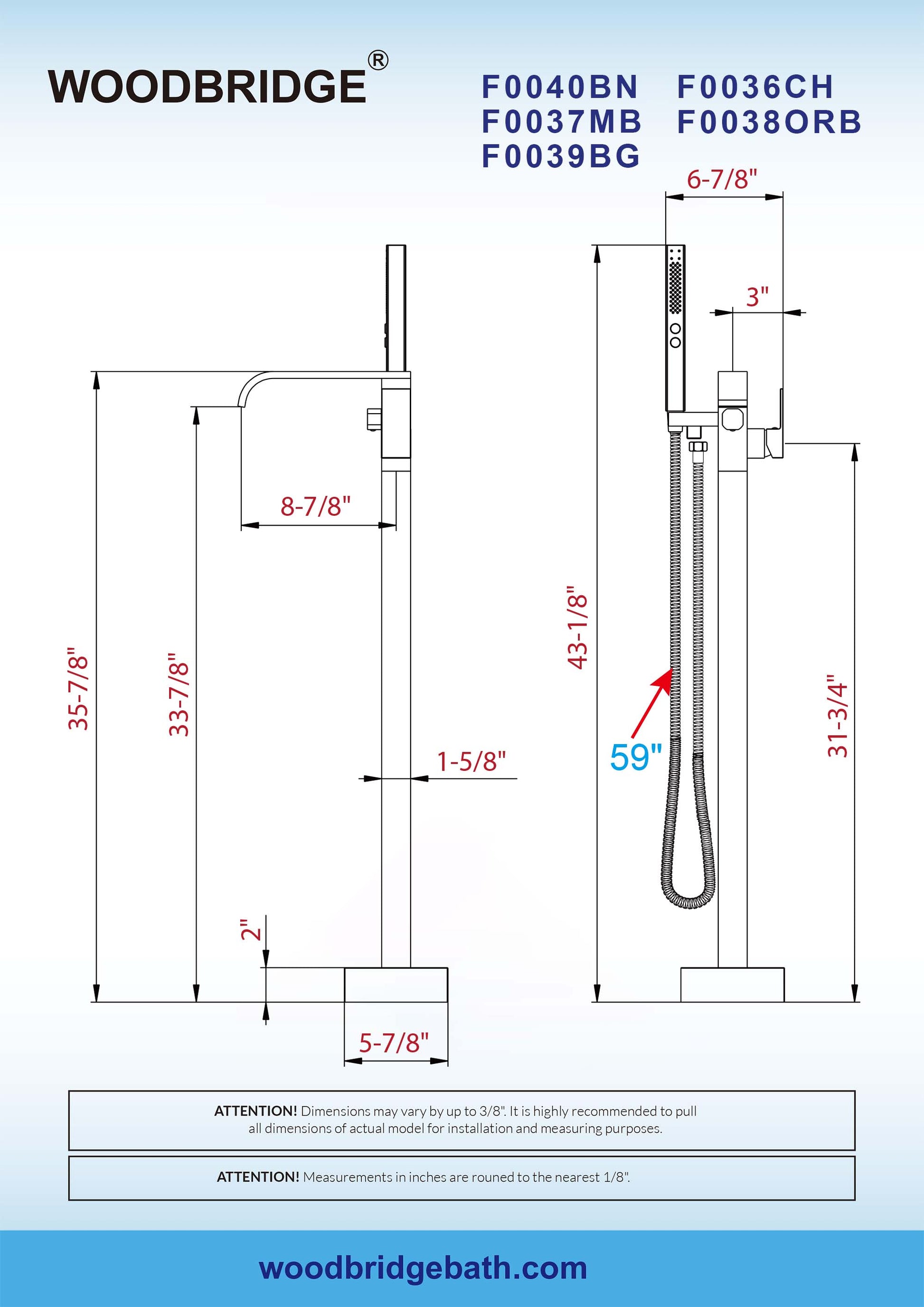

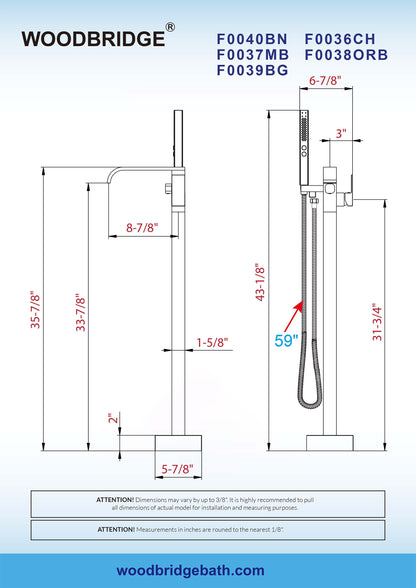

[ DIMENSIONS AND SPECIFICATIONS ]: Overall Size : (L) 5-8/7 " x (W) 5-8/7 " x (H) 43-1/8".  Spout Height: 35-7/8", Spout Reach: 8-7/8", Spout Clearance: 33-7/8"

? [PREMIUM QUALITY CONSTRUCTION]: Faucet body is crafted from solid brass and hand shower is made of 304 Grade (18/10) Stainless Steel to resist from tarnish and corrosion from daily use, drip free ceramic disc cartridge for extended product life.

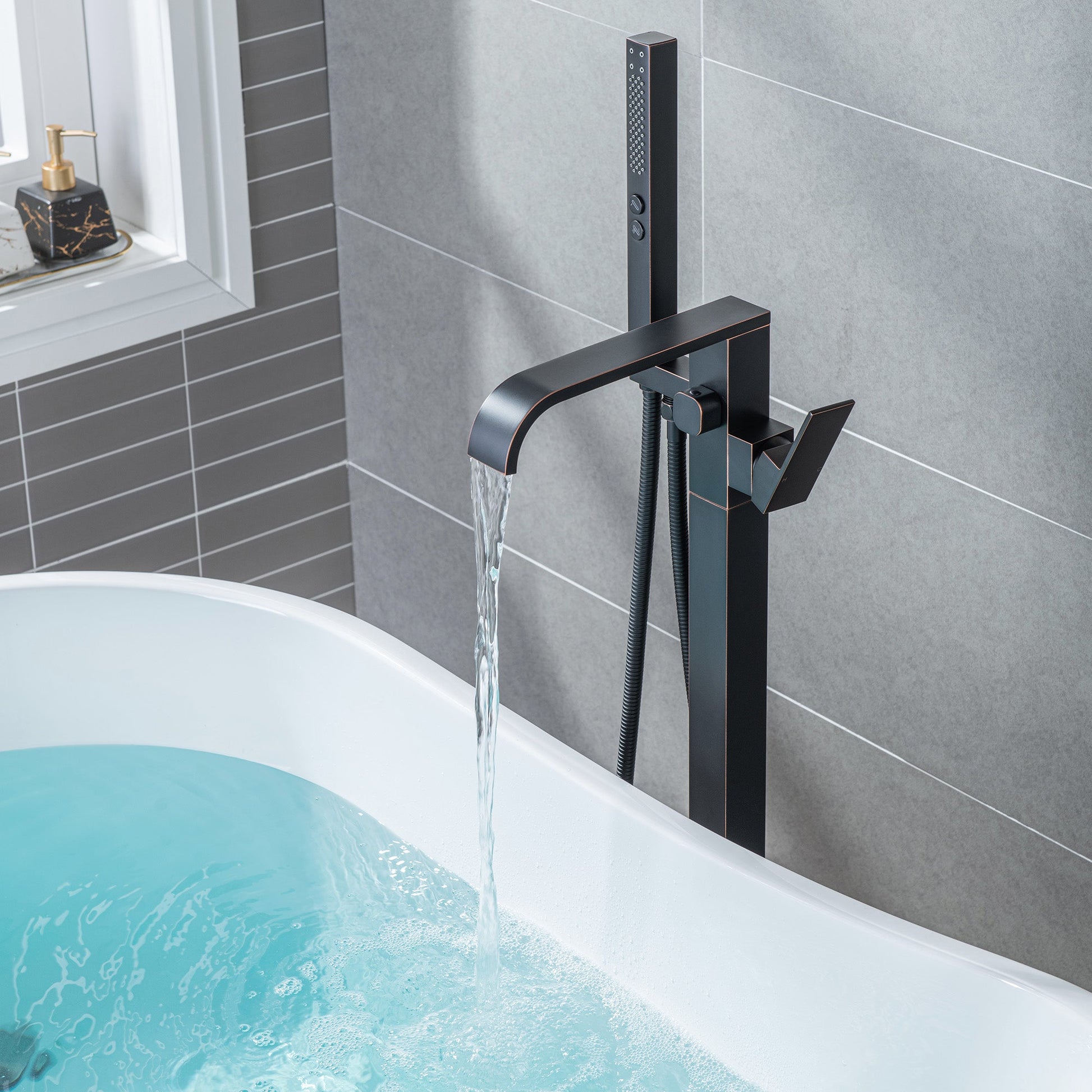

? [DESIGN INSPIRATION]: Single-handle waterfall flow spout, quick freestanding mount to floor design with high and rigid tripod mounting bracket and hardware included, easy operation design allows flow rate and temperature control in single hand

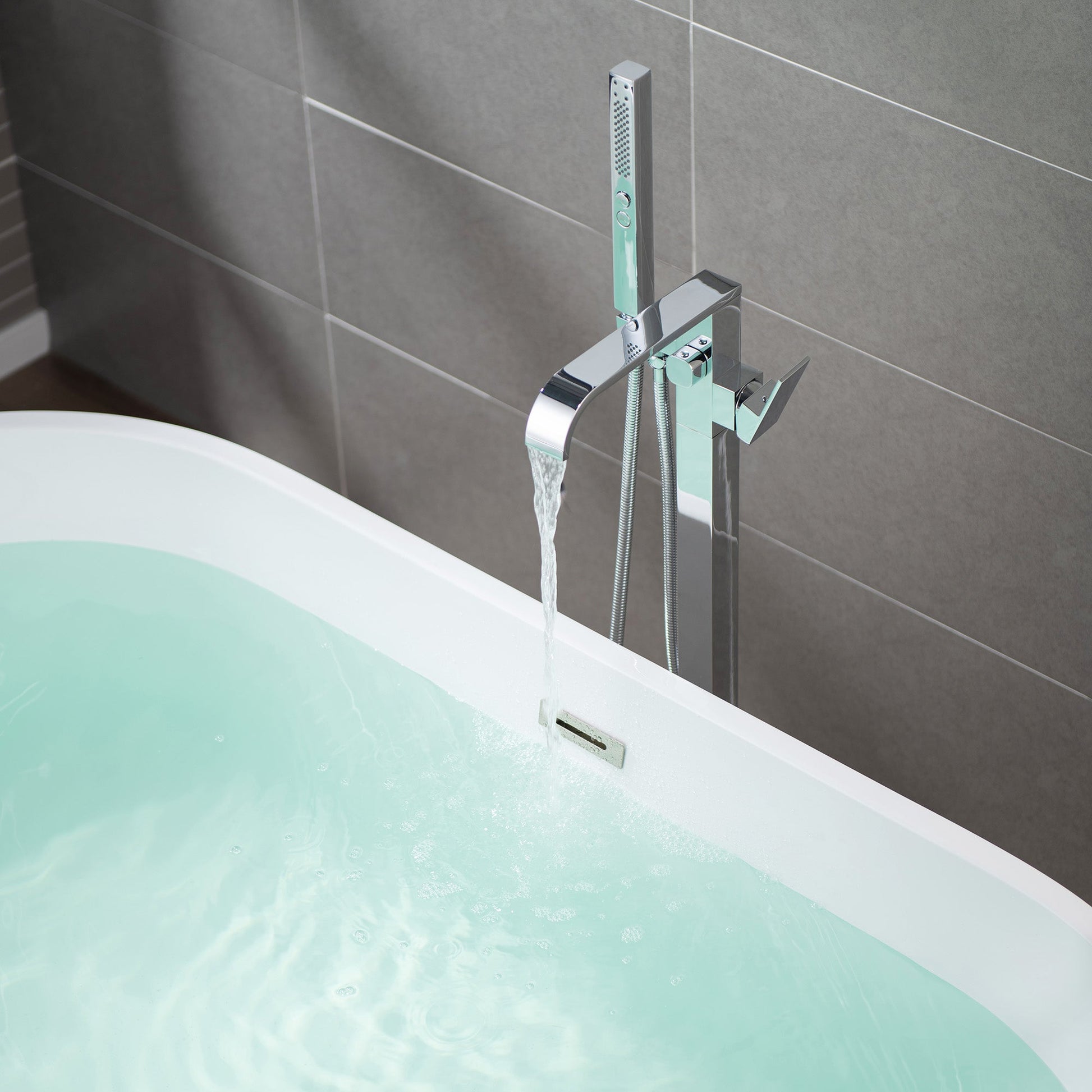

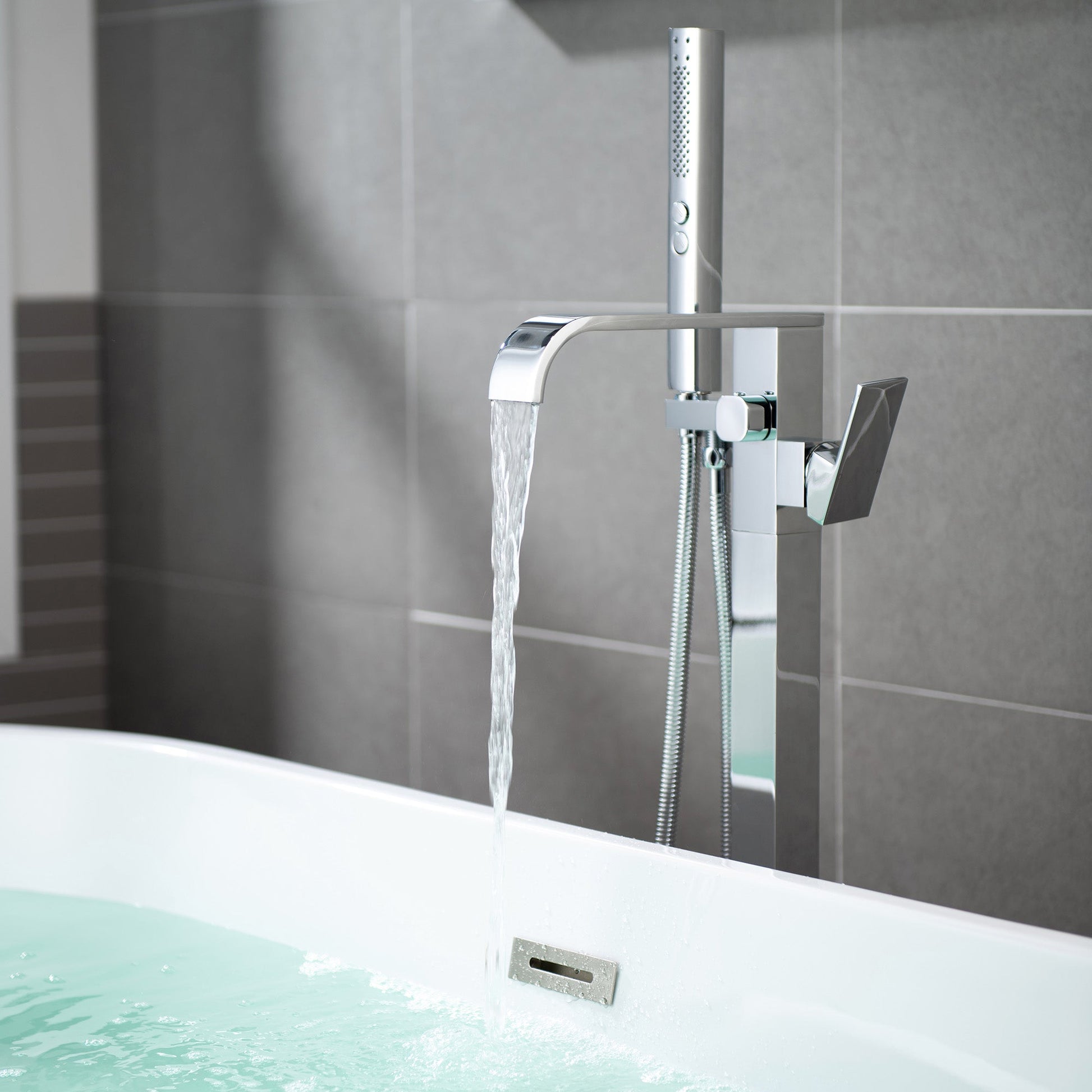

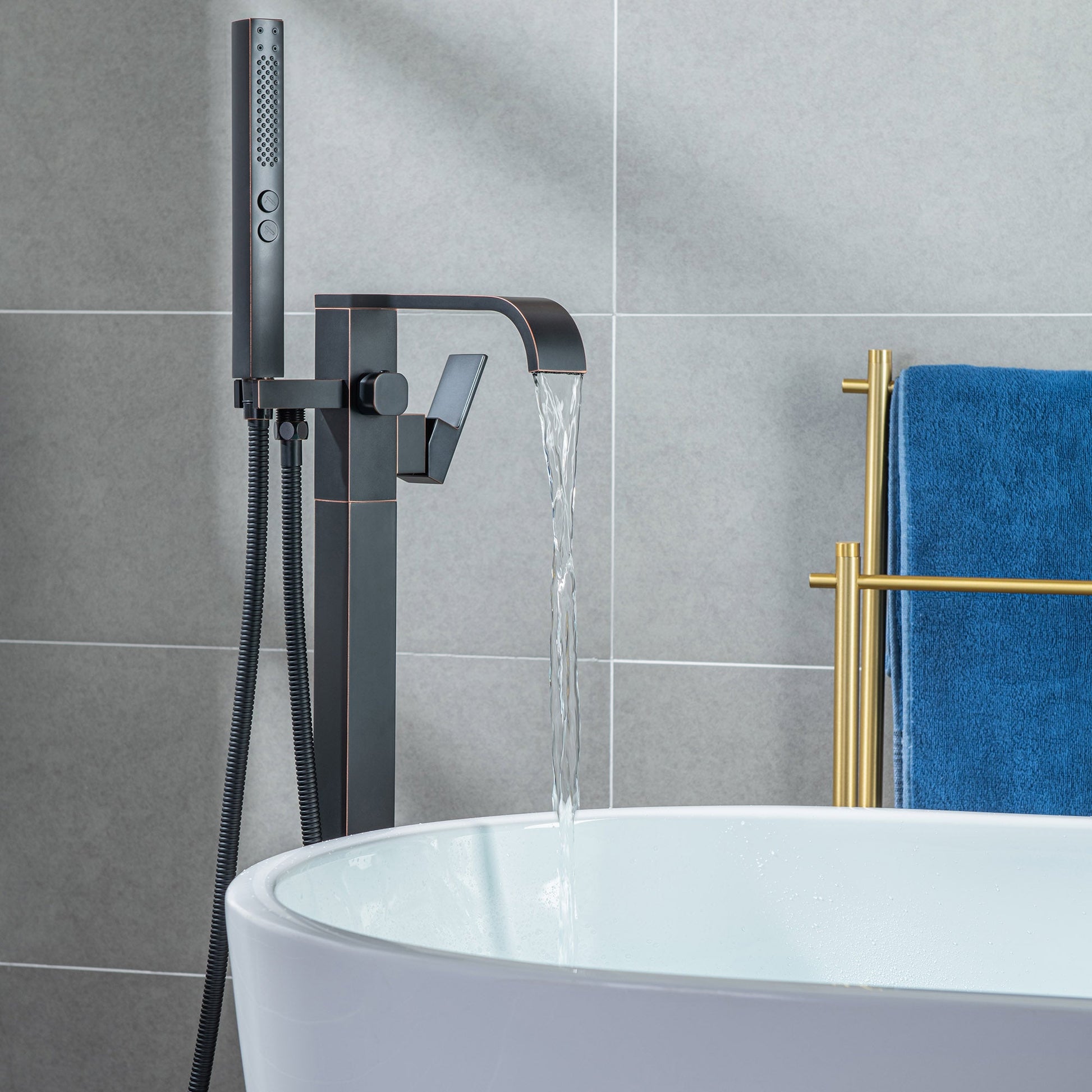

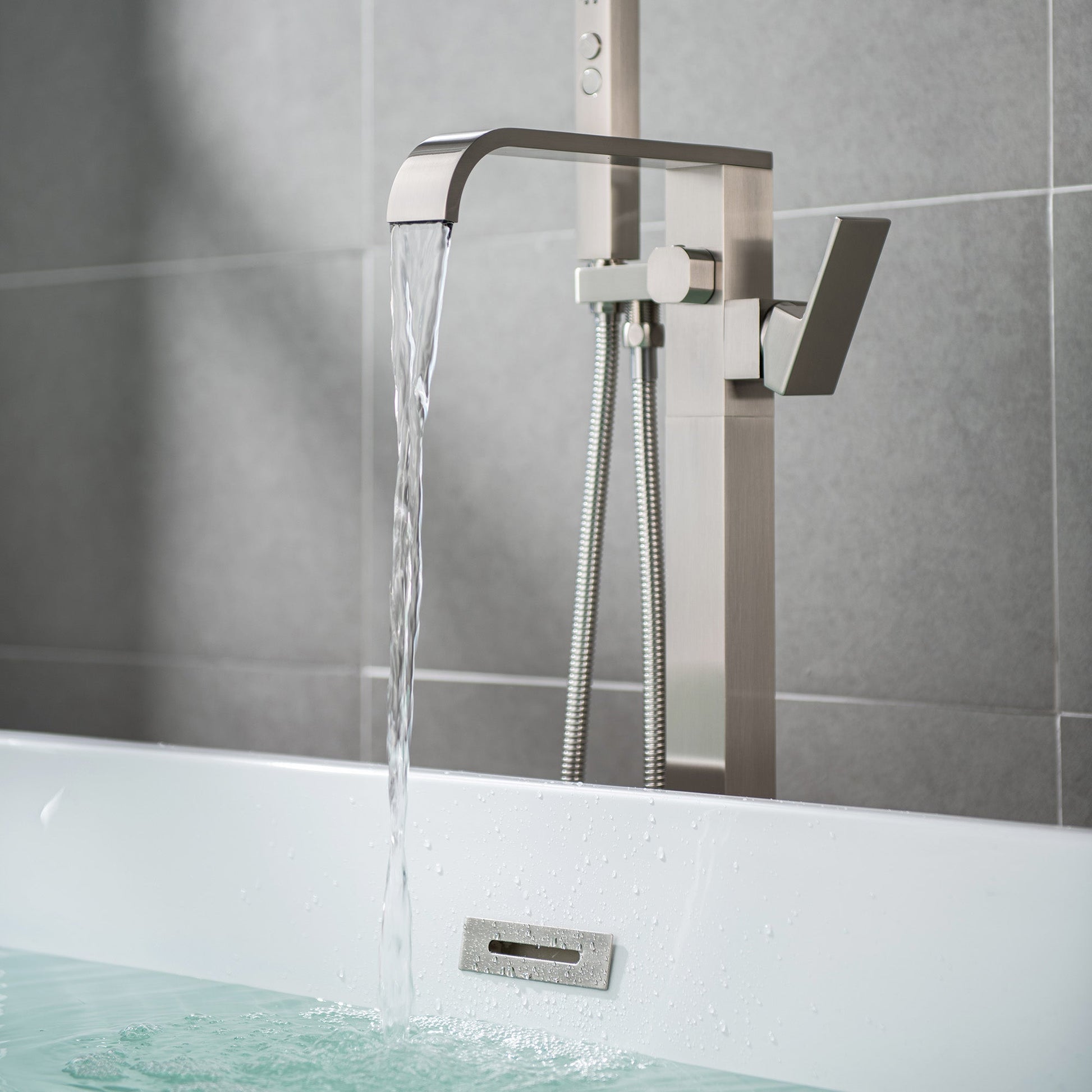

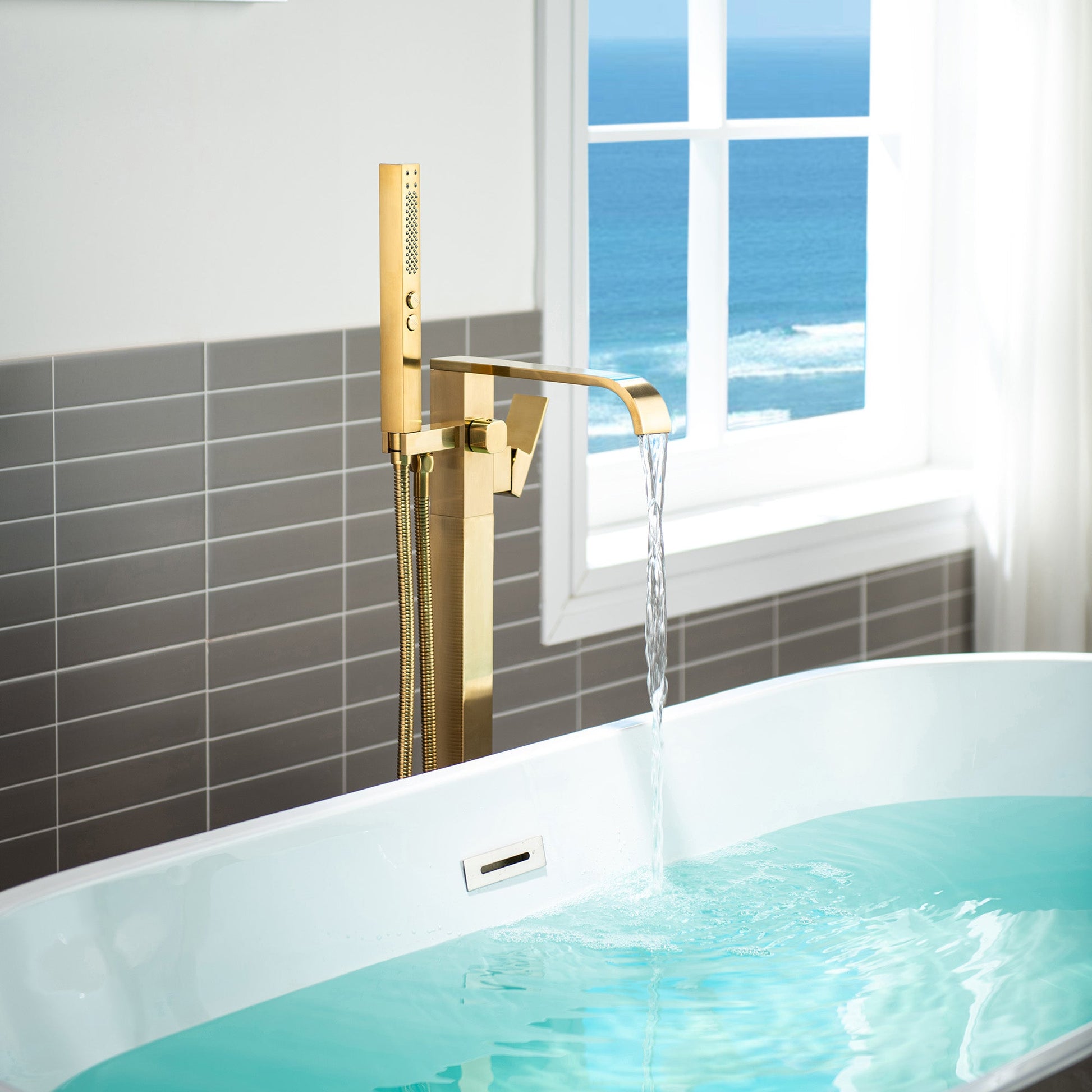

[MULTI-FUNCTIONAL]: Waterfall bathtub faucet is equipped with linear spout with water fills up your bathtub in a short time, the diverter faucet knob can switch water from waterfall bathtub spout to hand shower, enjoy your bathing with double functions

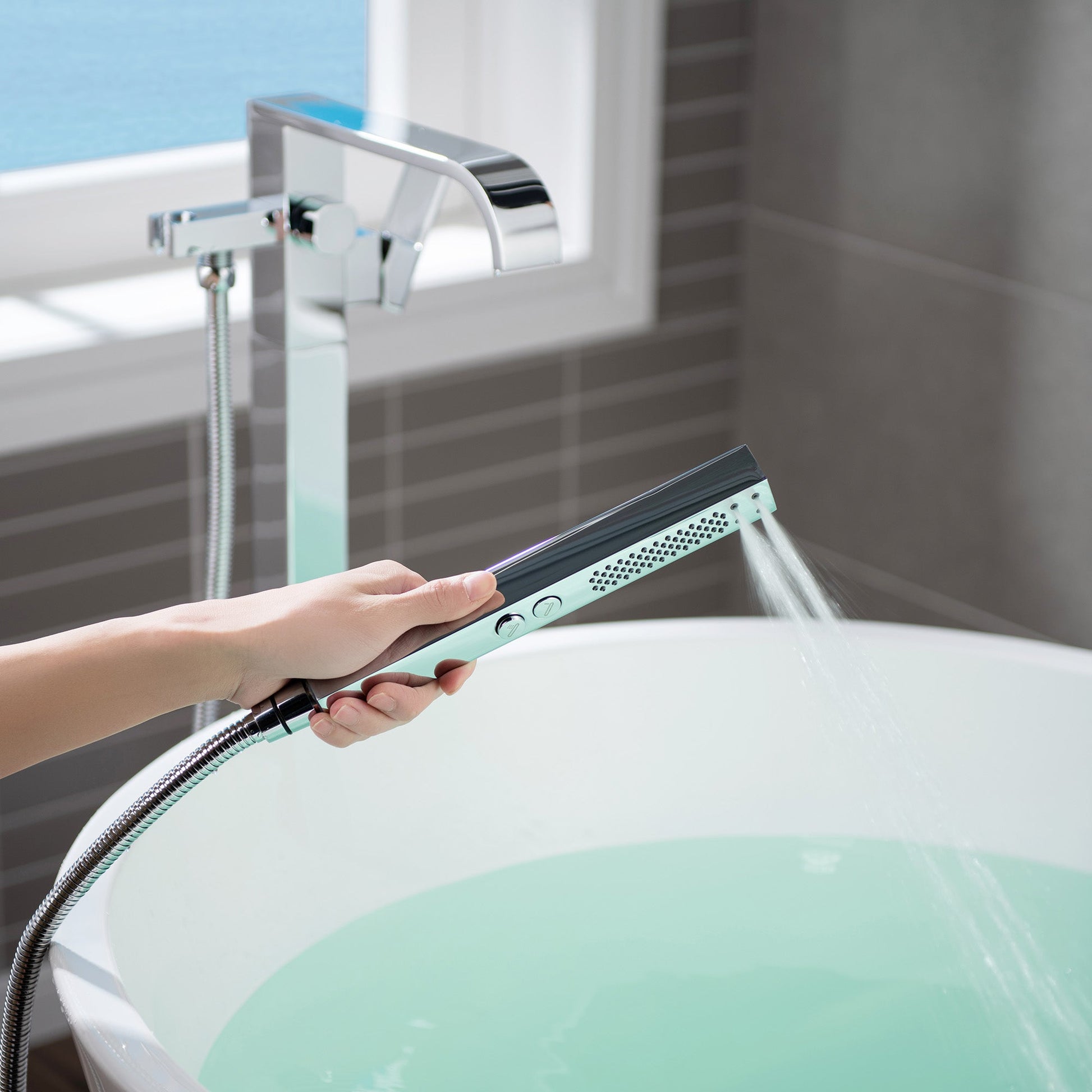

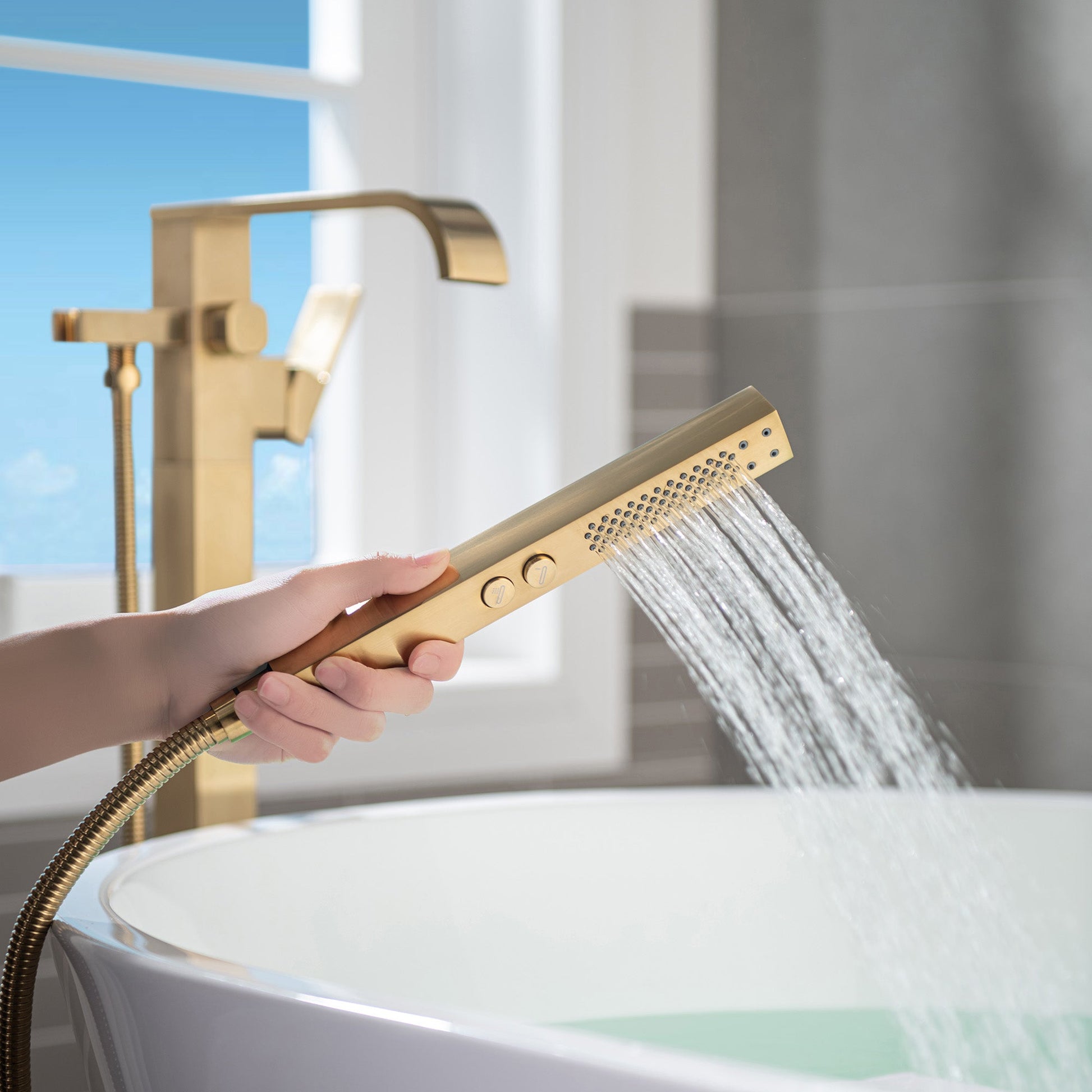

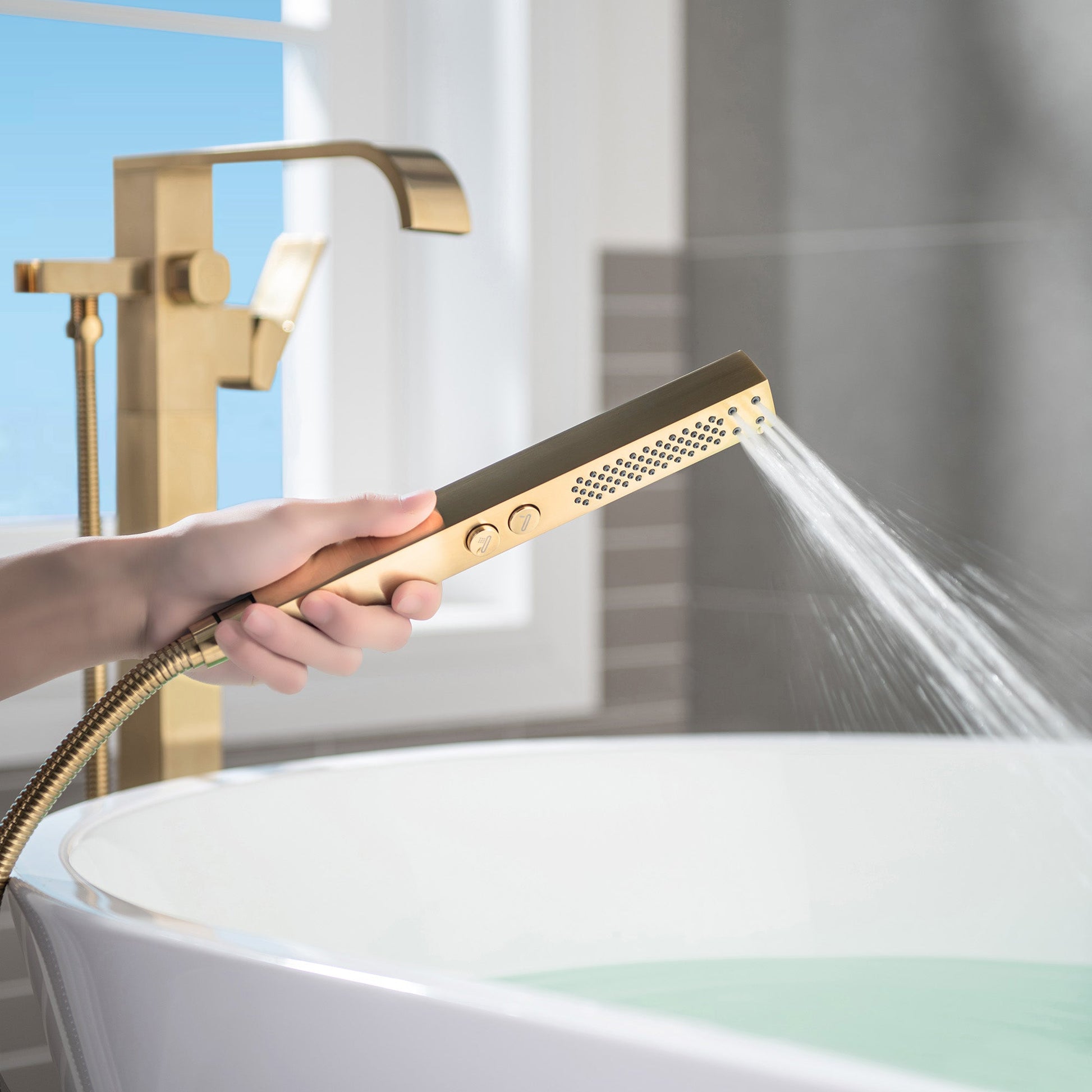

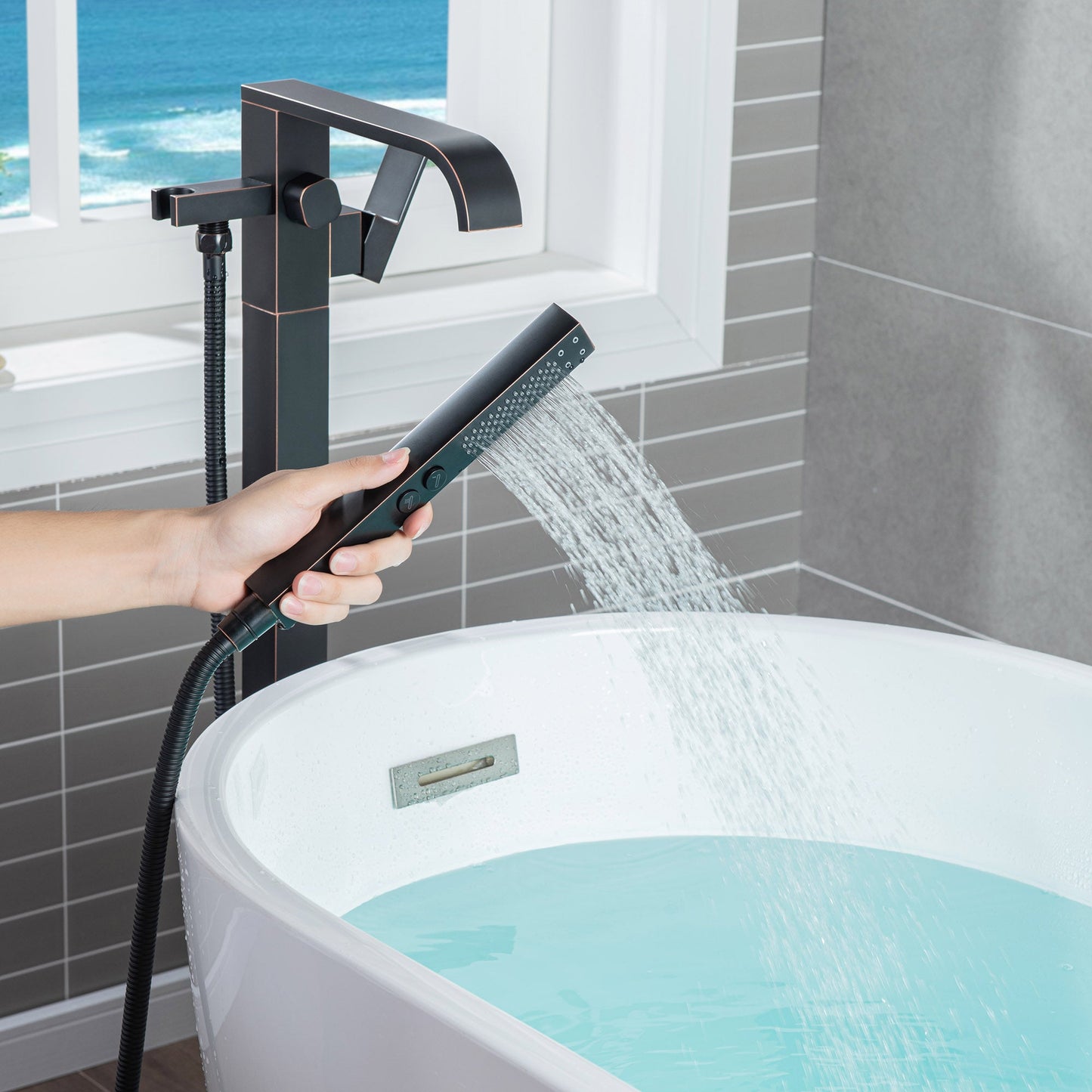

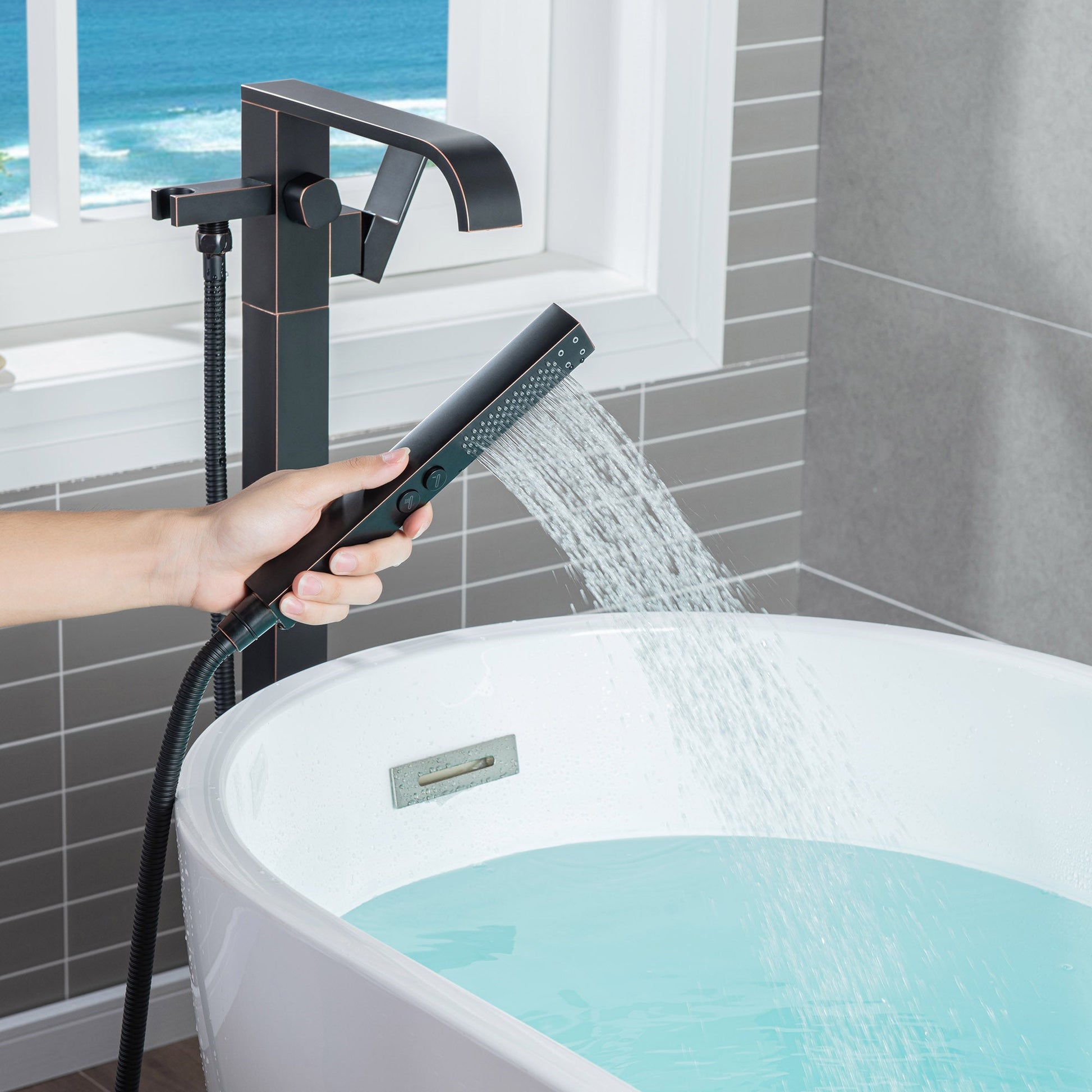

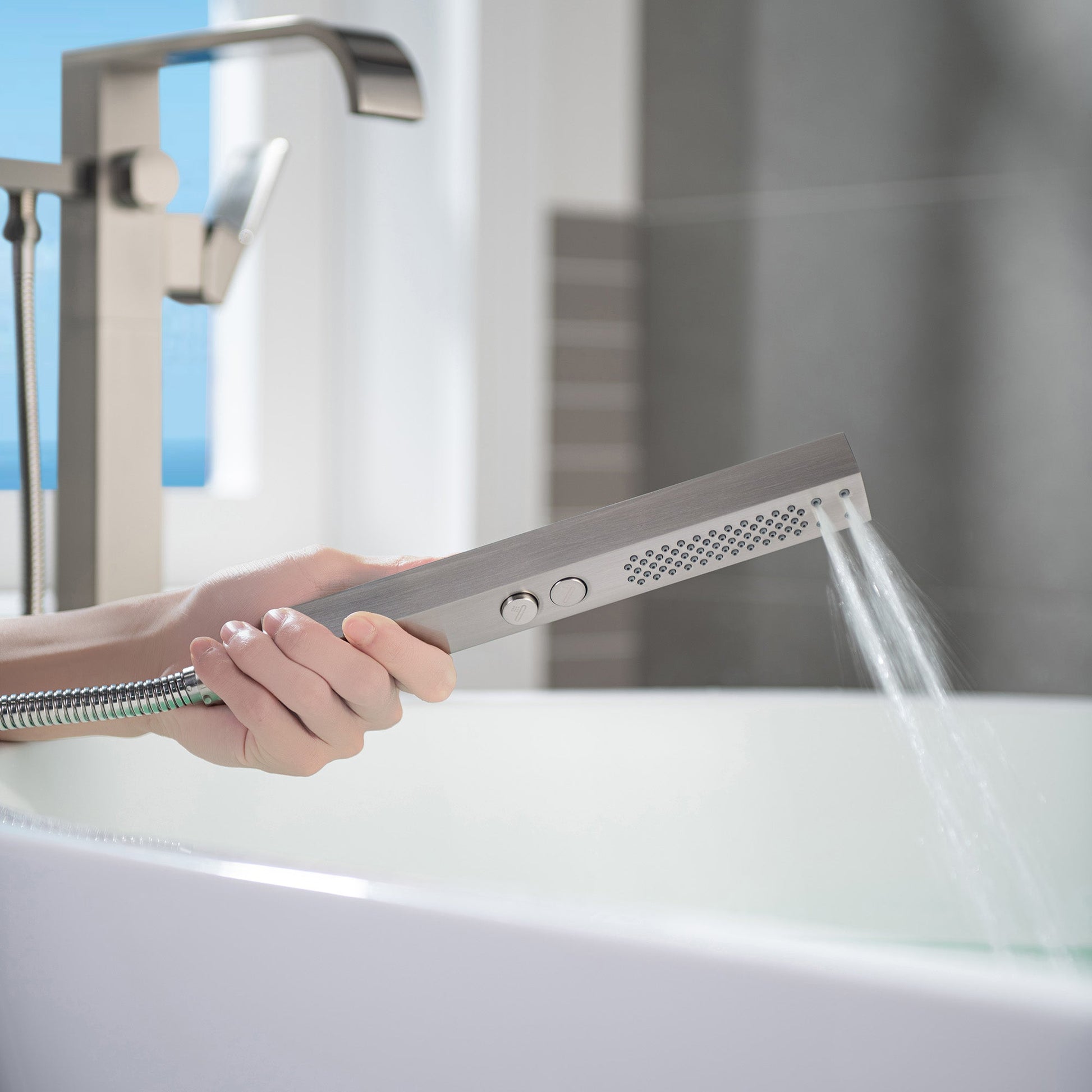

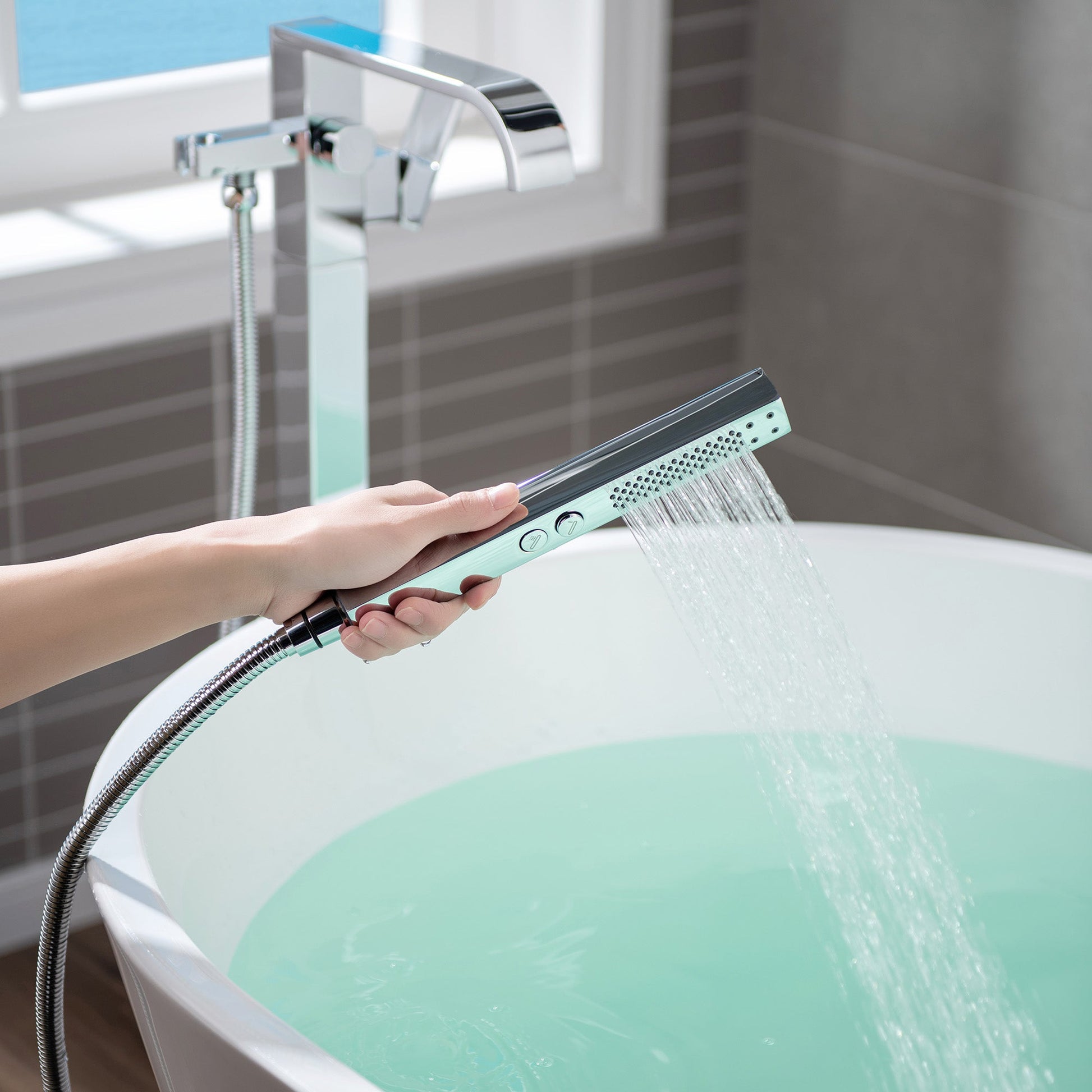

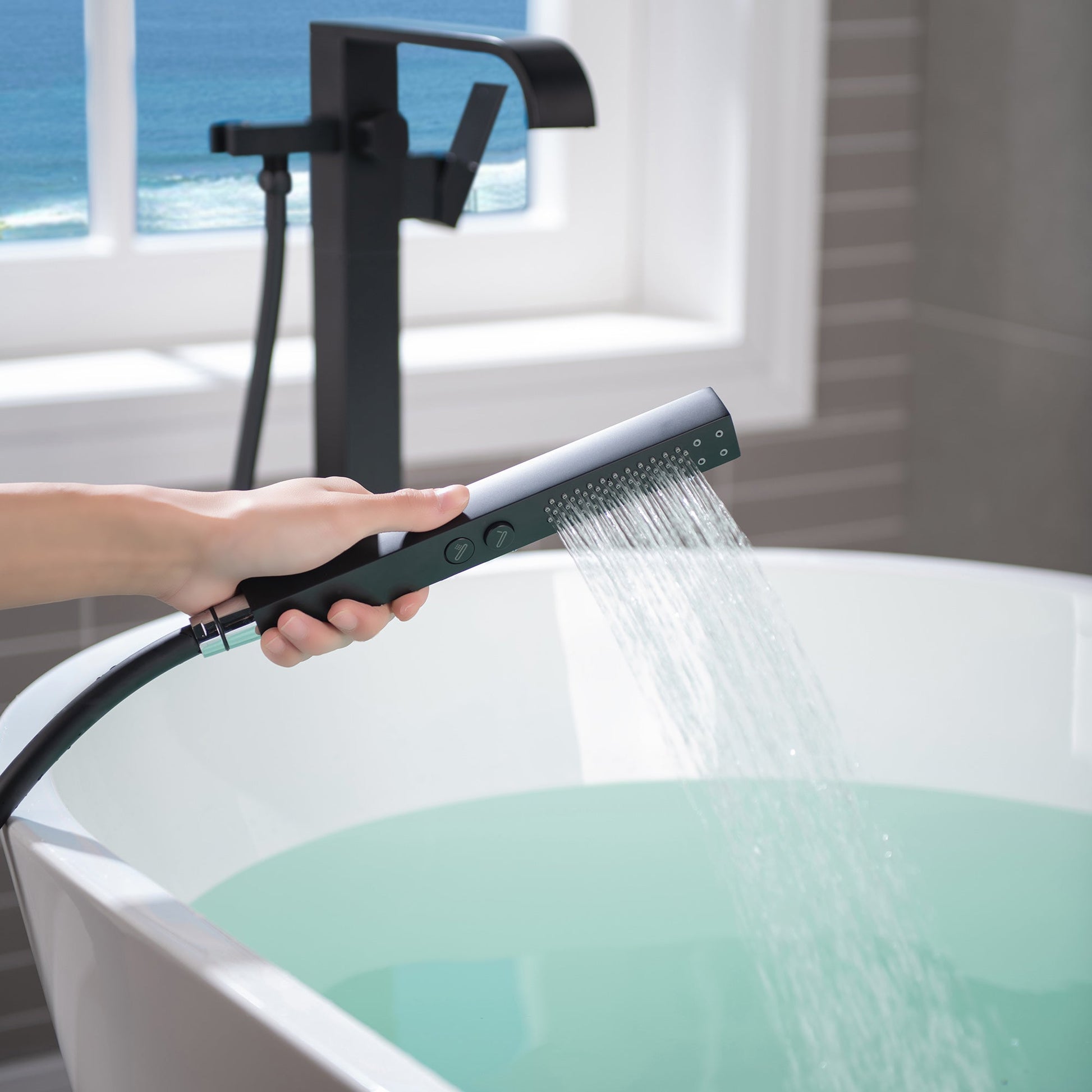

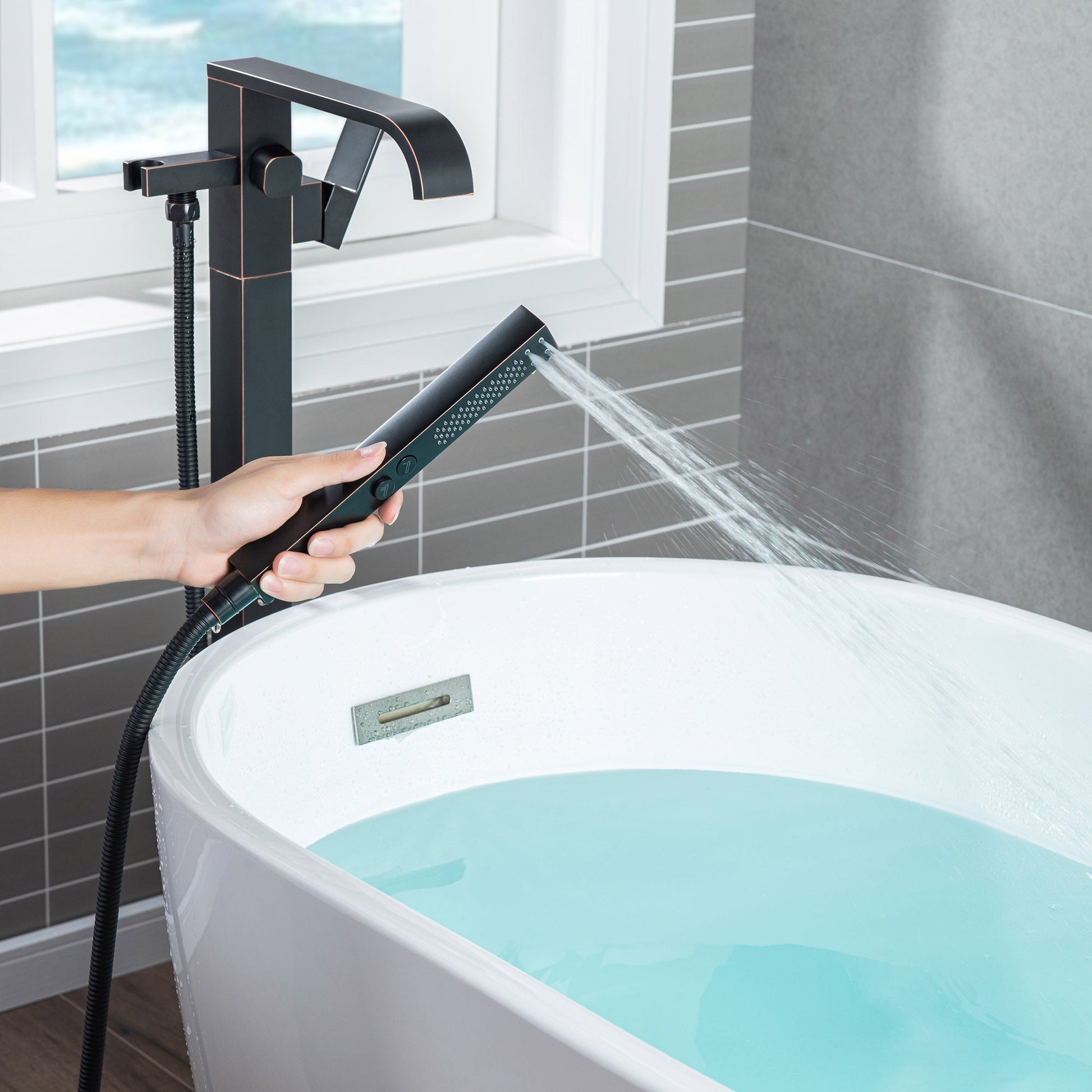

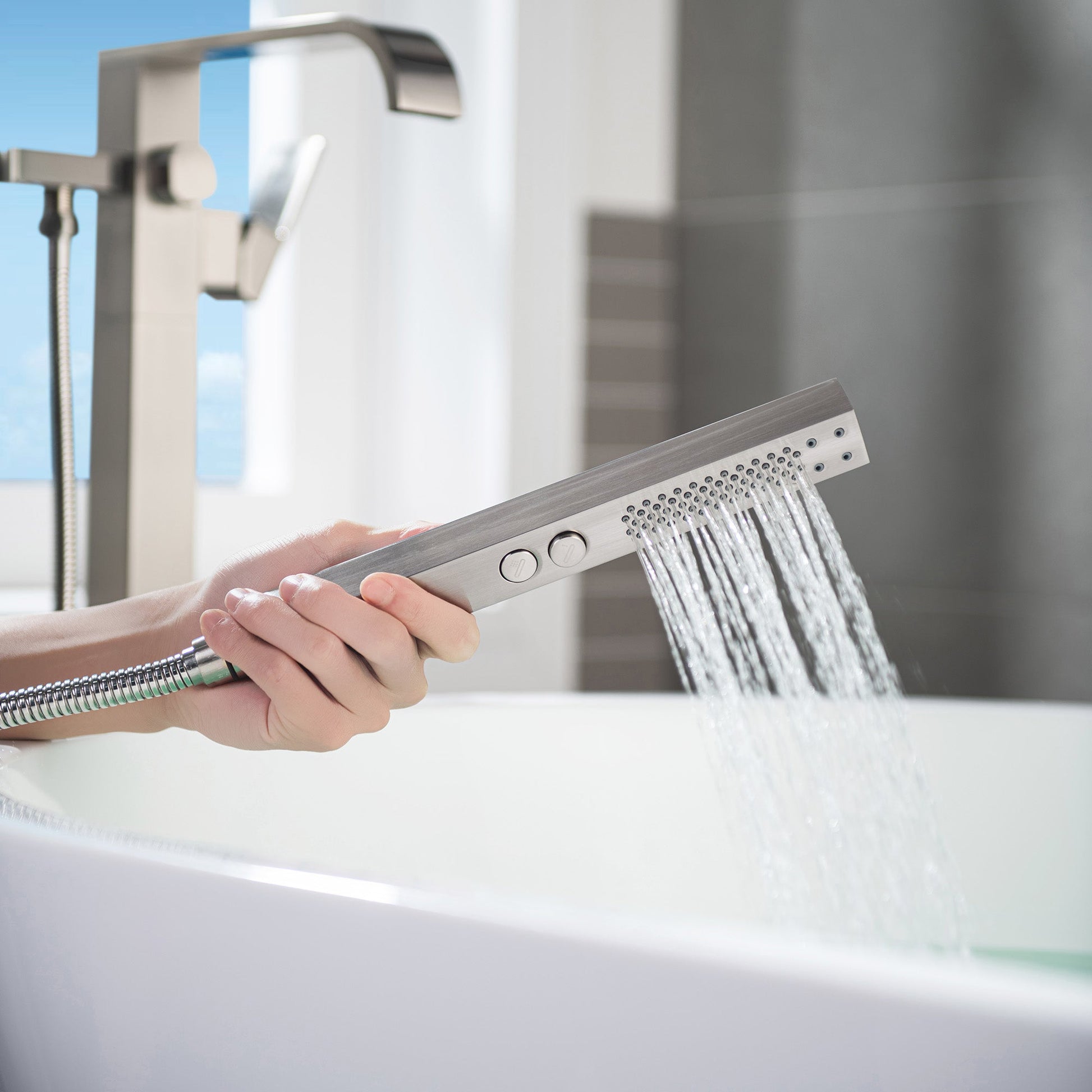

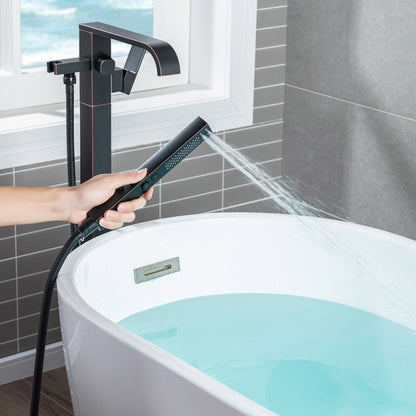

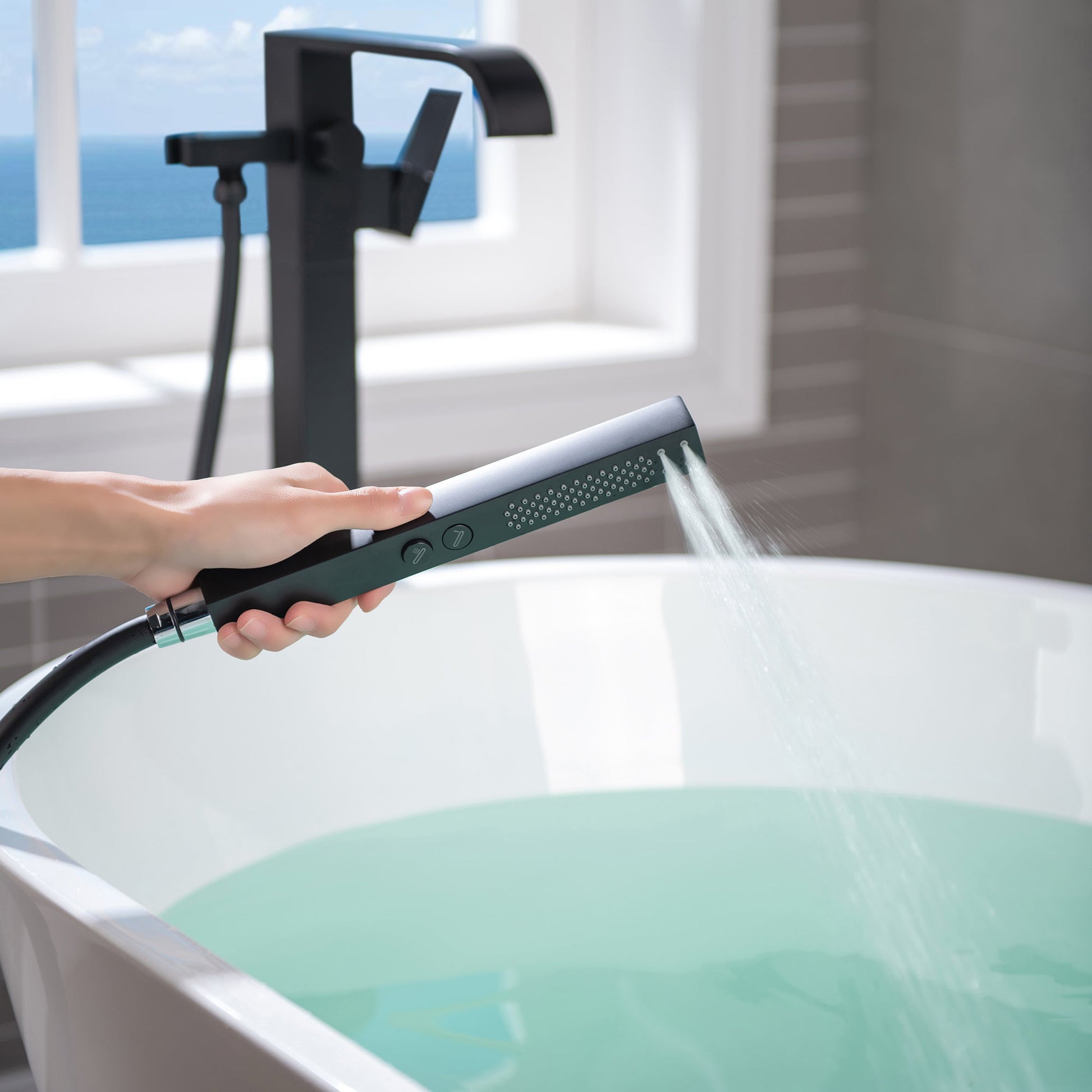

[HANDSHOWER]: Square hand shower with four high flow holes at the top and small flow holes at the bottom, respectively corresponding to the upper and lower two buttons, can change the water mode, easy to operate.

[TOP QUALITY]: Brushed Nickel finish for resists tarnish and corrosion; Single handle easy operation on flow rate and temperature control; drip free ceramic disc cartridge.

? [FLOW RATE]: MAX spout flow rate 4.6GPM at 80 PSl, Max hand shower flow rate 1.8GPM at 80 PSI to meets CEC requirement

[EASY INSTALLATION]: Our high quality brass tripod mounting bracket, which comes standard with expansion bolts for install on concrete, allows for easy and stable installation while seamlessly allowing for water supply to pass through.

[PACKAGE CONTENT]: Contain bathtub faucet (crafted from solid brass), brass tube, hand shower with double spiral stainless steel hose, Hot and Cold water inlet hoses, metal tripod with mounting hardware, Base Cover and installation instruction.

? [CERTIFICATION & WARRANTY]: Products are ICC-ES listed and are compliance with ASME A112.18.1-2018 and CSA B125,1-18. WOODBRIDGE product support team is happy to assist with any sales or product queries.

Specifications

Download Data Sheets

F0040BN F0036CH F0037MB F0038ORB F0039BG

F0040BN 36CH 37MB 38ORB 39BG Installation 2023227

WARRANTY 20200922
