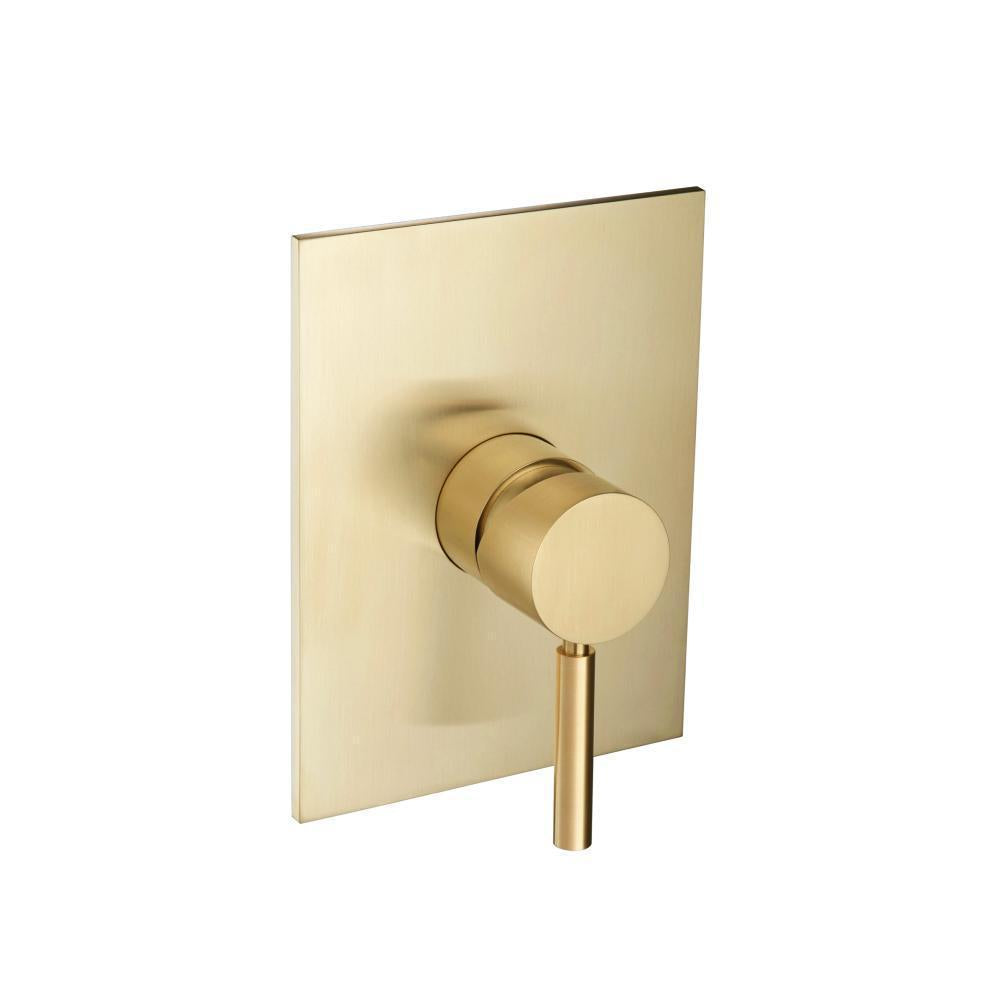

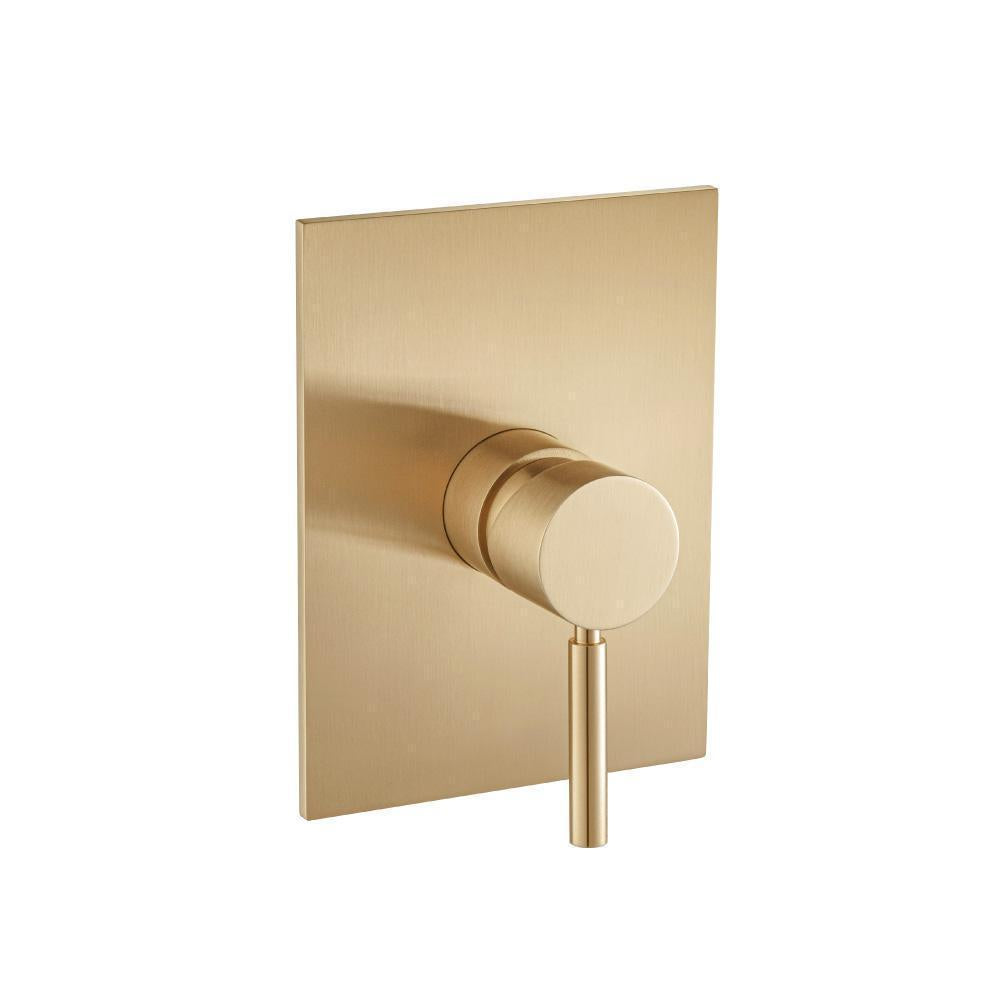

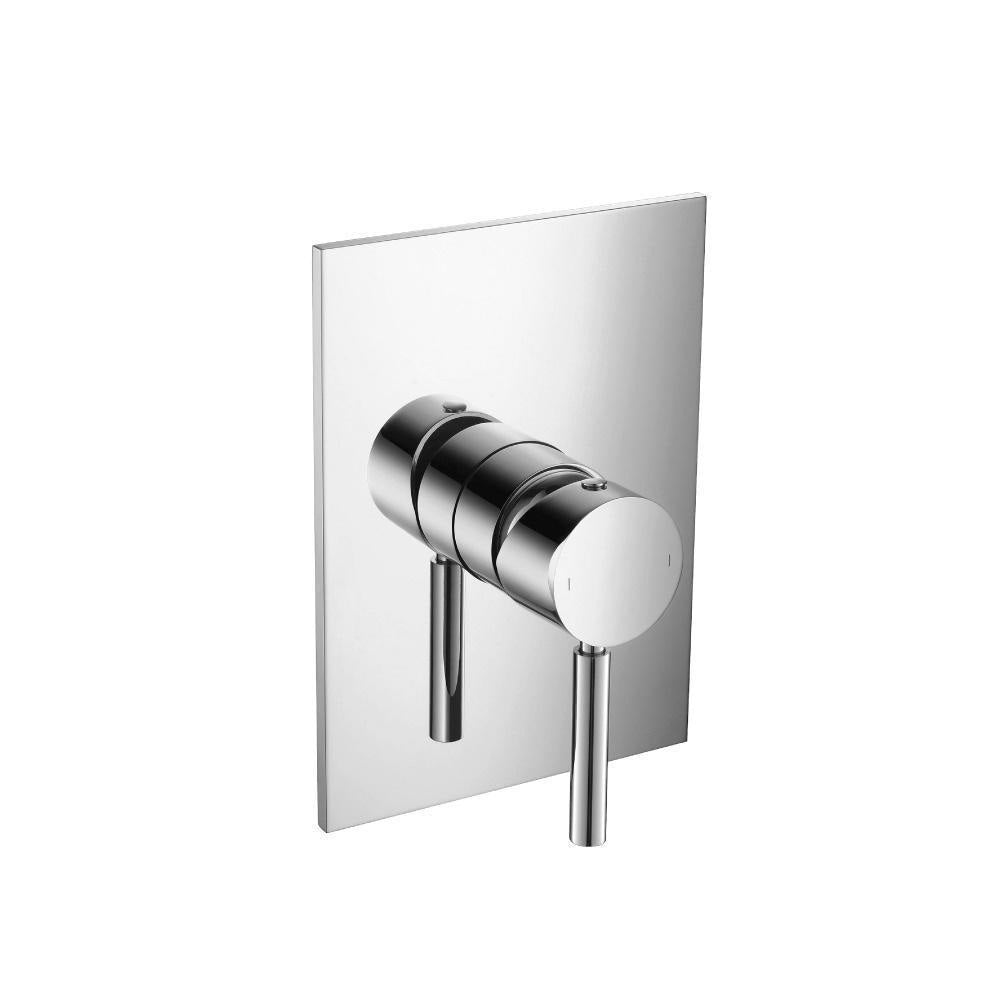

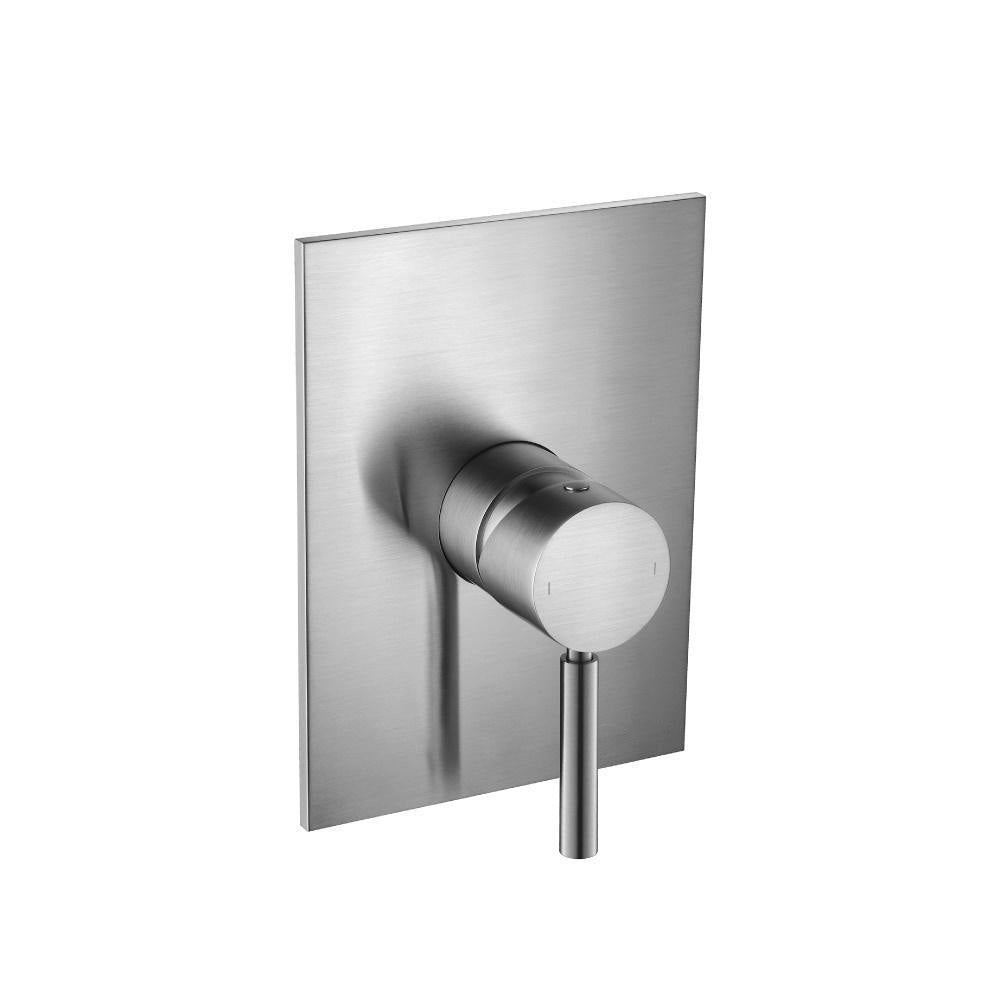

Flusso UF.2200T Shower Trim & Handle - Use With PBV1005AS

TO BE USED WITH PBV1005AS PRESSURE BALANCE VALVE

Handle Operation - The volume and temperature of water is controlled by the single handle. Lift the handle to control the volume and as the handle is moved between left and right, the temperature changes. Move it right for cold and left for hot water.

Cut Out Dimensions - The cut out in wall should be 4.60” x 4.76” Inches which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut out hole in the wall.

Trims - The trim set for PBV1005AS consists of a trim plate and handle knob. The trim plate has markings for HOT/COLD. An extension kit can be ordered separately in case the handles need to be extended for proper fit. Any trim ending in *2200 or *2201 can be used with this valve. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
<

Collection	Serie 100
Style	Contemporary / Modern
Warranty	Limited Lifetime Warranty. See Warranty page for complete details.

Features:

• Solid Brass Construction
• Valve Not Included - Trim Only
• Use With PBV1005AS Valve
• Extension Available - PBV.2100E**

Specifications

Handle Style	Lever
Material	Brass
Number Of Handles	1
Handles Included	Yes
Installation Type	Wall Mounted
Valve	Not Included

Spec Sheet

Parts Diagram

Installation Docs

Installation Video
