Flusso TVH.4101E 1.40" Extension Kit - For Use with TVH thermostatic valves.

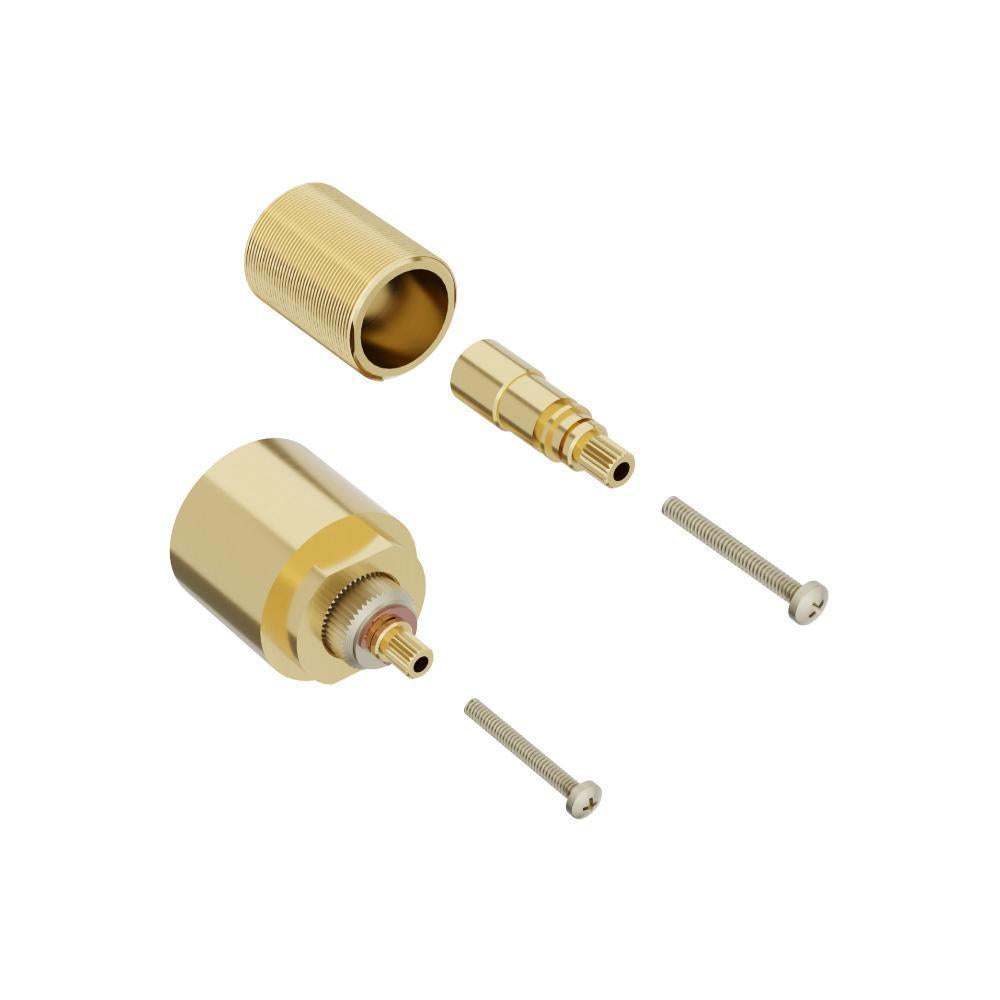

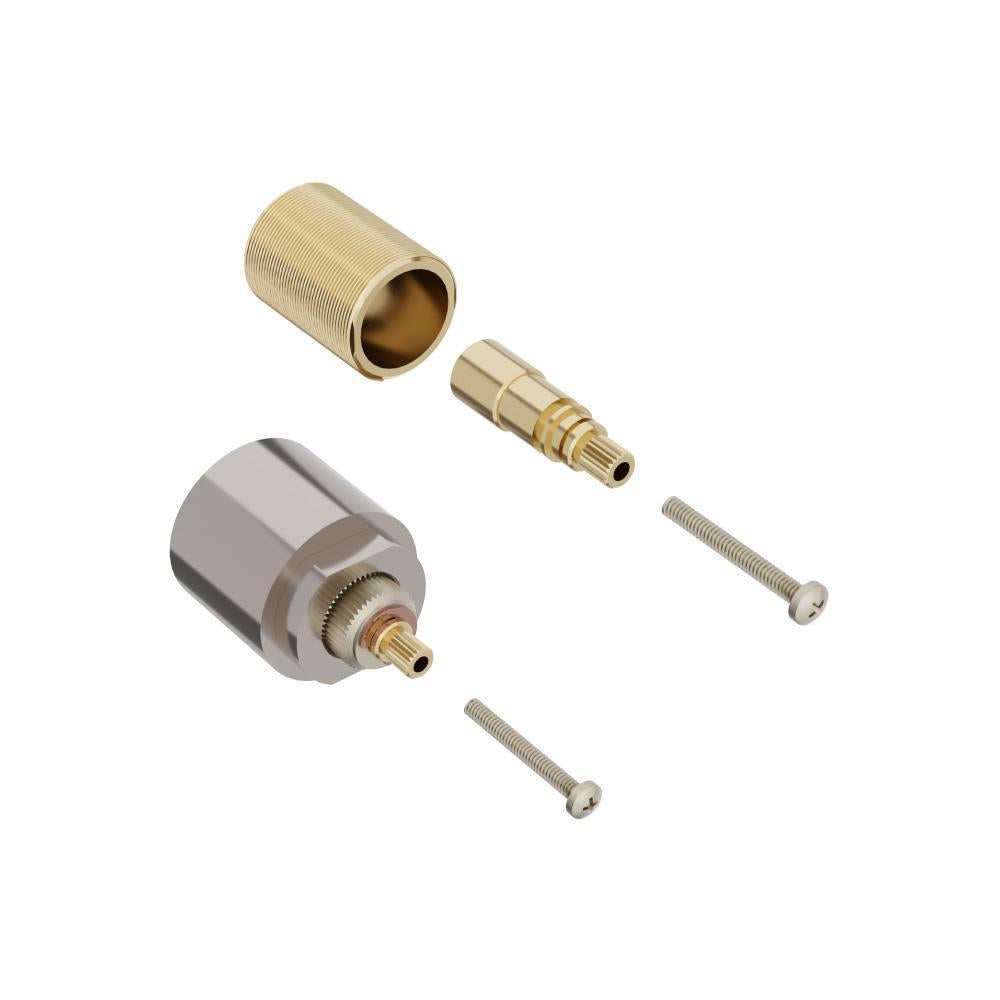

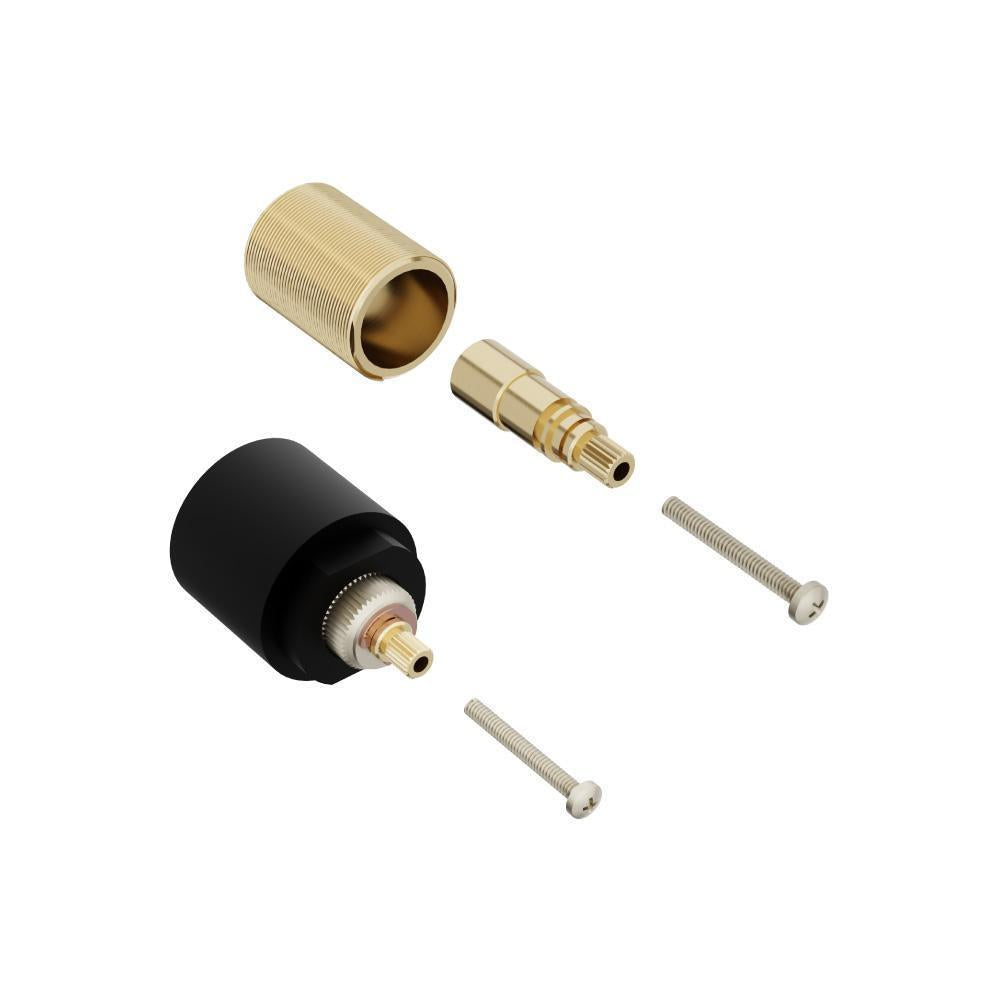

The TVH.4101E extension kit consists of a diverter handle extension and a temperature handle extension. This extension is to be used with the Flusso TVH.4101, TVH.4420F, TVH.4301F, TVH.2693, TVH.2717F and TVH.2705F valves. It is used when the valve is installed too deep into the wall and the handles need to be extended out further. The extension measures 1.4” in length.

A separate finish cover may be needed [not included] to cover the exposed brass part of the extension on the diverter handle. The part number of this finish cover is the TRM.TVH.0211** where ** denotes the appropriate finish.

Collection	Universal Fixtures
Style	Contemporary / Modern
Warranty	Limited Lifetime Warranty. See Warranty page for complete details.

Features:

• Solid Brass Construction
• Extension For Use with TVH.4101 TVH.4420F TVH.4301F TVH.2693 TVH.2717F TVH.2705F
• A separate finish cover may be needed - TRM.TVH.0211 or TRM.TVH.0222 [not included].

Spec Sheet

Parts Diagram

Installation Docs

Installation Video
