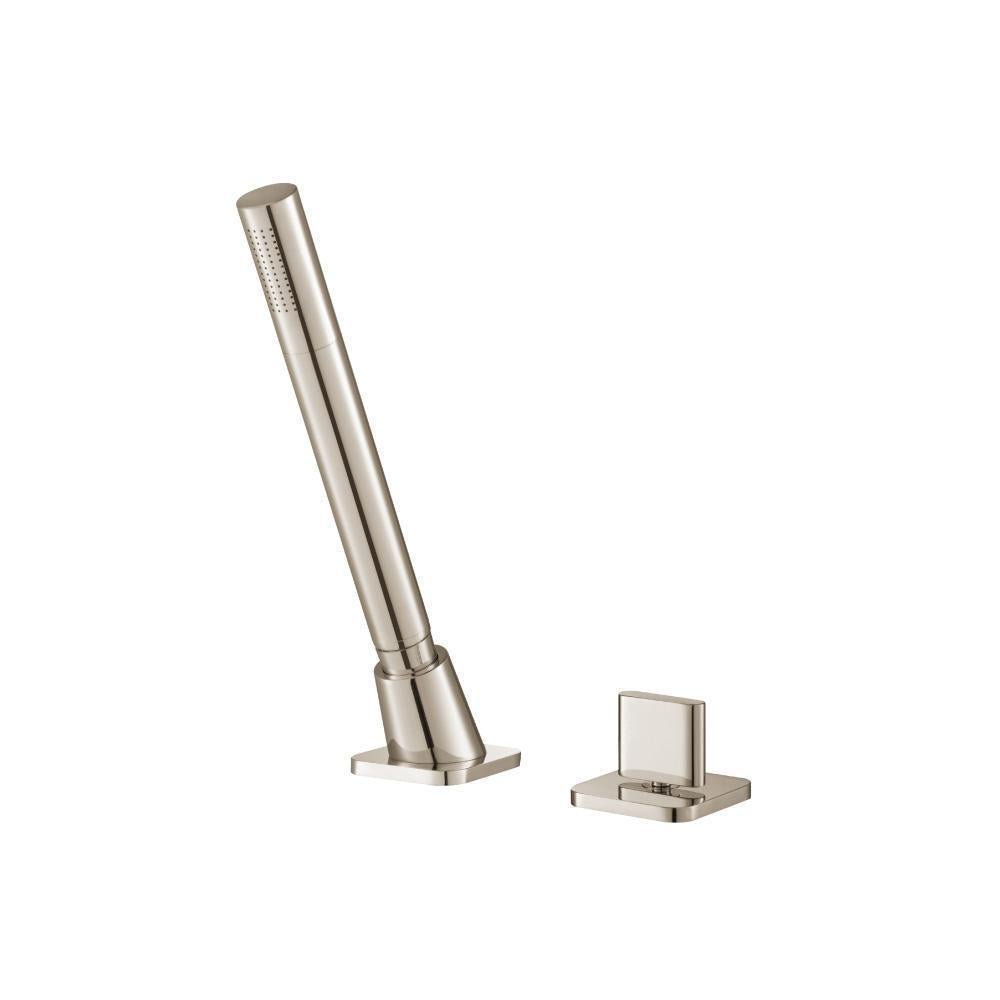

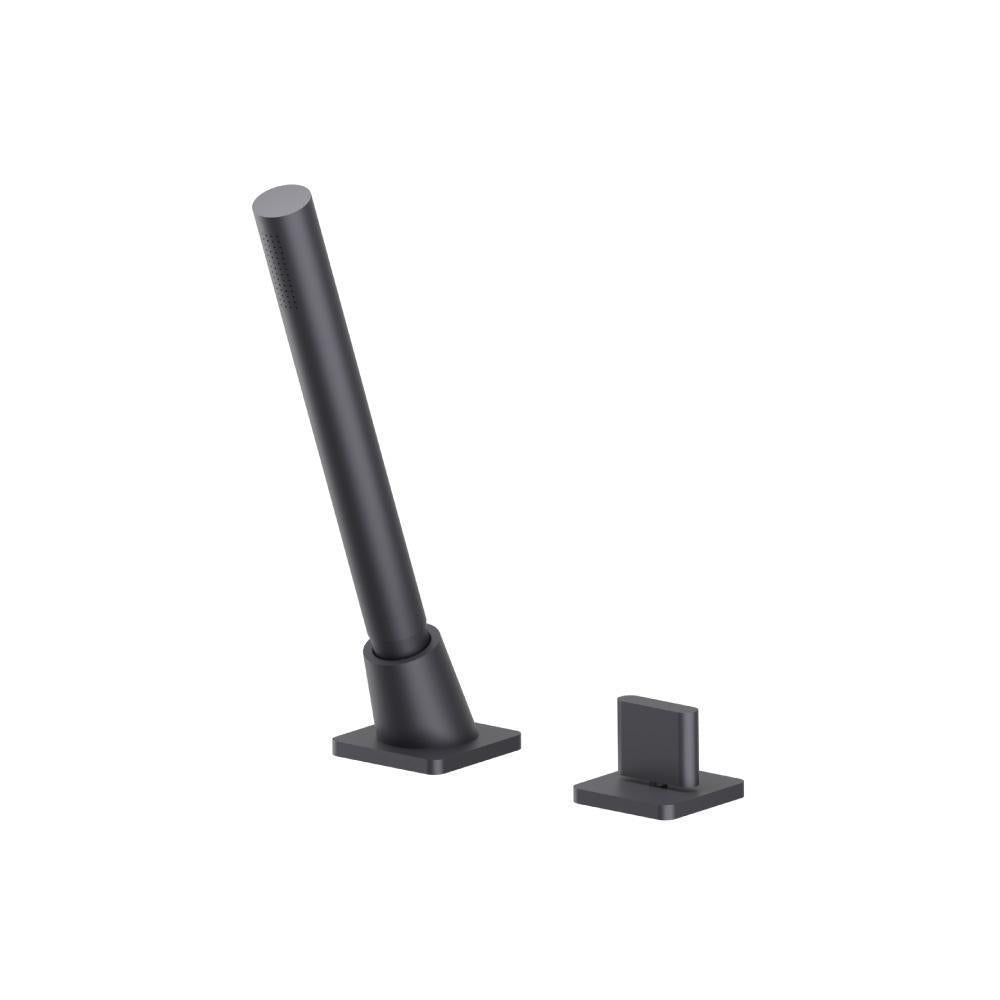

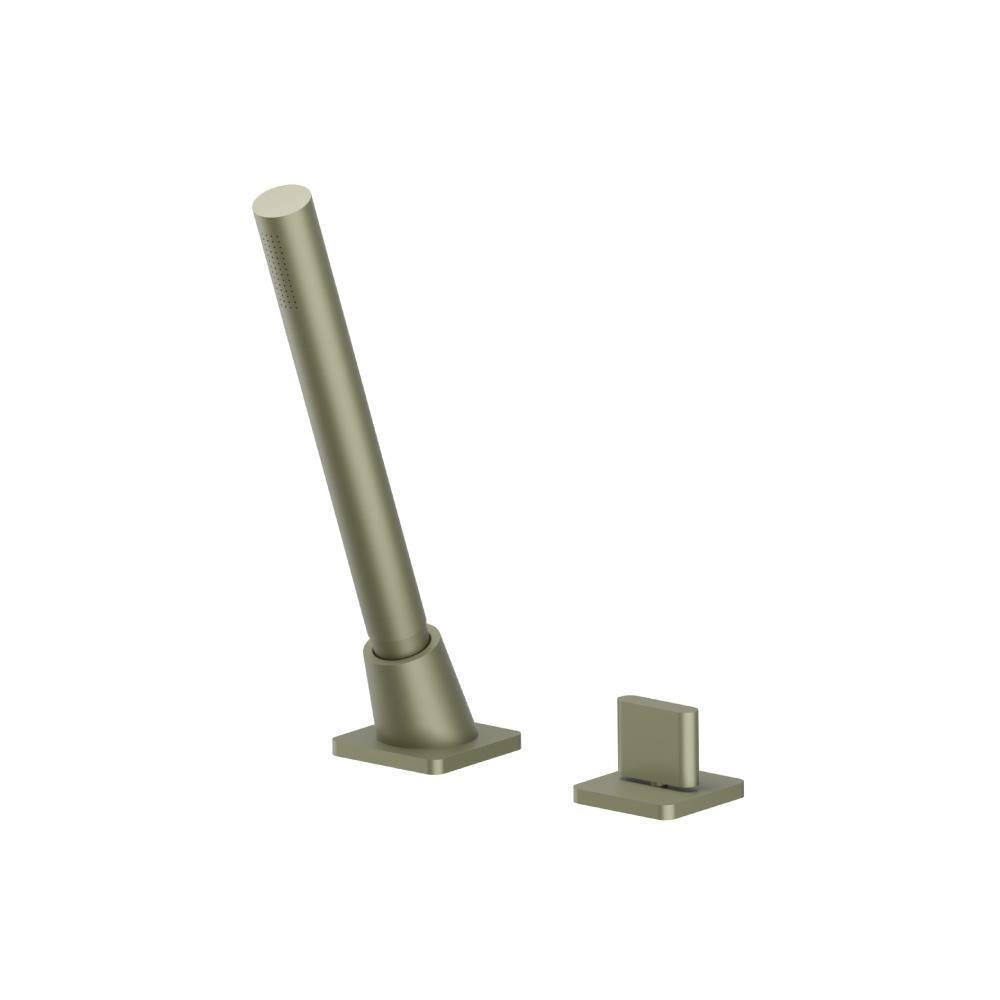

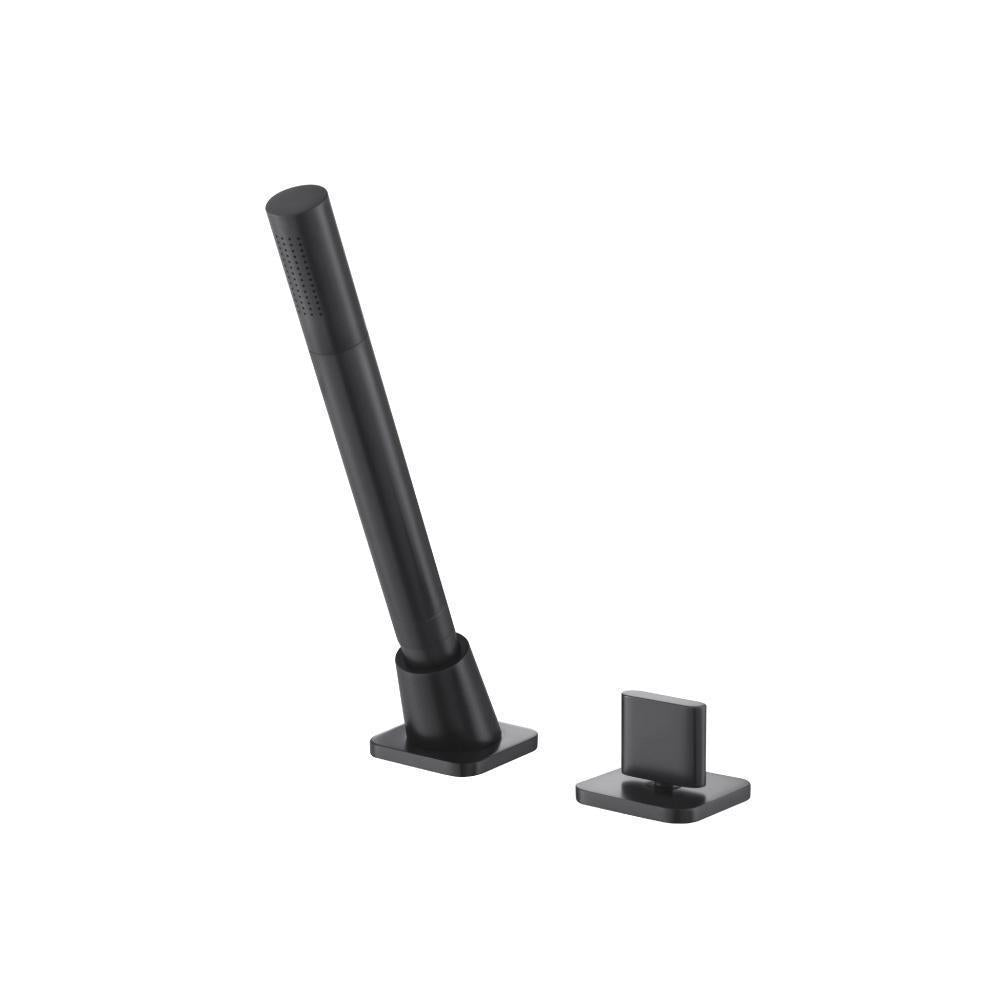

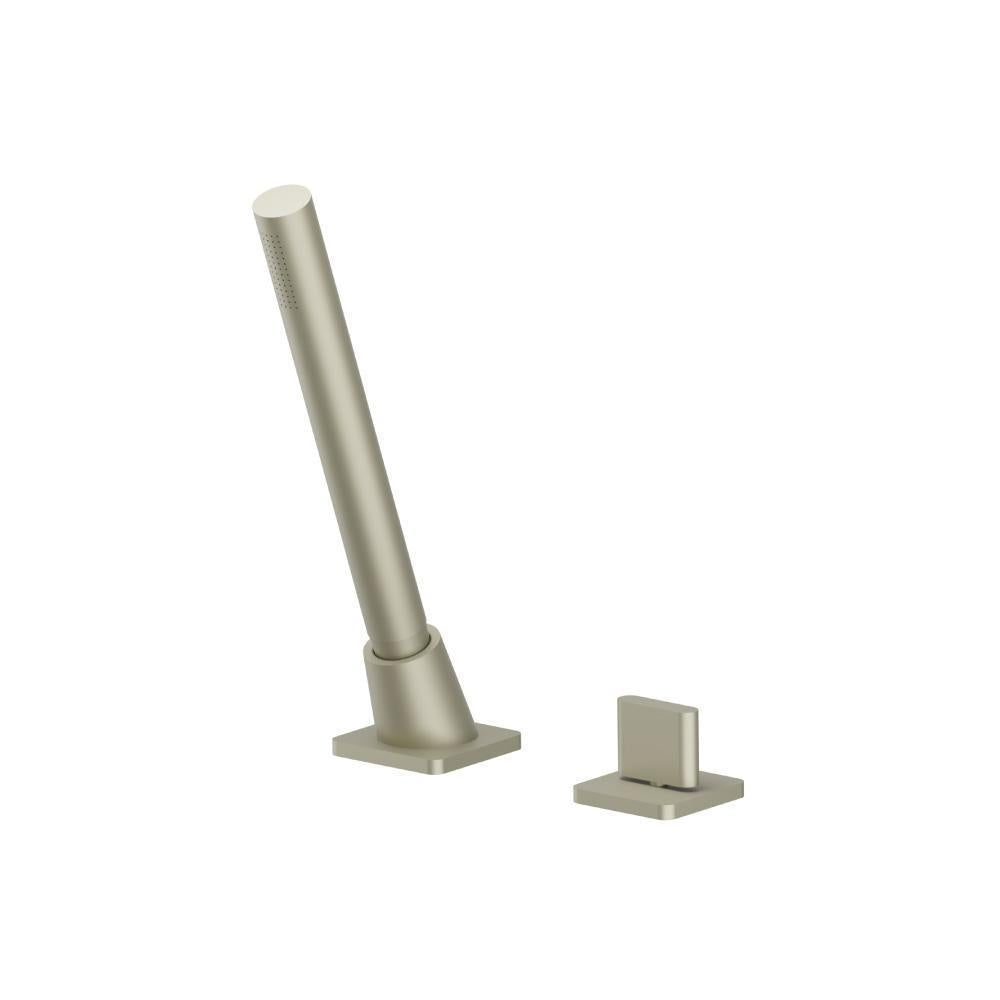

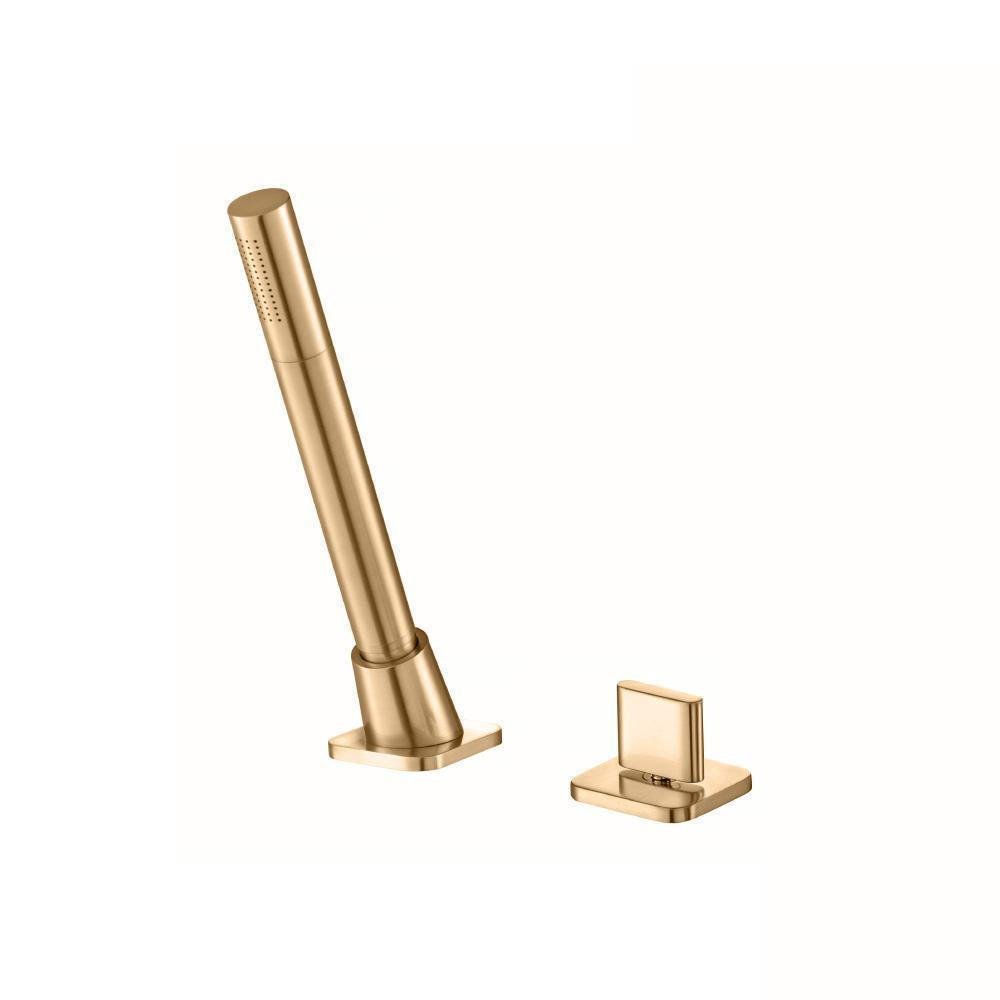

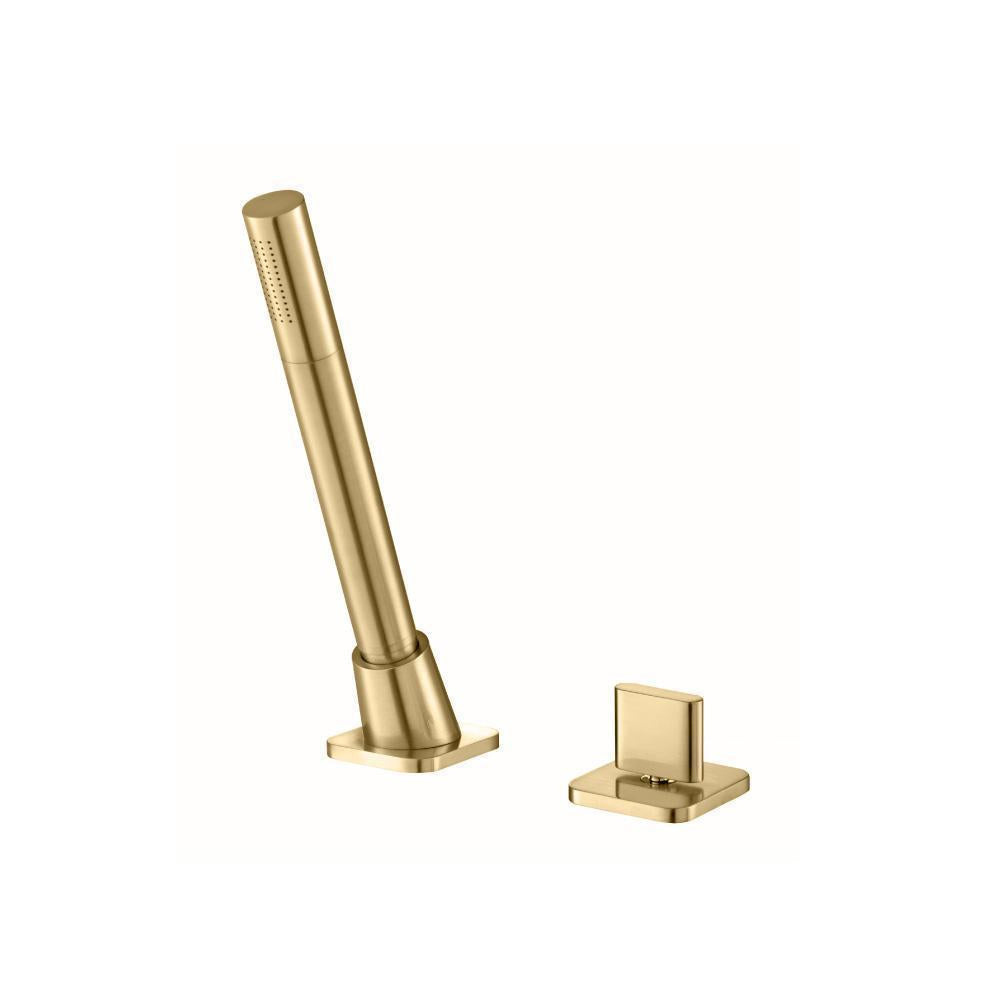

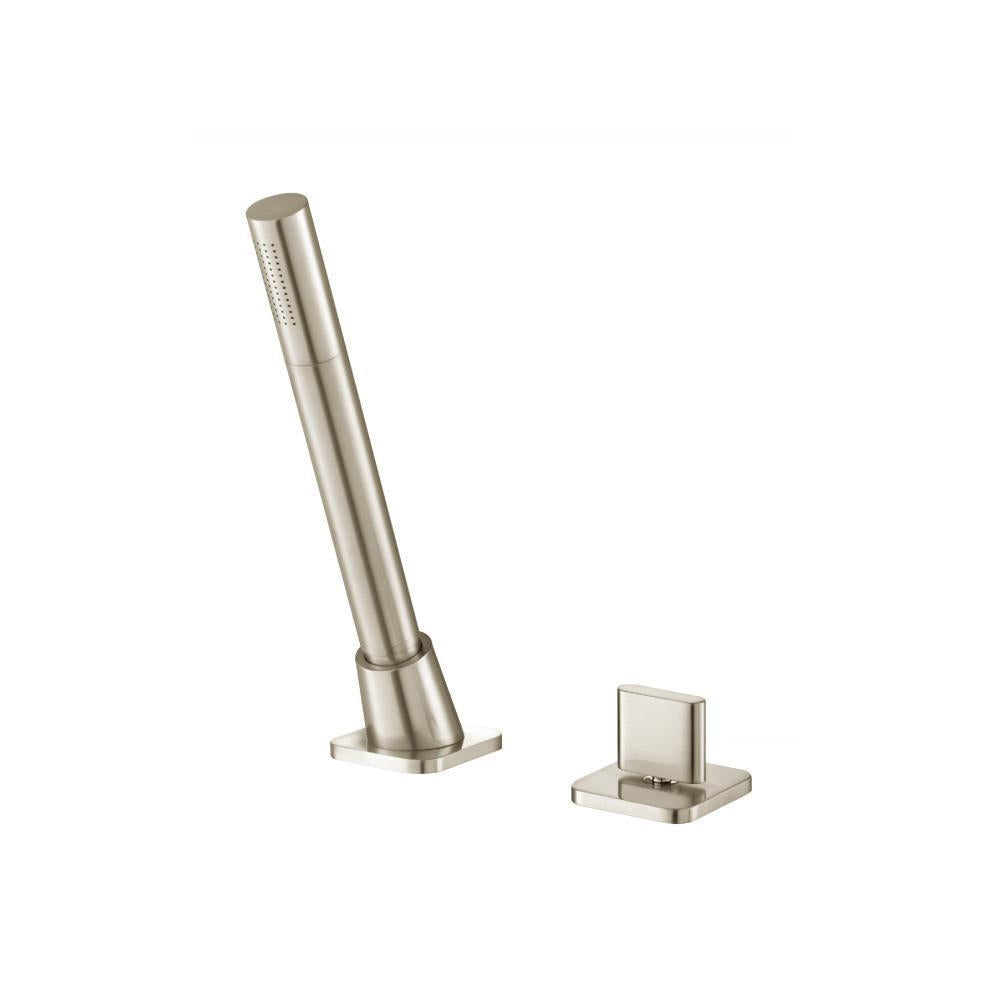

Flusso 260.1280 Deck Diverter With Holder & Hose

The 1280 series of deck diverters from Flusso Faucets are usually installed on a Tub deck and facilitate water diversion between a Deck or Wall Mount spout and a deck mount hand held shower head.

This deck diverter comes with a deck diverter valve installed under the tub deck [Flusso Part -Kamal- DKM.2420], Handles, Handheld Shower Head, Holder and all associated hoses and mounting hardware.

Flusso’s Deck diverter can be combined with any Three Hole Roman Tub faucet to add hand shower functionality. The deck diverter handle connects under-deck with the hot and cold side of the Three Hole Roman Tub faucet and diverts water between the Tub Spout and hand shower. Combine this deck diverter with the 260.2410 roman tub faucet or buy as a complete set [Part -Kamal- 260.2420]

Collection	Serie 260
Style	Contemporary / Modern
Warranty	Limited Lifetime Warranty. See Warranty page for complete details.

Features:

• Solid Brass Construction
• Requires under deck access for cartridge and spout swap out
• Two Hole Installation
• Deck Diverter controls flow between Spout and Hand Held
• Includes backflow prevention check valve
• Includes Diverter Valve DKM.2420

Specifications

Installation Type	Deck Mounted
Holes Required	2
Deck Hole Size (Hand Held)	1 ?"
Deck Hole Size (Diverter)	1 ?"
Max Deck Thickness	3 cm
Cartridge Type	Ceramic Disc
Diverter Cartridge	DKM.2420-9853
Hose Length	1.2m (47")
Hand Shower Back Flow Prevention	Included
Hand Shower Spray Functions	Single

Spec Sheet

Parts Diagram

Installation Docs
