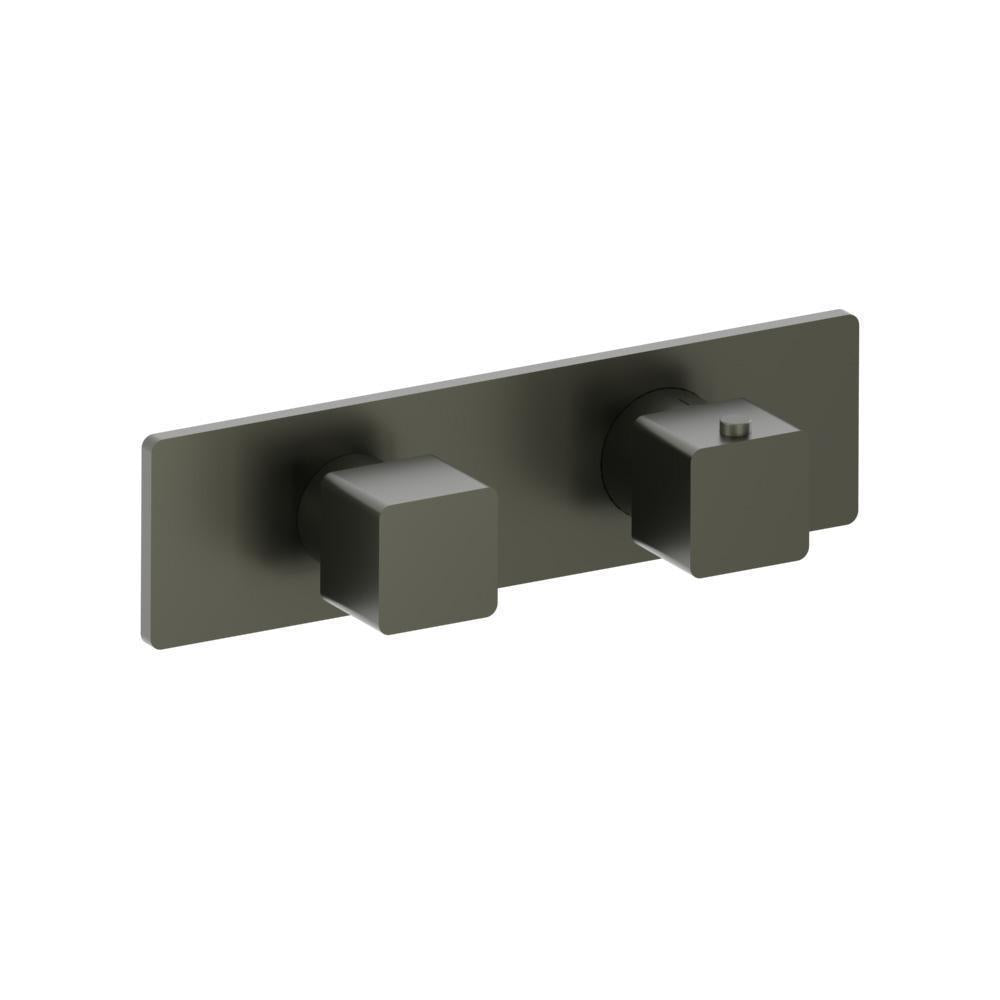

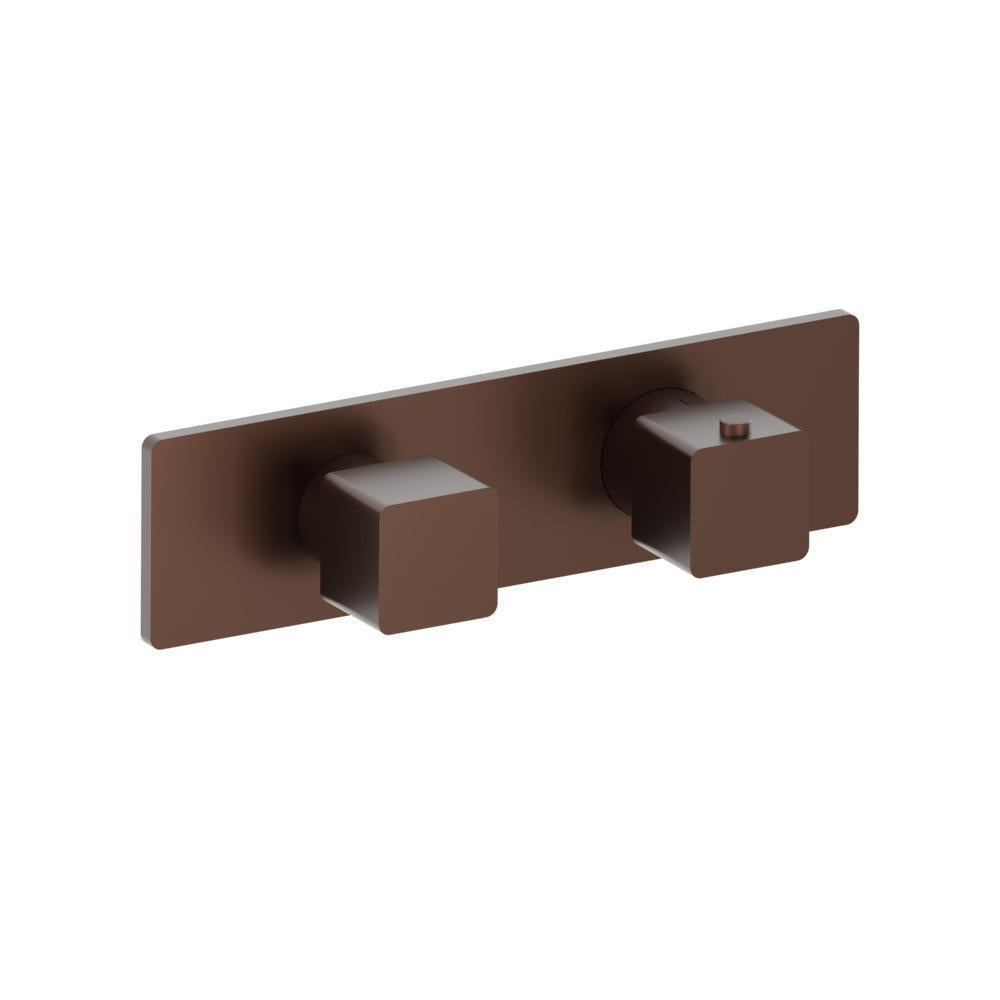

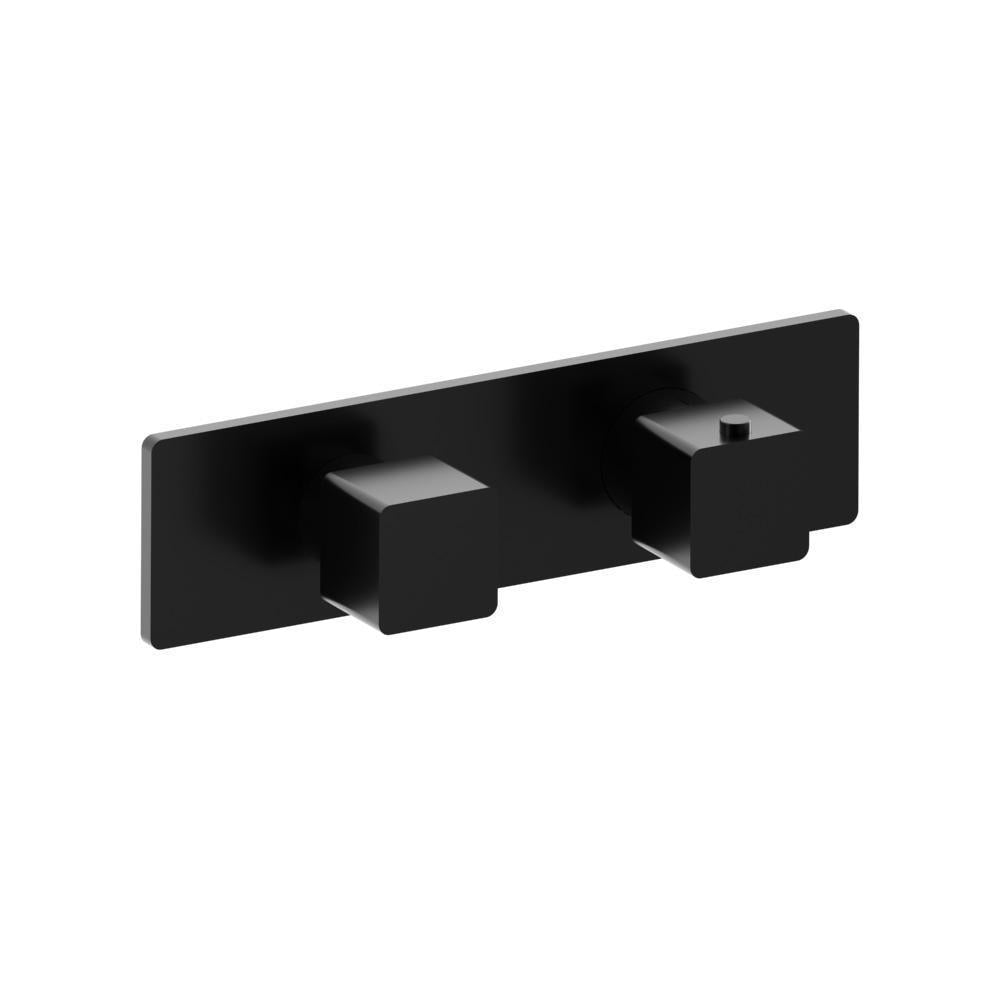

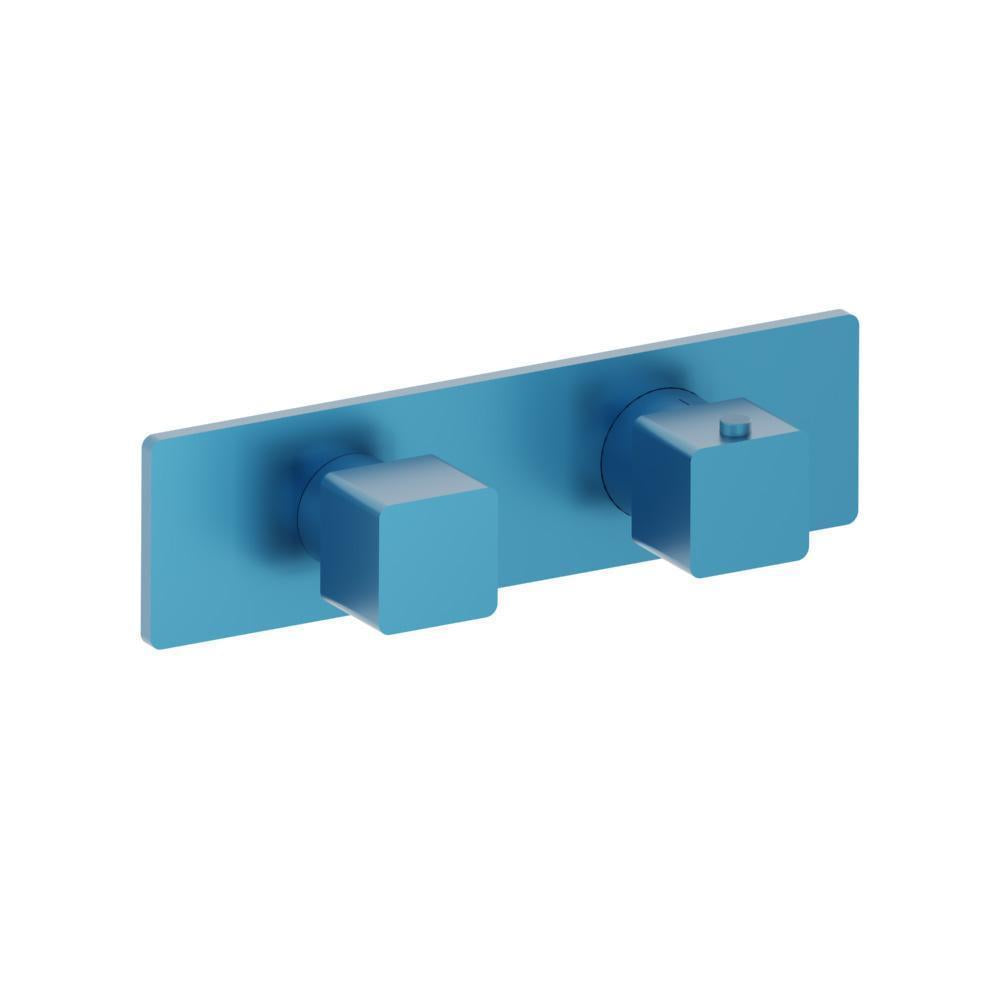

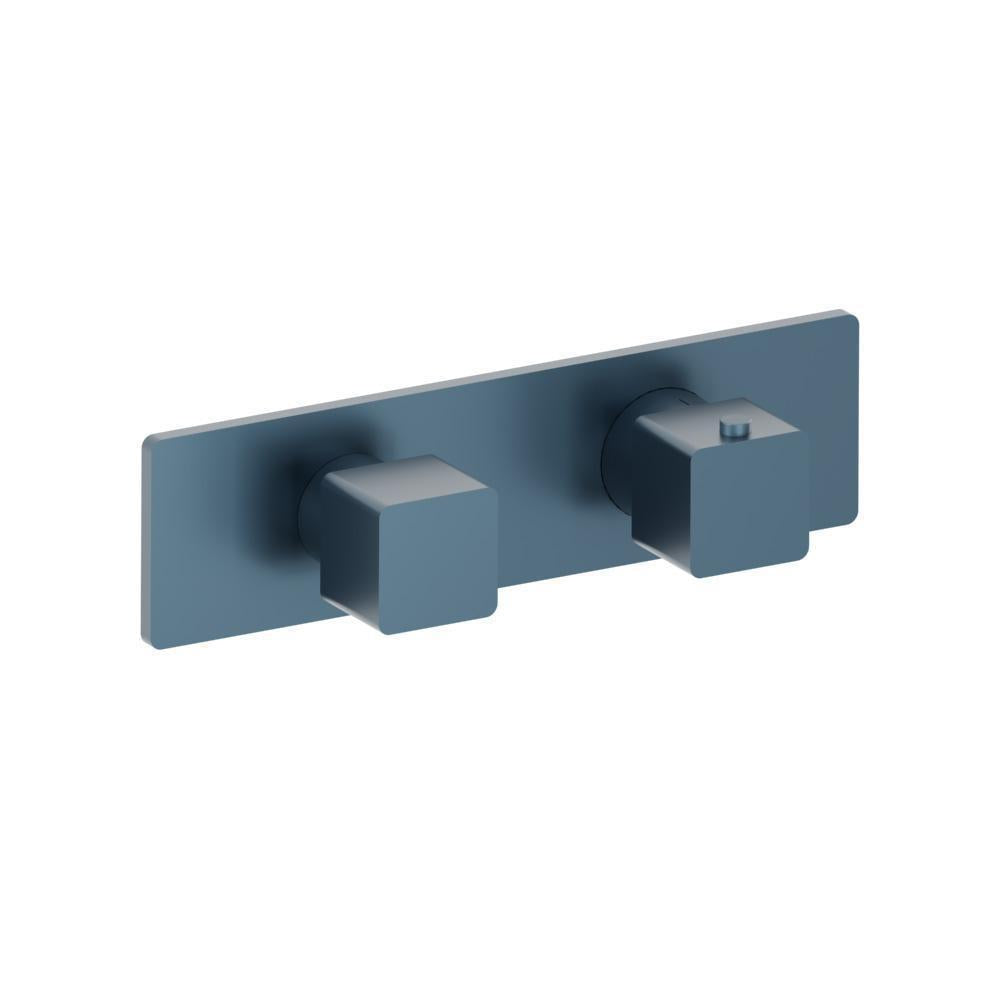

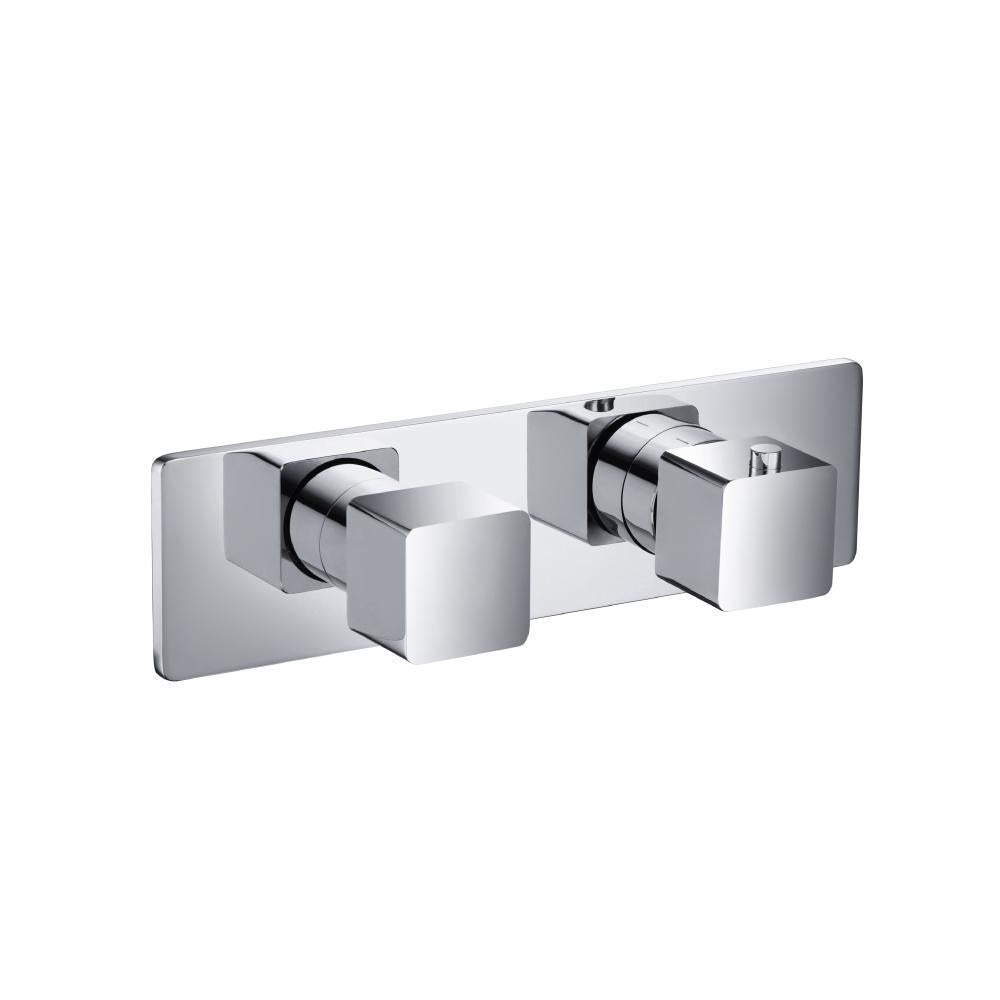

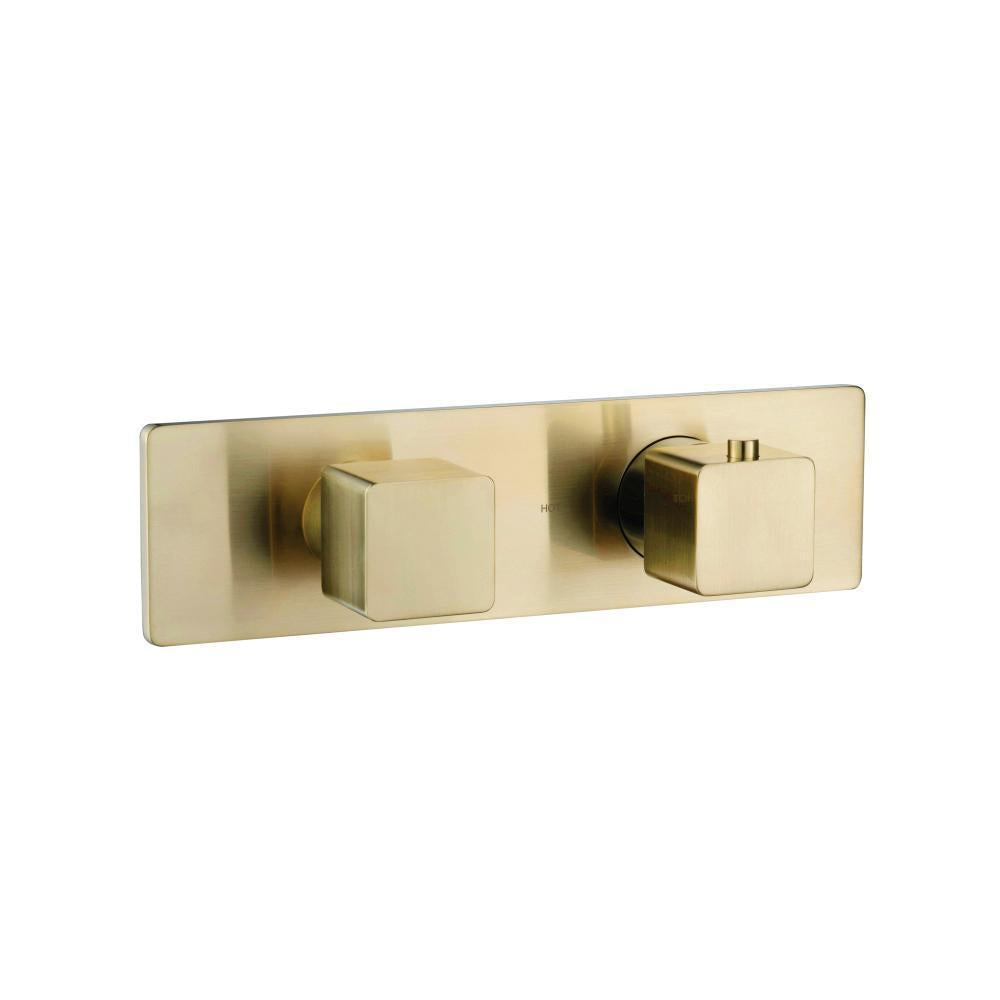

Flusso 196.2693T Trim For Thermostatic Valve

HANDLE OPERATION - The right handle is used to control the temperature of water flowing through the outlet ports. The left handle is used to turn water on and off and can control water diversion.

ANTI-SCALD RING - Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, the temperature of the water is regulated. Covering this ring is the handle knob which has a push-button on the side. To adjust the water temperature, one needs to press this button and move the handle to a hot or cold direction. Without pressing it, the user will not be able to rotate the handle to the full HOT position - as an anti-scald prevention mechanism. The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required) for it to function properly.

TRIMS - The trims comprise of a well-finished cover plate and handle knobs. The trim plate is used to cover the wall. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.

Collection	Serie 196
Style	Contemporary / Modern
Warranty	Limited Lifetime Warranty. See Warranty page for complete details.

Features:

• Solid Brass Construction
• For Use with TVH.2693, TVH.2717F, TVH.2705F Thermostatic Valves
• Valve Not Included - Trim Only
• Extensions Available - TVH.4101E**"

Specifications

Material	Brass
Valve	Not Included
Handles	Included
Number Of Handles	2
Anti-Scald Feature	Included
Handle Style	Knob
