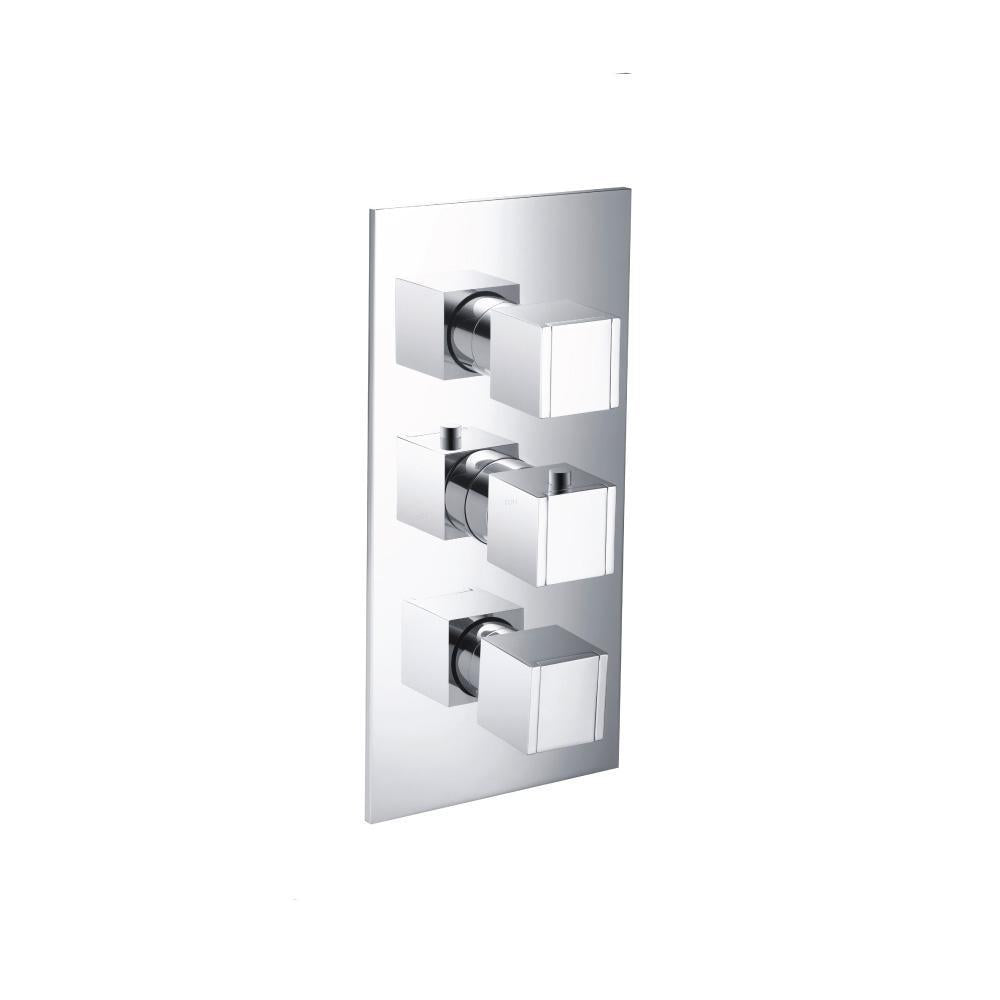

Flusso 150.4500T Trim For Thermostatic Valve
Flusso 150.4500T Trim For Thermostatic Valve
Regular price
$321.00 USD
Regular price
$428.00 USD
Sale price
$321.00 USD
Unit price
per
Shipping calculated at checkout.
Handle Operation -The middle handle is used to control the temperature of water flowing through the outlet. The top handle can control the volume of water from full flow to a trickle for various output ports. The bottom handle can control the volume of water from full flow to a trickle for the various output ports.
Cut Out Dimensions - The cut out in wall should be 8.81 X 4.44 Inches and no more - this will ensure that the trim plate will cover the cut-out hole in the wall.
Trims - The trims comprise of a well finished cover plate and handle knobs constructed in solid Brass. Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, temperature of the water is regulated. Covering this ring is the temperature handle knob which has a push button on the side. To adjust the water temperature, one needs to press this button and move the handle to hot or cold direction. Without pressing it, the user will not be able to rotate the handle to the full HOT position - as an anti-scald prevention mechanism. The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required) for it to function properly.
Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
Cut Out Dimensions - The cut out in wall should be 8.81 X 4.44 Inches and no more - this will ensure that the trim plate will cover the cut-out hole in the wall.
Trims - The trims comprise of a well finished cover plate and handle knobs constructed in solid Brass. Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, temperature of the water is regulated. Covering this ring is the temperature handle knob which has a push button on the side. To adjust the water temperature, one needs to press this button and move the handle to hot or cold direction. Without pressing it, the user will not be able to rotate the handle to the full HOT position - as an anti-scald prevention mechanism. The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required) for it to function properly.
Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
| Collection | Serie 150 |
| Style | Contemporary / Modern |
| Warranty | Limited Lifetime Warranty. See Warranty page for complete details. |
Features:
- Solid Brass Construction
- Valve Not Included - Trim Only
- Extensions Available - TVH.4401E**
Specifications
| Material | Brass |
| Valve | Not Included |
| Handles | Included |
| Number Of Handles | 3 |
| Anti-Scald Feature | Included |
