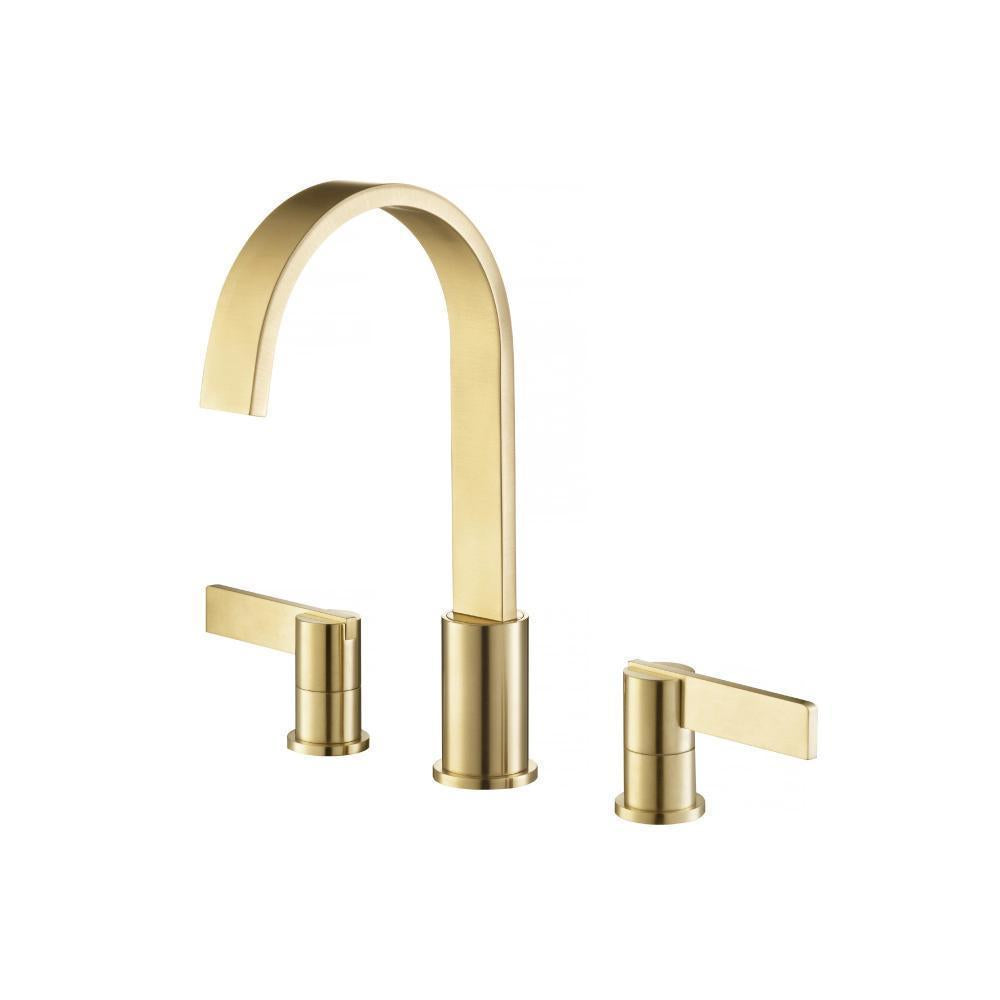

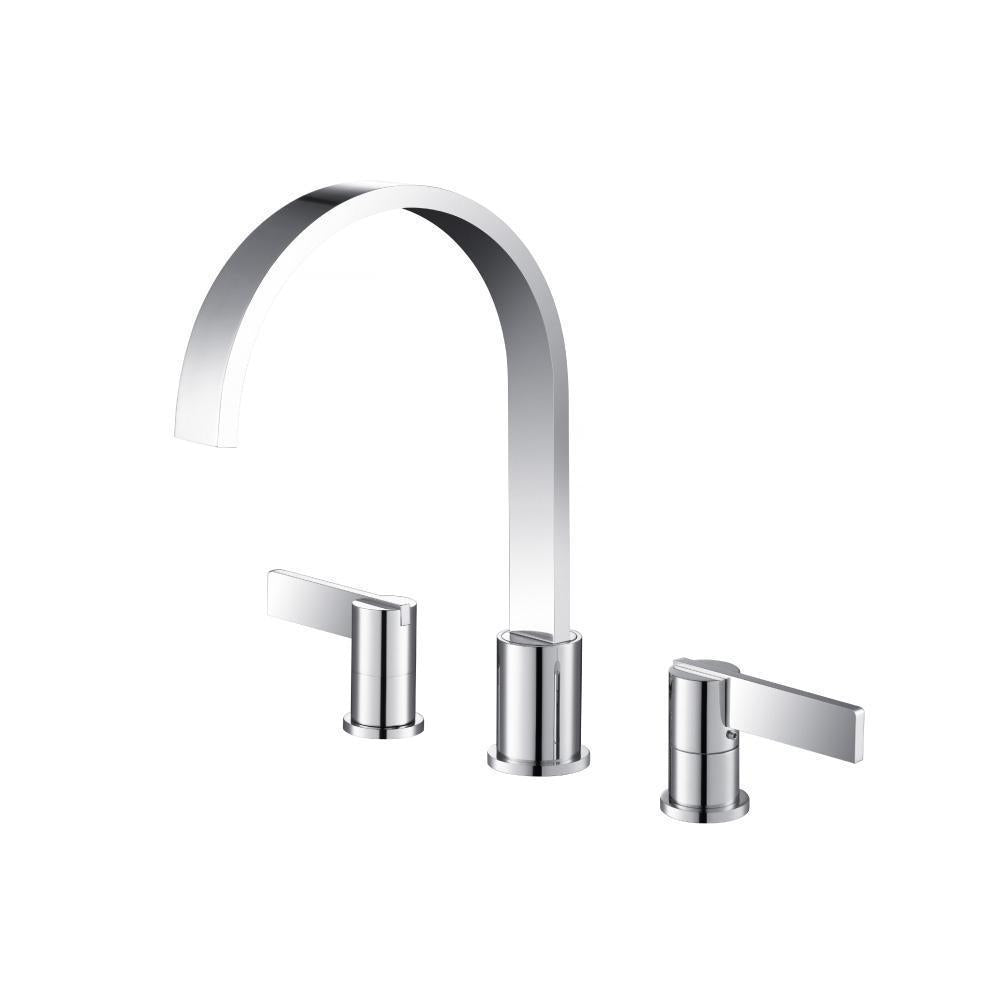

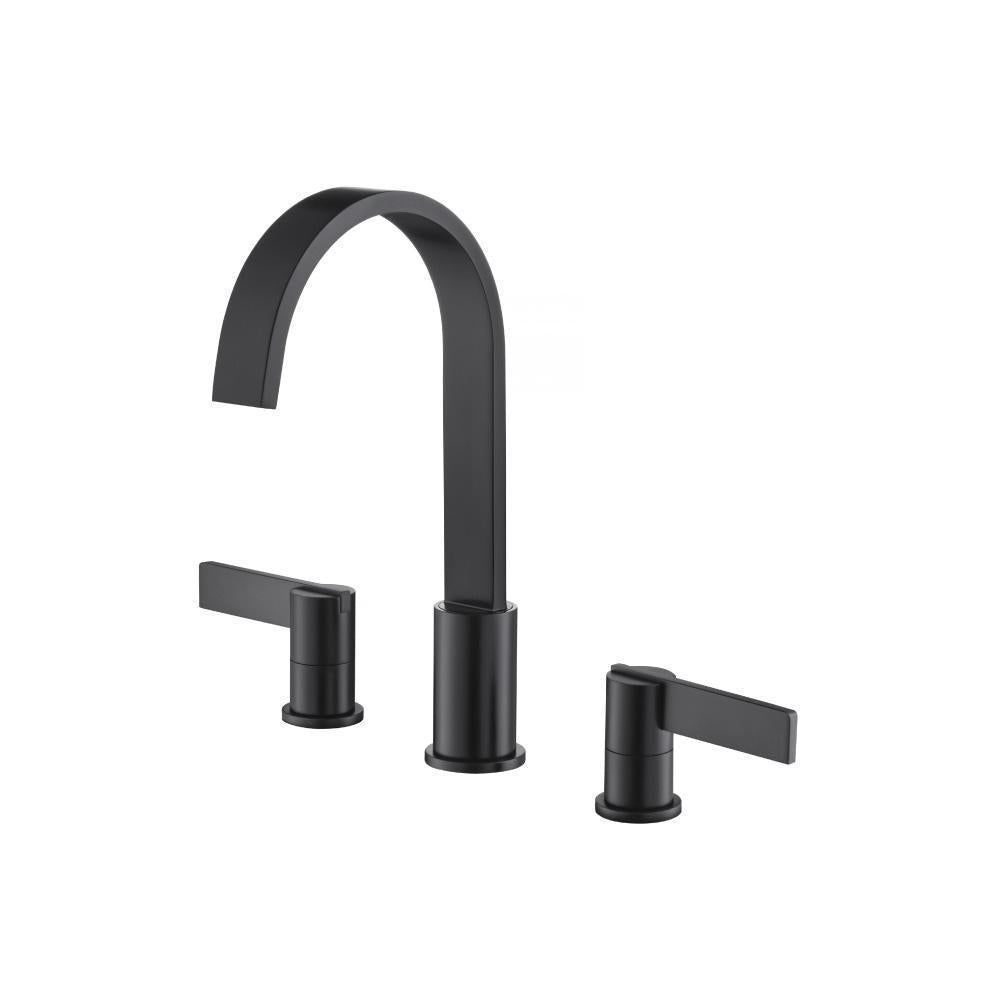

Flusso 145.2410 3 Hole Deck Mount Roman Tub Faucet

Three Hole Deck Mount Bathtub faucets have a separate hot and cold handle and are installed on the deck next to the edge of the bathtub with 3 drilled holes that are each about 4 inches apart. The faucet body and handles are all separate pieces with volume control valves concealed under the tub.

ADA COMPLIANCE: This 3 Hole Deck Mount Roman Tub Faucet from Flusso Faucets is ADA Compliant. .

DECK HOLE SIZE: This 3 Hole Deck Mount Roman Tub faucets from Flusso Faucets fit into a deck hole size of 1 3/8? for the spout and 1.20" for the handles.

CRITICAL DIMENSIONS: Critical dimensions for Three Hole Roman Tub faucets include the height and spout reach. Reviewing this information will ensure that when it is used with the chosen tub, splash is minimized. .

Collection	Serie 145
Style	Contemporary / Modern
Warranty	Limited Lifetime Warranty. See Warranty page for complete details.

Features:

• Solid Brass Construction
• 3 Hole Installation
• Includes Valve Set
• Requires under deck access for cartridge and spout swap out
• 7.48” Tub Spout Reach

Specifications

ADA Compliant	Yes
Installation Type	Deck Mounted
Flow Rate	7 GPM @ 60 PSI
Max Deck Thickness	3 cm
Material	Brass
Cartridge Type	Ceramic Disc
Holes Required	3
Hot Side Cartridge	160.2400-18000
Cold Side Cartridge	160.2400-18001
Deck Hole Size (Spout)	1 3/8"
Deck Hole Size (Handles)	1.2"
Connection Size	1/2" Male
