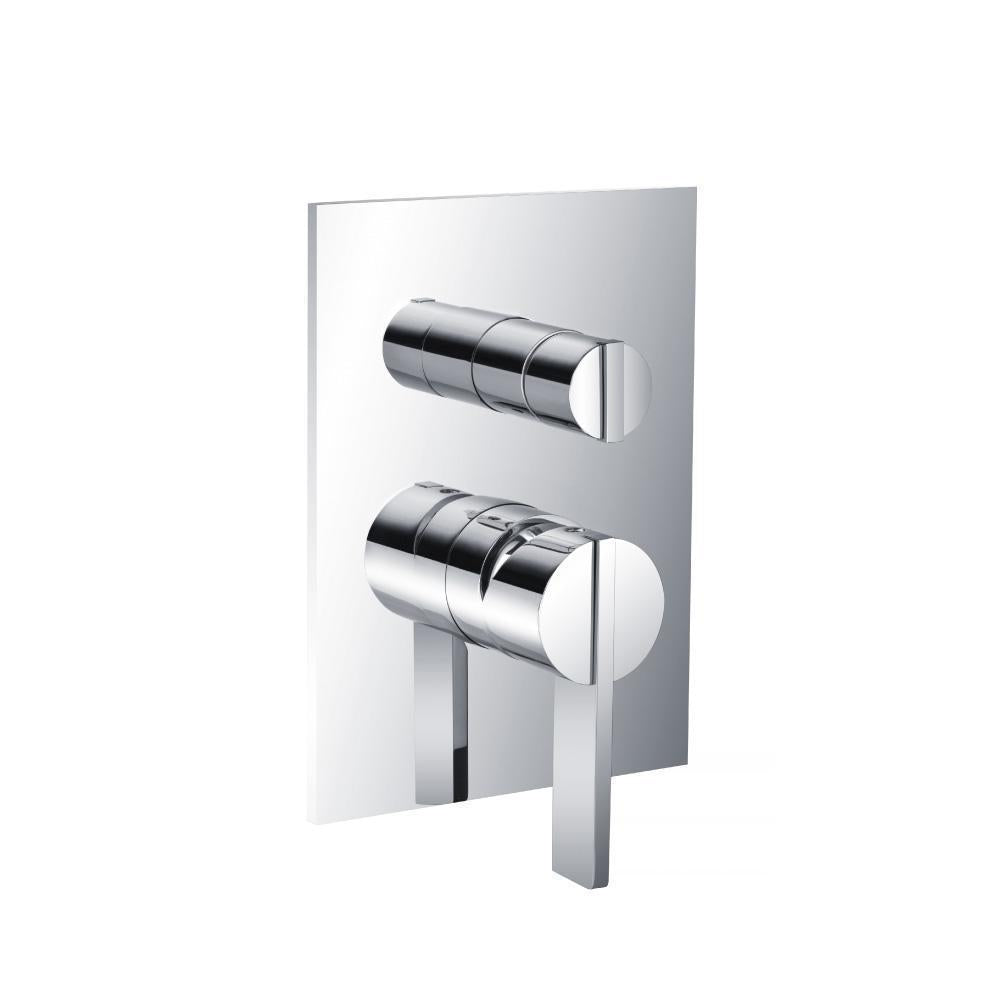

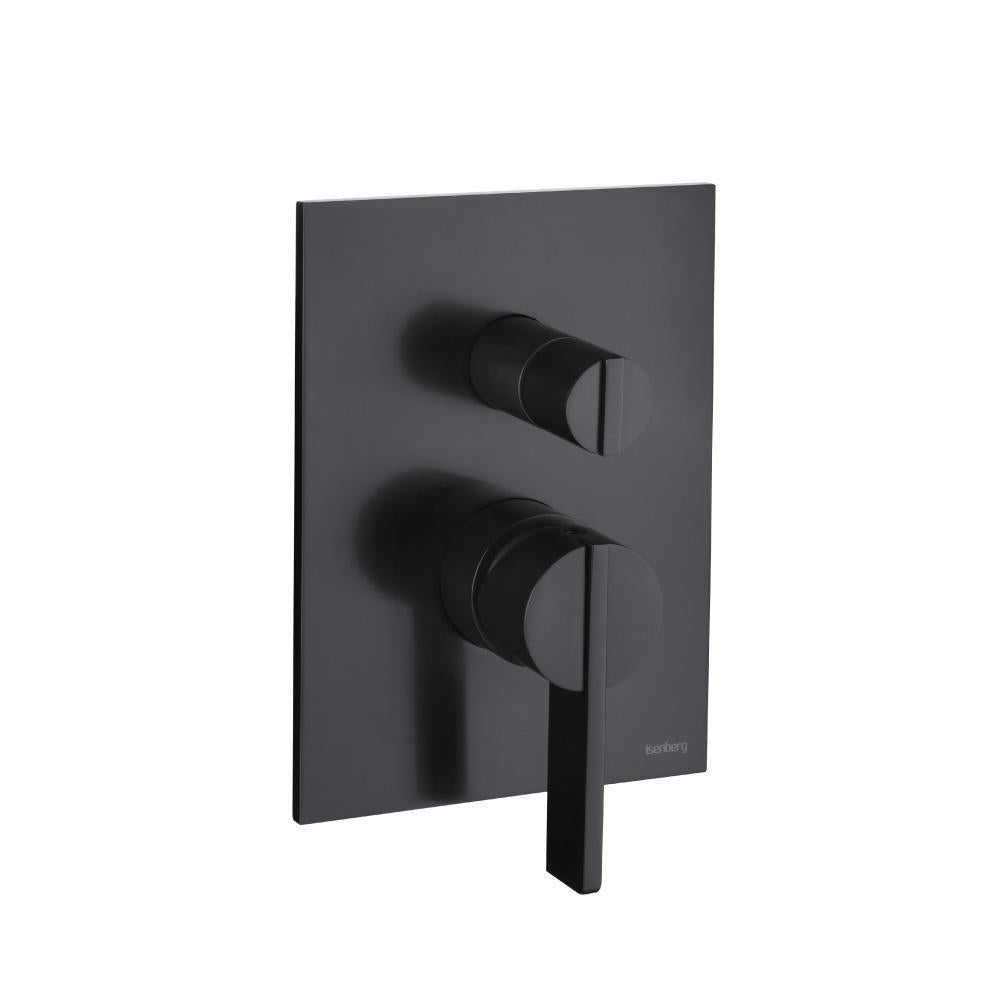

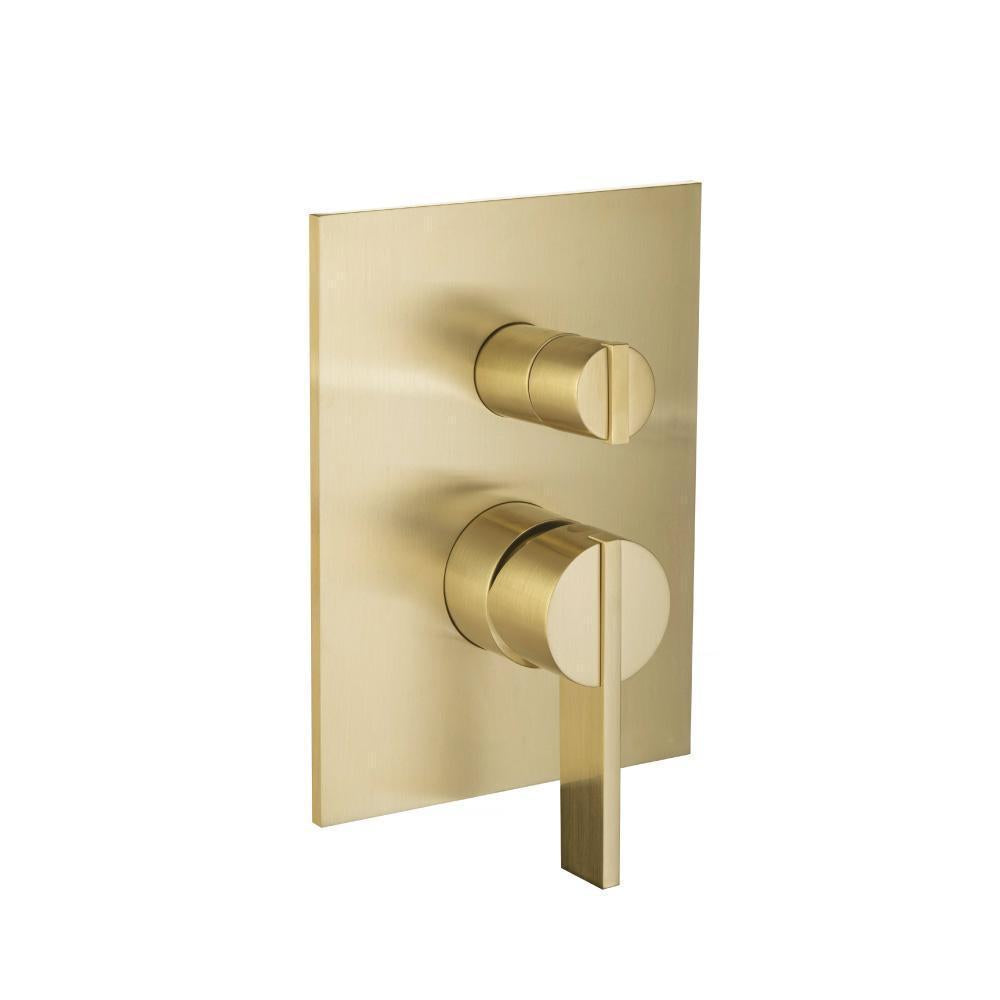

Flusso 145.2100 Tub/Shower Trim With Pressure Balance Valve - 2-Output
Flusso 145.2100 Tub/Shower Trim With Pressure Balance Valve - 2-Output
Regular price
$572.25 USD
Regular price
$763.00 USD
Sale price
$572.25 USD
Unit price
per
Shipping calculated at checkout.
The PBV1005A - Pressure Balance valve with integrated 2-output diverter has a ½” NPT male connection with two inputs for hot/cold water and two output ports. The valve has a flow rate of 5.5 GPM @ 60 PSI.
Supply Stops - There are two safety stops at each water inlet to prevent water flow in case of installation and repairs.
Handle Operation - The volume and temperature of water is controlled by the lower handle. Lift the lower handle to control the volume and as the handle is moved between left and right, the temperature changes. Move it right for cold and left for hot water. The diverter handle on the top helps in directing the flow from the two outputs of the valve. When diverter handle points left, the water flows through the lower output. When the diverter handle points right, the top output is activated for water flow.
Cut Out Dimensions - The cut out in wall should be 5.43” x 4.76” Inches which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut out hole in the wall.
Trims - The trim set for PBV1005A consists of a trim plate and handle knobs for both top and bottom cartridge. The trim plate has markings for hot/cold. Extension kits for both handles can be ordered separately in case the handles need to be extended for proper fit. Any *2100 or *2101 series trim can be used with this valve. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
Supply Stops - There are two safety stops at each water inlet to prevent water flow in case of installation and repairs.
Handle Operation - The volume and temperature of water is controlled by the lower handle. Lift the lower handle to control the volume and as the handle is moved between left and right, the temperature changes. Move it right for cold and left for hot water. The diverter handle on the top helps in directing the flow from the two outputs of the valve. When diverter handle points left, the water flows through the lower output. When the diverter handle points right, the top output is activated for water flow.
Cut Out Dimensions - The cut out in wall should be 5.43” x 4.76” Inches which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut out hole in the wall.
Trims - The trim set for PBV1005A consists of a trim plate and handle knobs for both top and bottom cartridge. The trim plate has markings for hot/cold. Extension kits for both handles can be ordered separately in case the handles need to be extended for proper fit. Any *2100 or *2101 series trim can be used with this valve. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
| Collection | Serie 145 |
| Style | Contemporary / Modern |
| Warranty | Limited Lifetime Warranty. See Warranty page for complete details. |
Features:
- Solid Brass Construction
- Includes Pressure Balance Valve w/ Service Stops
- Lift Handle to control Volume. Turn left for Hot. Right for Cold.
- Extension Available - PBV.2100E**
Specifications
| Connection Size | 1/2" Male |
| Integrated Volume Control | Yes |
| Valve Included | Yes |
| Valve Type | Pressure Balance |
| Installation Type | Wall Mounted |
| Extensions Available | Yes |
| Material | Brass |
| Anti-Scald Ring | Included |
| Supply Stops | Included |
| Temperature Cartridge | PBV1005A-9853 |
| Diverter Cartridge - Non Shared | PBV1005A-1991 |
| Diverter Cartridge - Shared | PBV1005A-1991-G1 |
| Flow Rate | 5.5 GPM @ 60 PSI |
