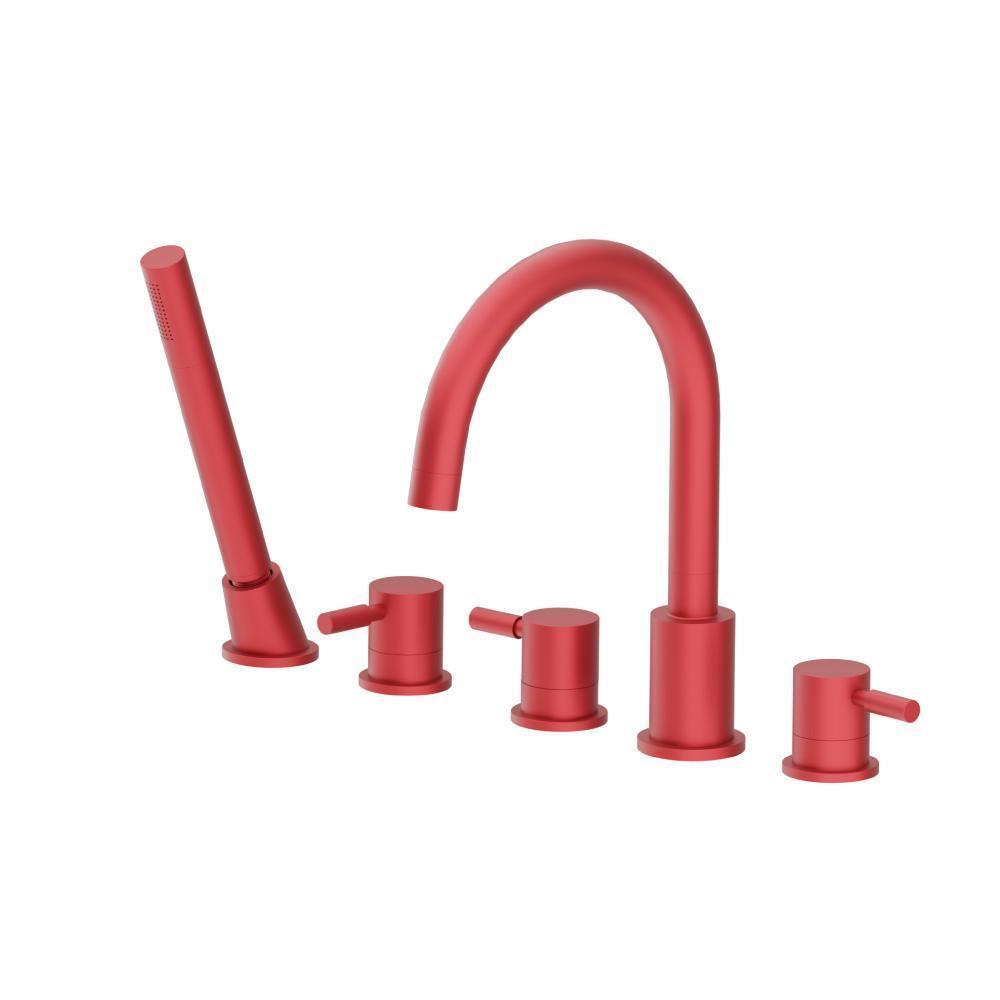

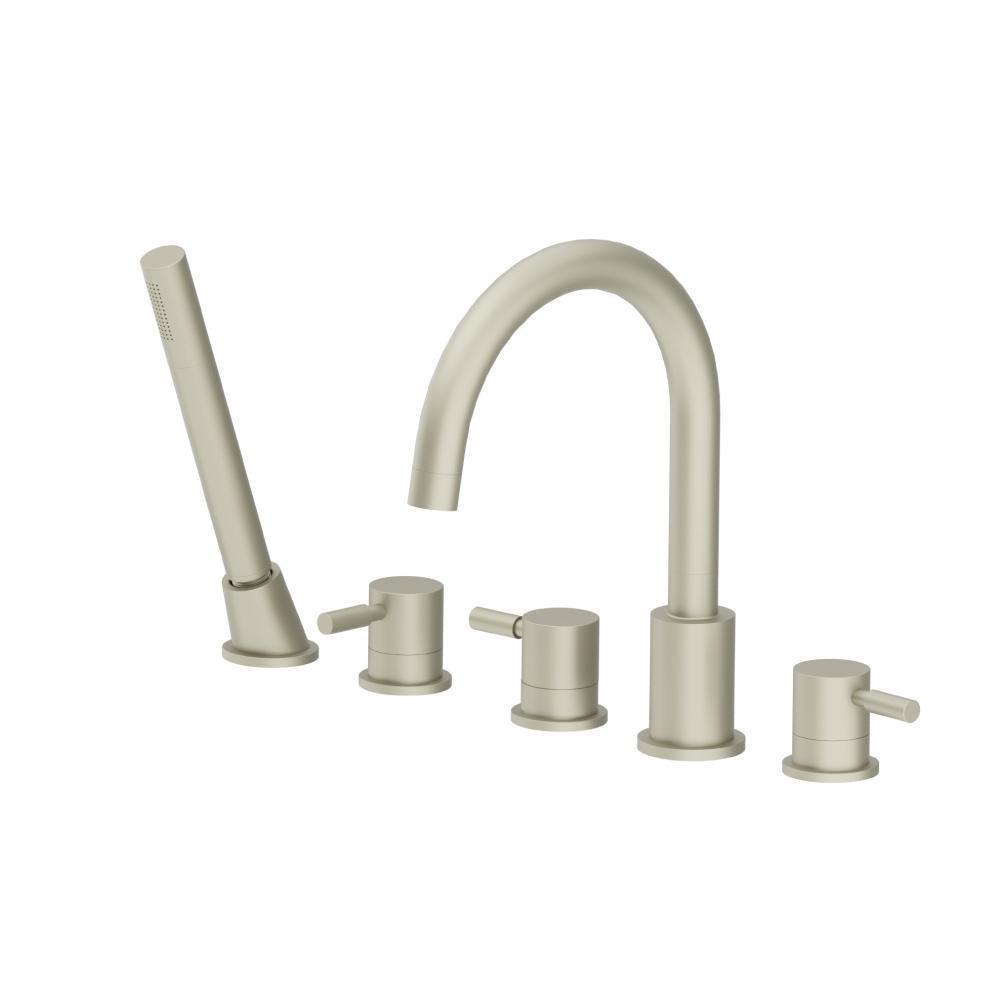

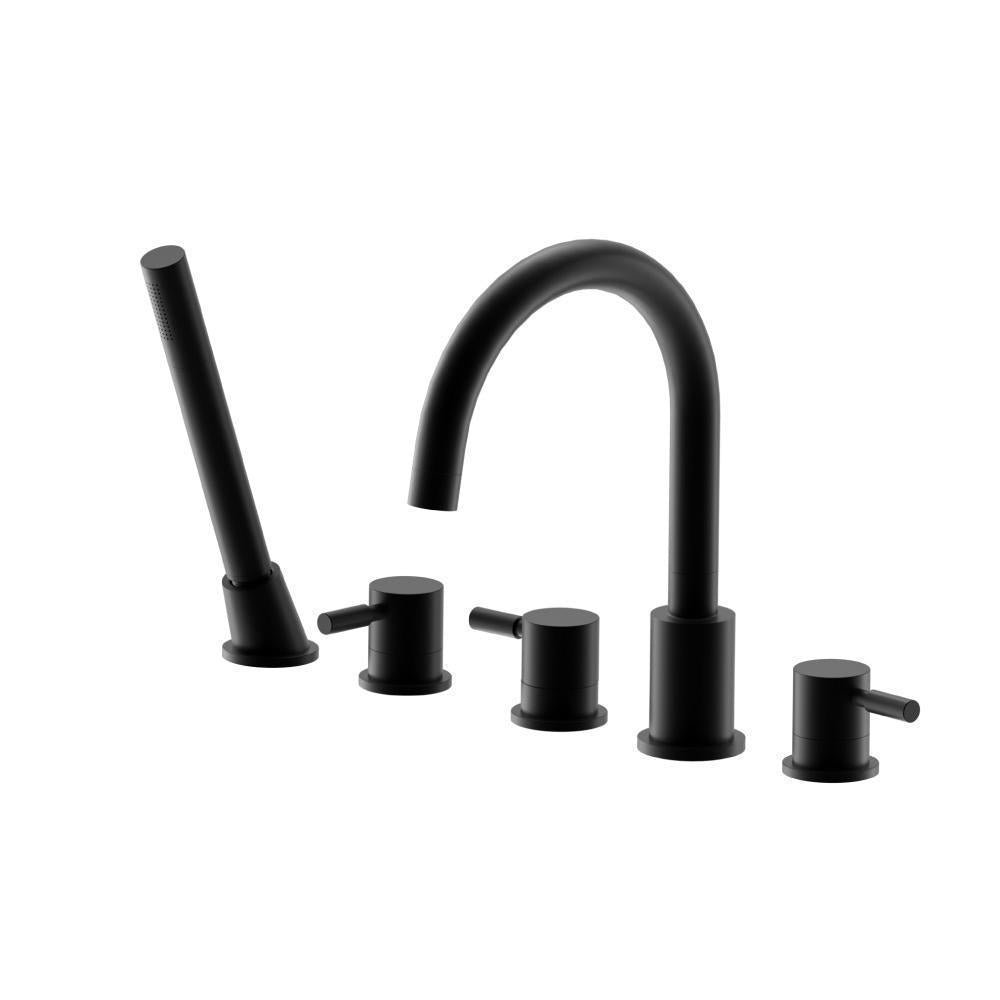

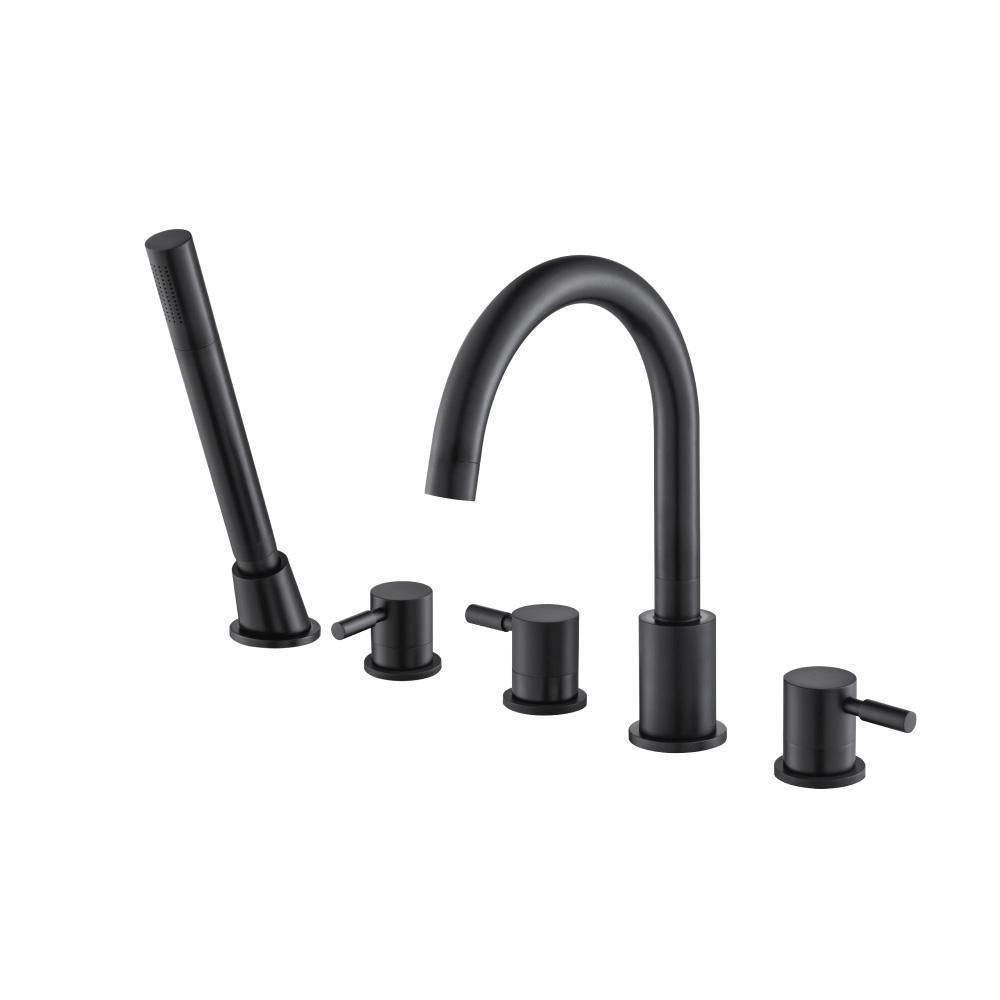

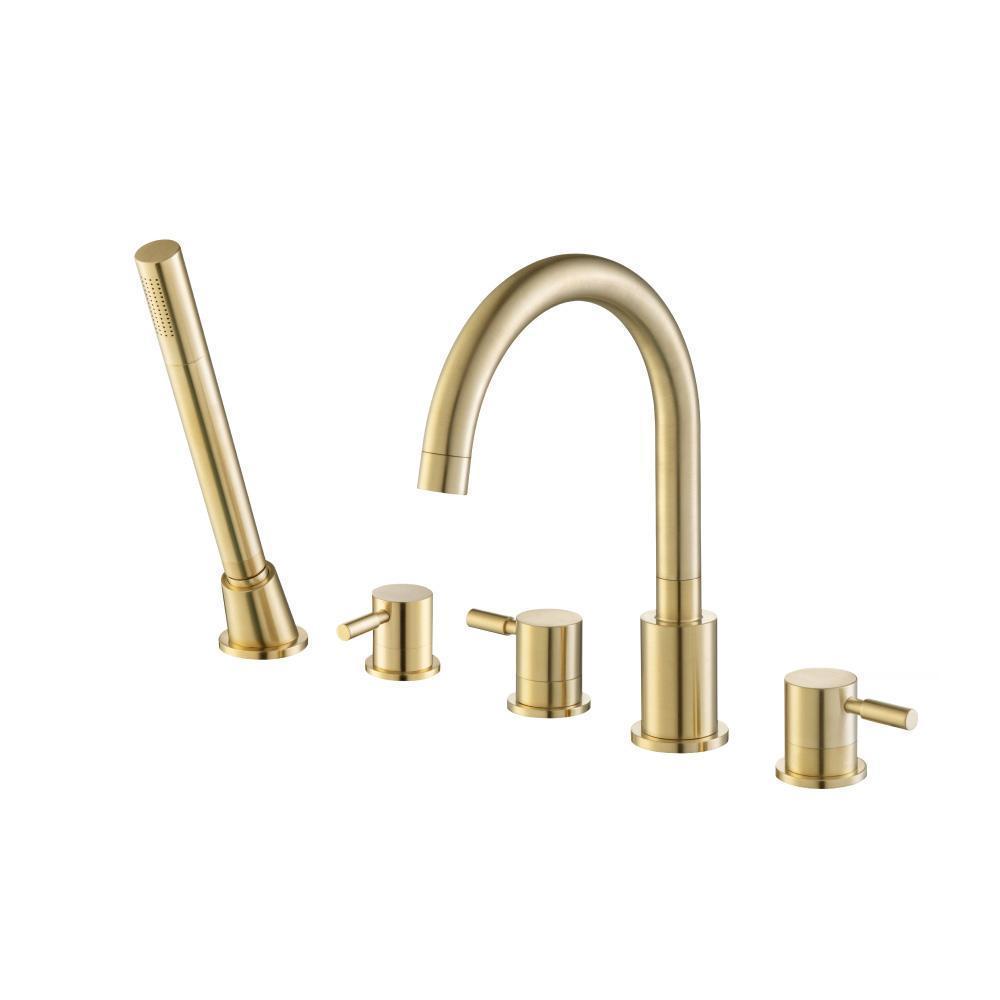

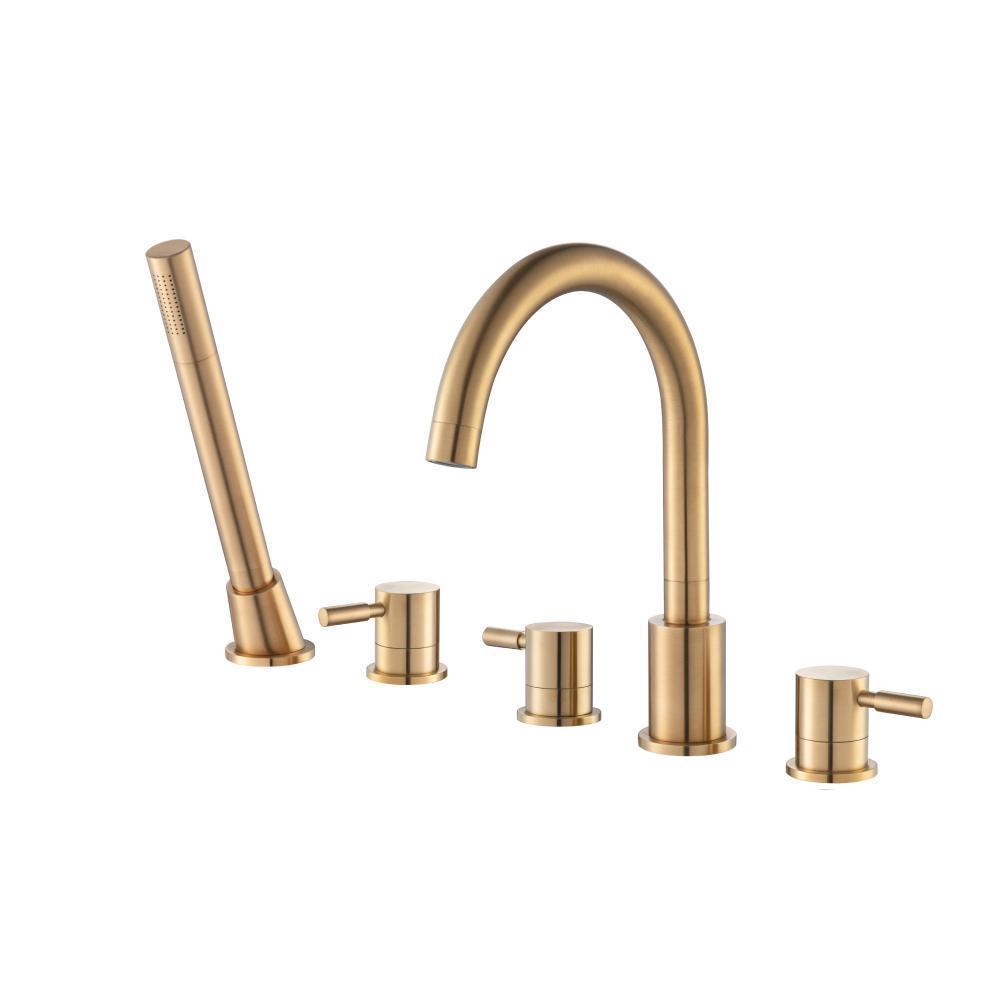

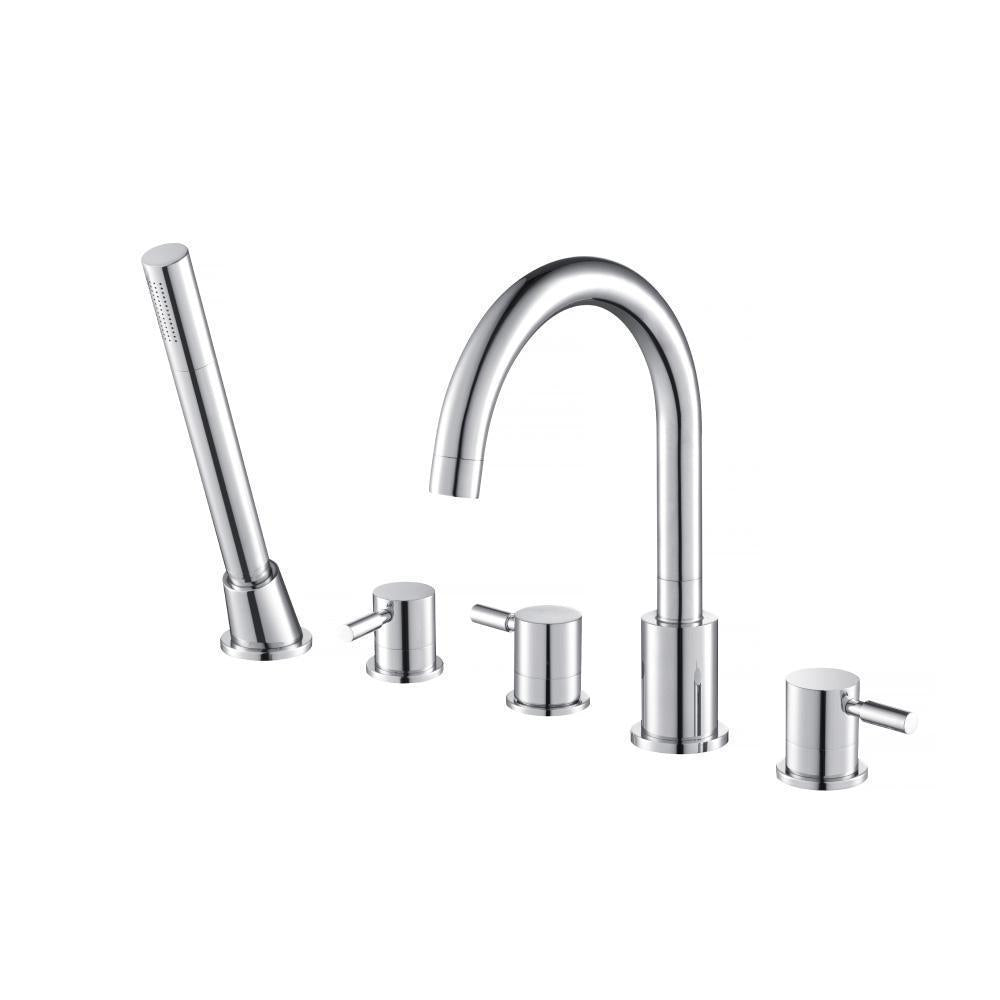

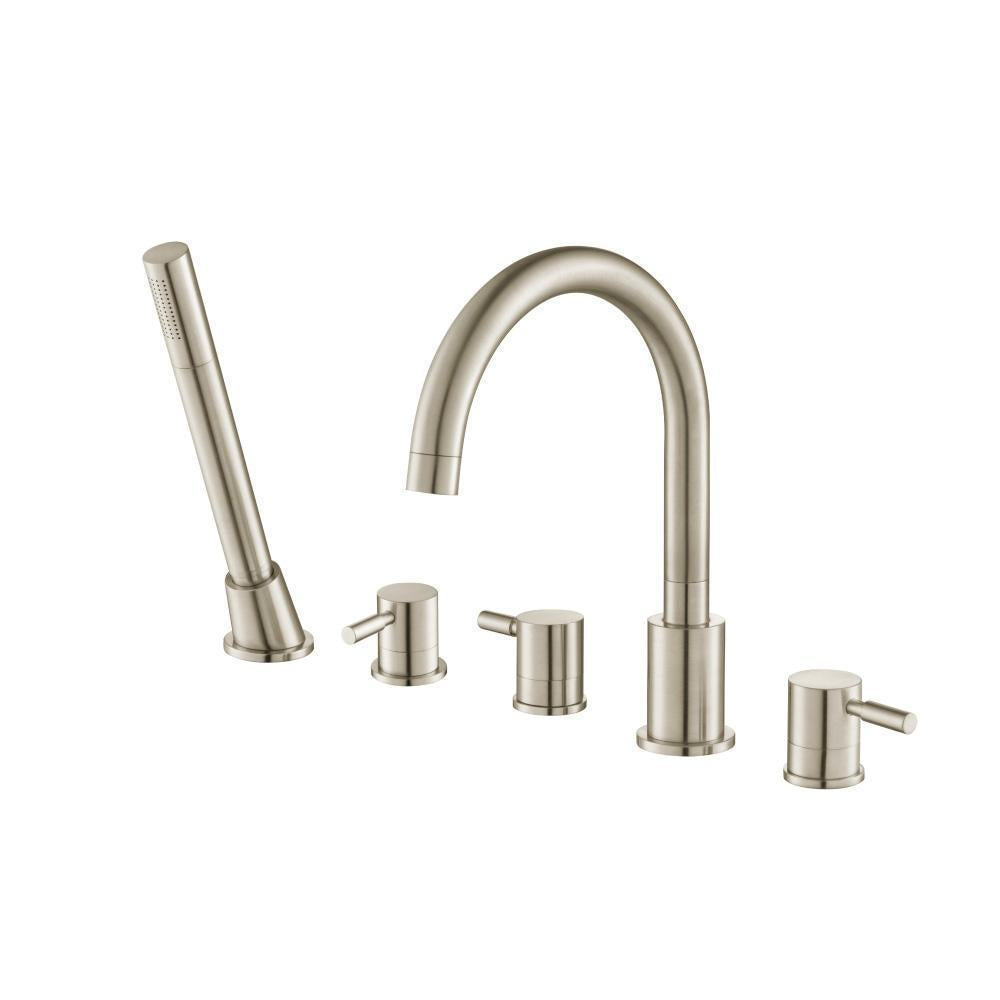

Flusso 100.2420 Five Hole Deck Mounted Roman Tub Faucet With Hand Shower

Flusso’s Five Hole Deck Mount Bathtub faucets have a separate hot and cold handle with a hand shower and hose. The deck diverter handle can be used to switch the water flow between the hand shower and tub spout. These products are installed on the deck next to the edge of the bathtub, with 5 drilled holes that are each about 4 inches apart each. The faucet body and handles are all separate pieces with valves concealed under the tub.

ADA COMPLIANCE: This 5 Hole Deck Mount Roman Tub Faucet from Flusso Faucets is ADA Compliant.

DECK HOLE SIZE: All 5 Hole Deck Mount Roman Tub Faucets from Flusso Faucets fit into the universal deck hole size of 1 ??.

CRITICAL DIMENSIONS: Critical dimensions for Five Hole Roman Tub faucets include the height and spout reach. Reviewing this information will ensure that when it is used with the chosen tub, splash is minimized.

Collection	Serie 100
Style	Contemporary / Modern
Warranty	Limited Lifetime Warranty. See Warranty page for complete details.

Features:

• Solid Brass Construction
• Five Hole Installation
• Hand Shower Flow Rate Limited to 1.8 GPM
• Deck Diverter controls flow between Spout and Hand Held
• Includes backflow prevention check valve
• Requires under deck access for cartridge and spout swap out

Specifications

Installation Type	Deck Mounted
Holes Required	5
Max Deck Thickness	3 cm
Material	Brass
Cartridge Type	Ceramic Disc
Deck Hole Size	1 ?"
Hand Shower Check Valve	Included
Hand Shower Back Flow Prevention	Included
Hand Shower Spray Functions	Single
Flow Rate	8.0 GPM @ 60 PSI

Spec Sheet

Parts Diagram

Installation Docs

Installation Video
